1510L Dry Cabinet

Overview

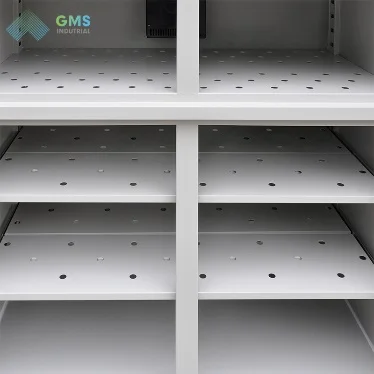

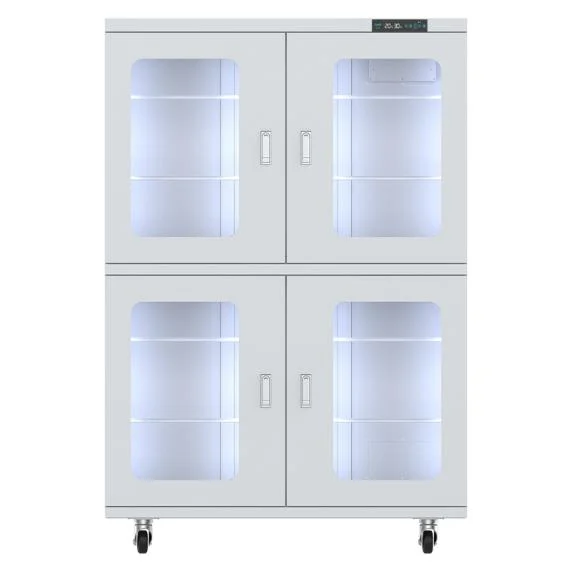

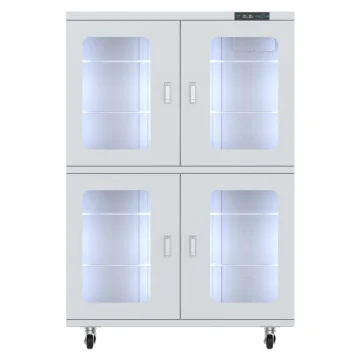

1510L Dry Cabinet (Product Name: Drying Cabinet (GZ-1510S)) is a floor-standing controlled-humidity storage cabinet with 1510L internal capacity designed to maintain very low relative humidity for moisture-sensitive materials. The cabinet is constructed from cold-rolled steel plate with durable gray coating and includes a heat-free LED cold light lamp installed in side for clear observation. Key technical specifications: - Capacity: 1510L - Relative Humidity Range: Below 5%RH - Sensor and accuracy: ±3%RH, ±1ºC (Imported Swiss Sensirion ultra-sensitive temperature and humidity sensor) - Control panel/display: Using a new LCD display; the temperature and humidity values are accurate to ±1, and the temperature and humidity are displayed independently. - Drying unit: Maintenance-free drying unit applying physical adsorption method to decrease the humidity. - Shelving: 5 (Adjustable and movable), max. load 50kg/layer - Power and electrical: Voltage: 100-130V / 220-240V Optional Available; Power Consumption: Max. 550W/h, Ave. 45 W/h - Physical and service data: Weight 175KG; External Size W1190*D690*H1960(mm) / W46.85*D27.17*H77.17(in); Internal Size W1140*D660*H1800(mm) / W44.88*D25.98*H70.87(in) - Certification: https://ecdn6-nc.globalso.com/upload/p/1415/image_other/2025-10/20-1.png The cabinet is intended for industrial-scale storage and handling of moisture-sensitive materials that require sustained low-humidity conditions (below 5%RH), such as electronic components, precision optical parts, hygroscopic chemicals, and production fixtures in manufacturing and R&D facilities. Its 1510L capacity and five adjustable shelves allow organized staging of reels, trays, boxes, or fixtures while supporting up to 50kg per layer. Operational considerations and configuration effects: install where mains supply matches the selected voltage option (100-130V or 220-240V) and allow floor space for the external footprint W1190*D690*H1960(mm). The maintenance-free physical adsorption drying unit reduces routine servicing compared with desiccant systems; the LCD display with Swiss Sensirion sensing provides independent temperature and humidity readouts for process control and inventory audits. The cabinet’s steel construction and internal lighting support routine production handling and visual inspection without opening the doors for extended periods.
