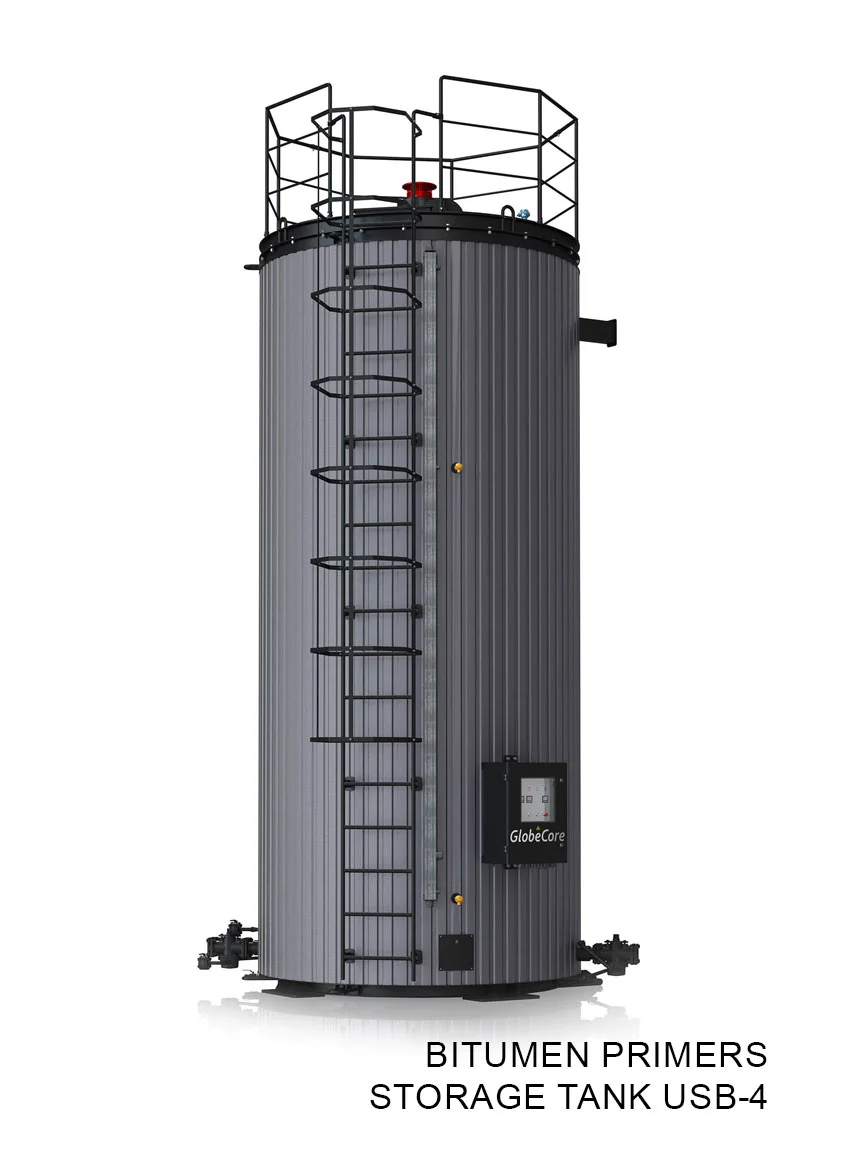

Bitumen primers storage tank USB-4

Overview

The USB-4 bitumen primers storage tank by GlobeCore is described as intended for storing and transporting bitumen mixtures used in road construction and other industries. Two variants are listed: USB-4 (15) and USB-4 (30). Minimum total volume is 16 m3 for USB-4 (15) and 33 m3 for USB-4 (30); minimum usable volume is 15 m3 and 30 m3 respectively. Both variants use a Vane agitator; agitator RPM is 36 for USB-4 (15) and 400 for USB-4 (30). The heat exchanger square area is 18 m2 for USB-4 (30). Insulation thickness is 200 mm for both variants. Nominal power is 11.3 kW for USB-4 (15) and 30 kW for USB-4 (30). Electric supply parameters listed are 380 V and 50 Hz. Dimensions (L/W/H) are 3250/2500/7200 mm for USB-4 (15) and 2440/2400/12500 mm for USB-4 (30). Maximum weight is 3800 kg for USB-4 (15) and 11000 kg for USB-4 (30); maximum full loaded weight is 18800 kg and 41000 kg respectively. The CSV description states the USB-4 is for storing and transporting bitumen mixtures used in road construction and other industries. It is described as designed to hold and store bituminous primers effectively to prevent damage or changes in their properties, and it includes control systems for monitoring level and temperature. The unit is presented as providing reliable, safe and convenient storage of bituminous materials while helping to make production processes more efficient and maintain material quality.
