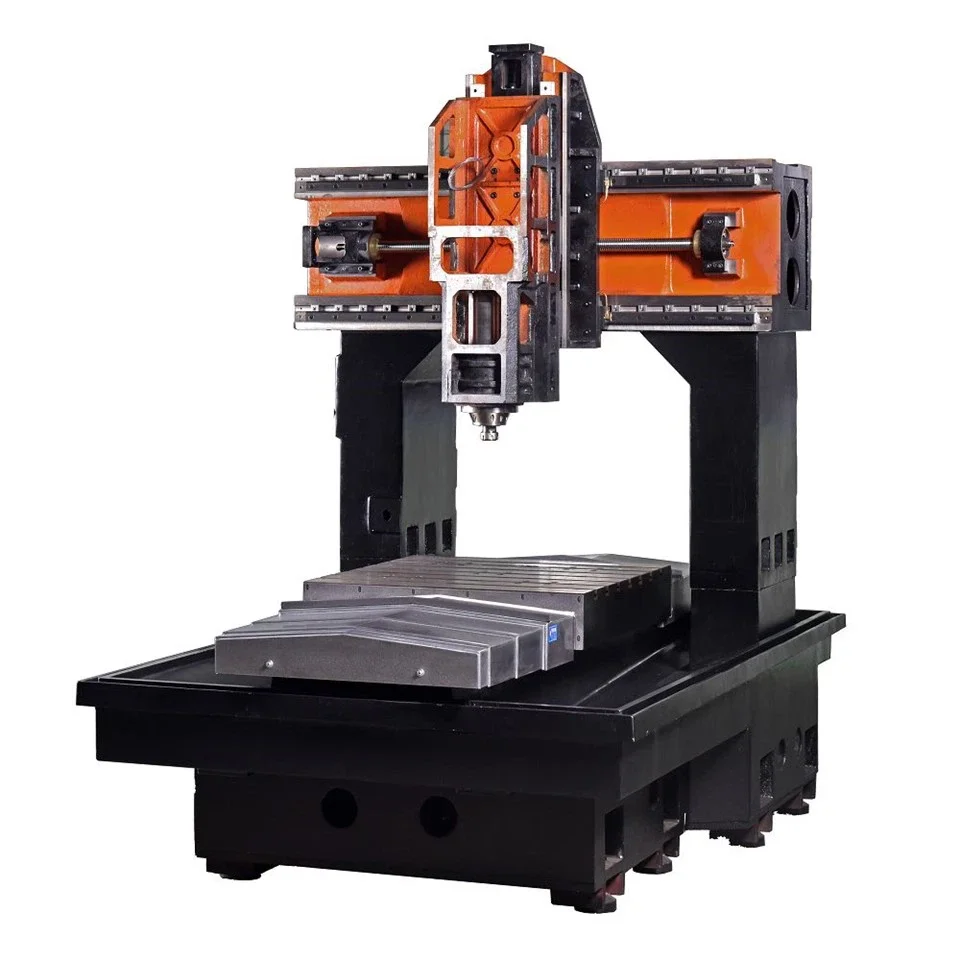

Horizontal CNC Engraving Machine

Overview

The Horizontal CNC Engraving Machine performs CNC engraving on workpieces in the horizontal direction and is composed of machine body, CNC system, tool system, cutting fluid system, auxiliary devices and other components. The control system consists of programming software, central processing unit, input and output devices, and typically uses touch screens or computer interfaces for operation. Key hardware features include a horizontal design optimized for stable, large-scale engraving with reduced vibration, high-speed spindle options delivering smooth, burr-free finishes at up to 24,000 RPM, and a rotary axis option. Structural components listed include bed, worktable, spindle box, tools and tool devices, a cutting fluid system for cooling and lubrication, and auxiliary equipment such as fixtures, sensing elements and measuring tools. The system supports advanced multi-axis control, achieves micrometer level engraving accuracy, and adopting automated processing methods can significantly improve production efficiency and reduce production costs; maintenance actions include cleaning, inspecting and replacing worn parts, adjusting machine parameters, and lubricating and maintaining the cooling system. The machine is described for precision engraving on flat, cylindrical, and irregular surfaces and is suitable for metal, wood, plastics, and composites. Product text explicitly lists applications such as industrial part marking, artistic designs, custom signage, mold manufacturing, advertising production, handicraft processing and furniture manufacturing. The rotary axis option explicitly enables cylindrical engraving for pipes, rods, and curved surfaces.
