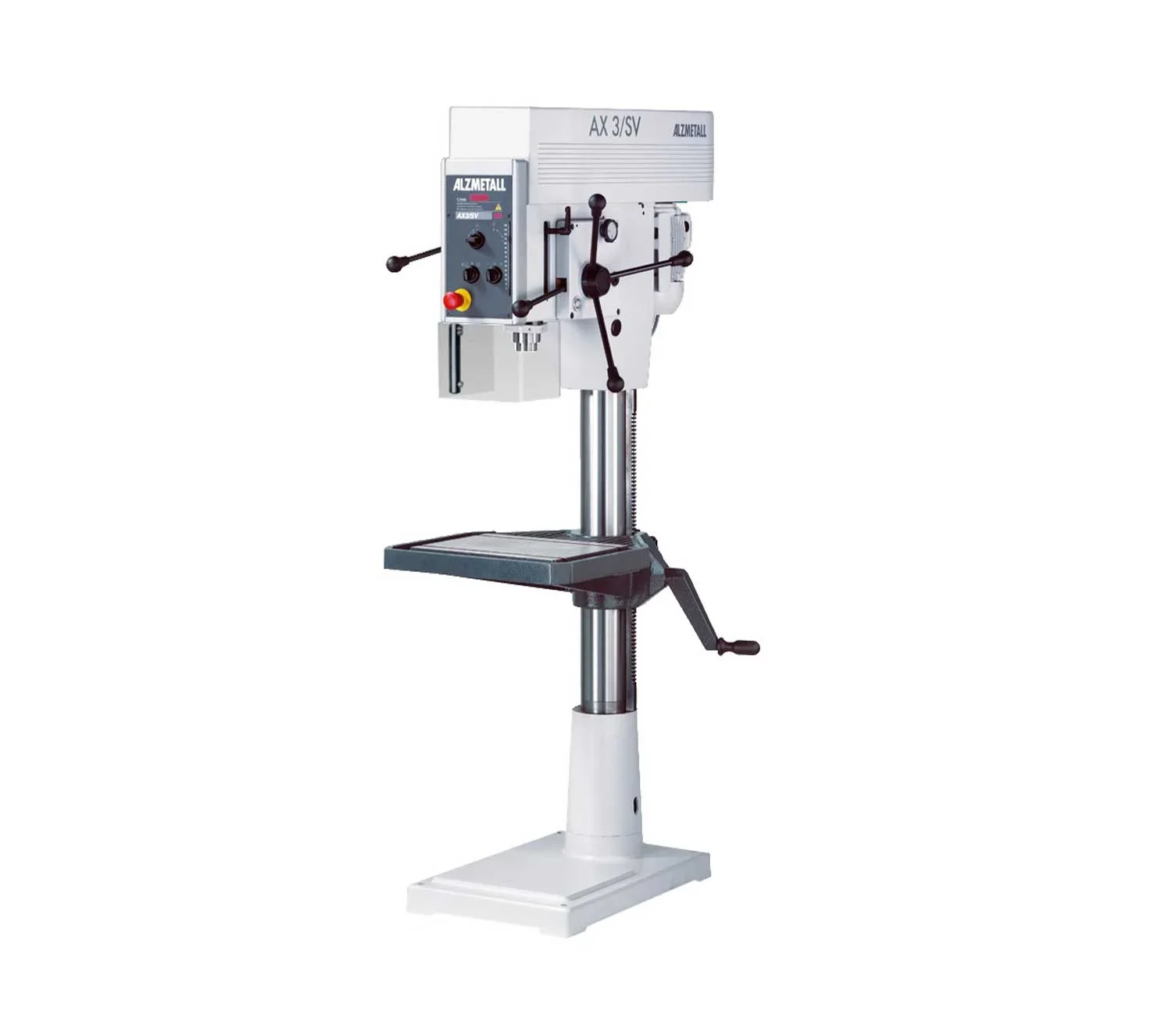

AX 3/SV

Overview

AX 3/SV is a column drilling machine; the product variant is listed as AX 3 iTRONIC-V. Drilling capacity in steel E335 (St 60) is 40 mm; tapping performance in steel E335 (St 60) is M 24; spindle, short: MT 3. Key dimensions: distance spindle to column 293 mm; table clamping area 515 x 360 mm; distance spindle - table min./max. 117 / 701 mm; column diameter 115 mm; Z-travel of spindle 120 mm. Drive and speeds: Feed: automatic; Power [kW]: 1,0 / 1,6; Power 2 [U/MIN-1]: 1,45 / 1,9; Motor 1 [MIN-1]: 750 / 1500; Motor 2 [MIN-1]: 1500-3000; Spindle Rpm range | Option 1 [U/MIN-1]: 80 – 1125; Spindle Rpm range | Option 2 [U/MIN-1]: 160 – 2250; Touchscreen: No. Standard equipment includes: - Main switch (lockable) with Overload Protection Switch - Motor heat-protected - Self-Locking Mushroom Button for Emergency-Off - Infinitely variable speed drive, mechanical variator - Digital RPM Read-out - Feed overload clutch - Motor Isolation Class “F” (155′) - Connection terminal in the electrics cabinet. Without cable. - Cable w/o plug, 2m - Protection class IP 54 - Spindle protection electrically secured - Lacquer; DD-structured signal white RAL 9003, PANTONE 7545c, black - Machine oil. The manufacturer describes the machine as suitable for continuous long-term operation. It is specified for drilling up to 40 mm in steel E335 (St 60) and for tapping up to M 24, with automatic feed. The product description lists vibration damping, high running smoothness, an infinitely variable speed adjustment via a variator disc system, a one-piece cast drill head, and a thick-walled quill of high-quality gray cast iron.
