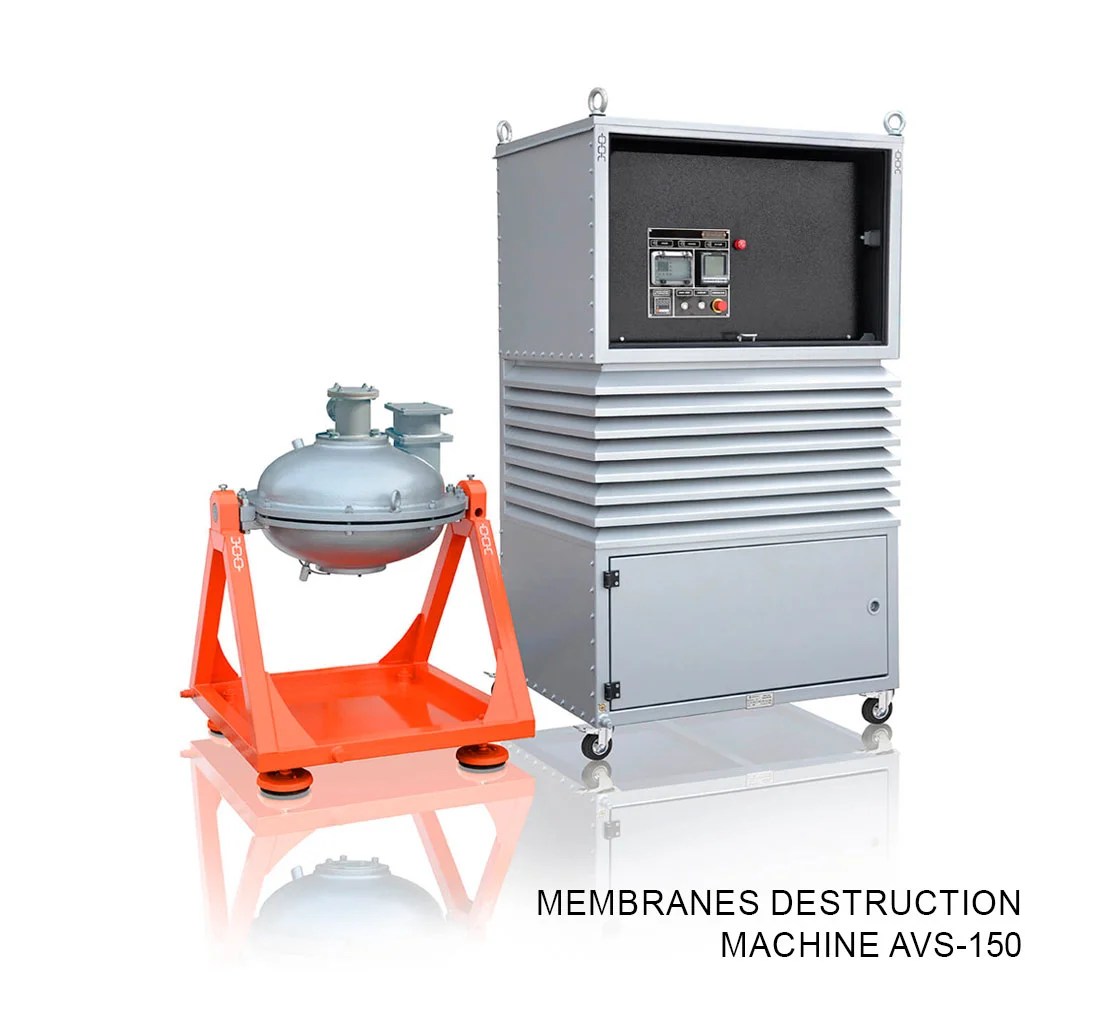

Membranes destruction machine AVS-150

Overview

The AVS-150 membranes destruction machine, manufactured by Globecore, has been engineered for the effective destruction of cell envelopes (membranes) in biological materials. The principle of operation is electromagnetic processing, in which intense vortex currents are created in the working area, producing a mechanical effect on cells and enabling rapid and effective destruction of membranes without overheating and loss of activity of biologically active substances. Specifications: - Max processing rate, m3/hour — water treatment: 30; suspension production: 15. - Operating pressure, MPa (kg/cm2), max: 0,25 (2,5). - Work zone diameter, mm: 136. - Magnetic induction in work zone, T: 0,15. - Electric supply: From AC network; Frequency, Hz: 50; Voltage, V: 380. - Rotation of magnetic field in work area, RPM: 3 000; Power consumption, kW: 9,5. - Dimensions, mm - unit - control panel: 1300×1100×1 690 and 1 060×1 030×1 900. - Weight, kg - unit - control panel: 500 and 450. The AVS-150 is utilised in biotechnology, pharmaceuticals, the food industry and scientific research for destruction of cell envelopes and extraction of cellular contents. It provides a high degree of disintegration suitable for work with microorganisms, plant and animal tissues. The unit can be used to accelerate the production of extracts, improve the yield of target substances and increase overall production efficiency.
