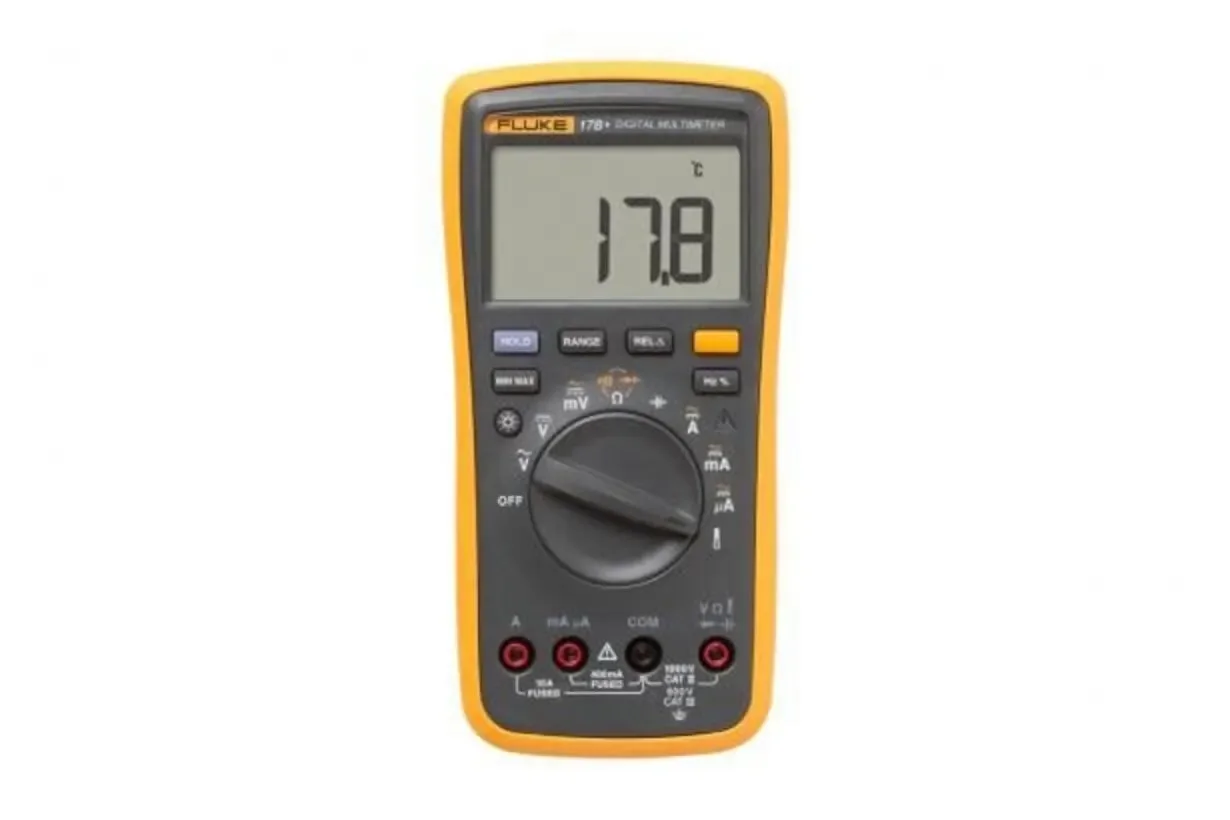

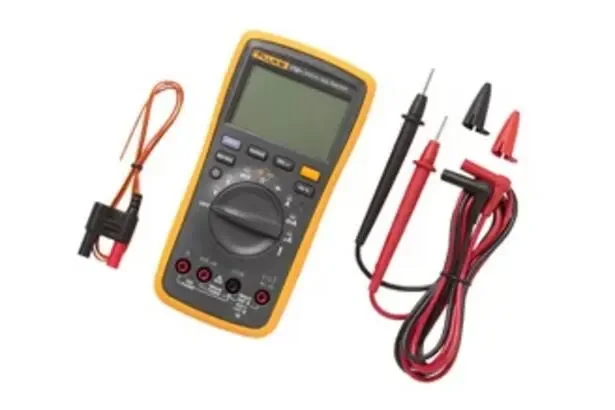

Fluke 17B+ Digital Multimeter

Overview

Handheld digital multimeter offering 4000-count LCD readout (updates 3/sec) in a 183 x 91 x 49.5 mm housing and weighing 455 g. Power is supplied by 2 AA batteries (NEDA 15A, IEC LR6) with a minimum battery life of 500 hours; backlight is provided for low-light work. Environmental and mechanical ratings: IP 40, operating temperature 0 °C to 40 °C, storage temperature -30 °C to 60 °C, operating altitude 2000 m, storage altitude 12,000 m, and specified relative humidity limits (non-condensing; ≤90% RH at 10 °C to 30 °C; ≤75% RH at 30 °C to 40 °C on most ranges, with alternate RH limits for certain ranges listed by the manufacturer). Designed for industrial electrical troubleshooting, maintenance, and panel/field service where voltage, current, resistance, frequency and basic component tests are required with traceable accuracy. Measurement capabilities include DC volts to 1000 V (0.5% + 3), AC volts (40 Hz–500 Hz) to 1000 V (1.0% + 3), resistance to 40.00 MΩ (accuracy down to 0.5% + 2 on many ranges), AC and DC current ranges to 10.00 A (1.5% + 3), frequency to 100.0 kHz (0.1% + 3), capacitance to 1000 μF, diode test and temperature measurement ranges as specified. Safety and service-relevant items important for plant use: IEC 61010-1 and IEC61010-2-030 compliance, CAT III 600 V rating, Pollution Degree 2, maximum voltage between any terminal and earth ground 1000 V, and current-input protection implemented by manufacturer-specified fast fuses (440 mA, 1000 V and 11A, 1000 V fast fuses). The meter’s Class A EMC designation and IP40 rating indicate suitability for industrial and business environments (indoor use); replace current-input fuses only with the Fluke specified parts for continued protection.
