Jobs Jomax

Overview

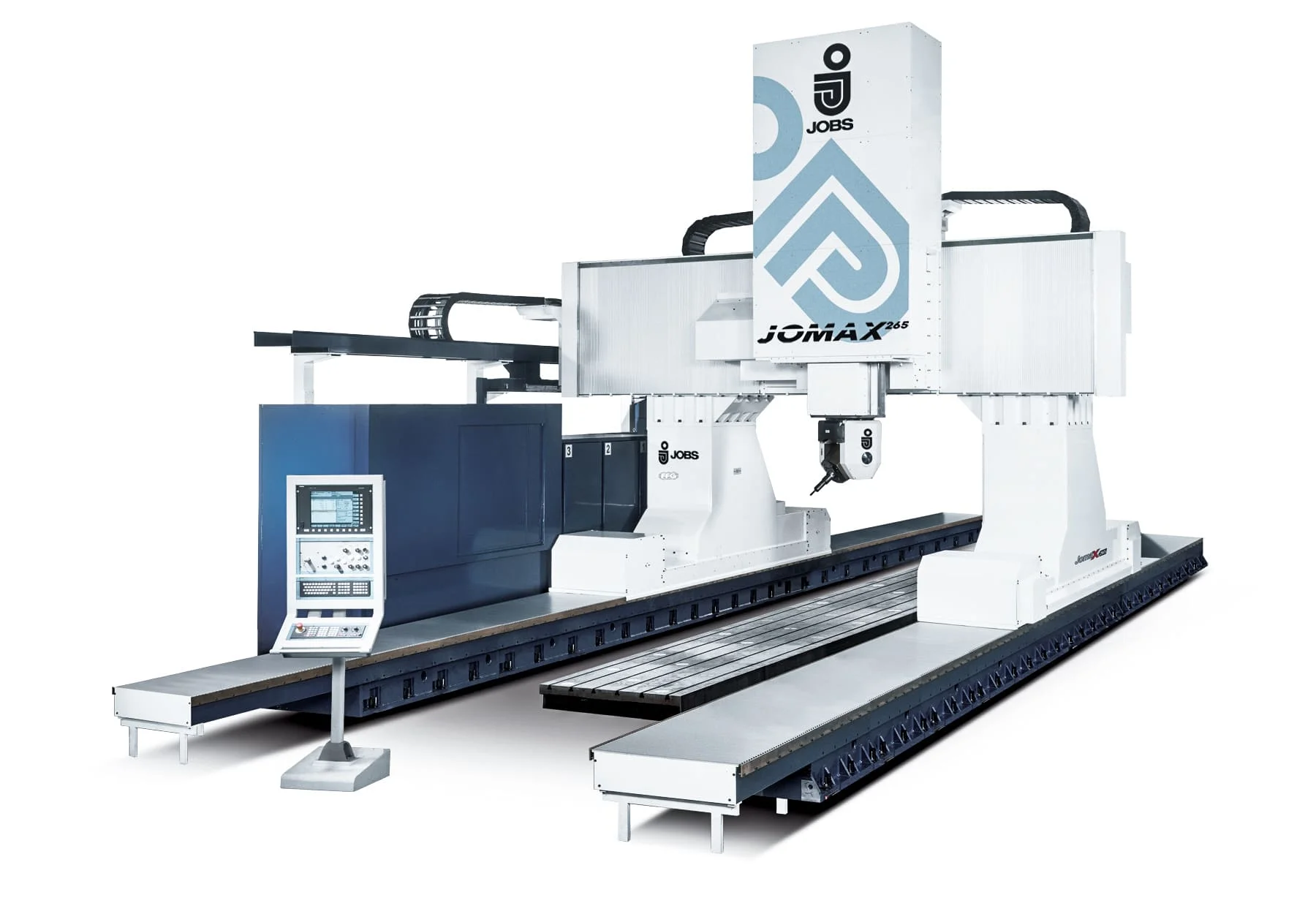

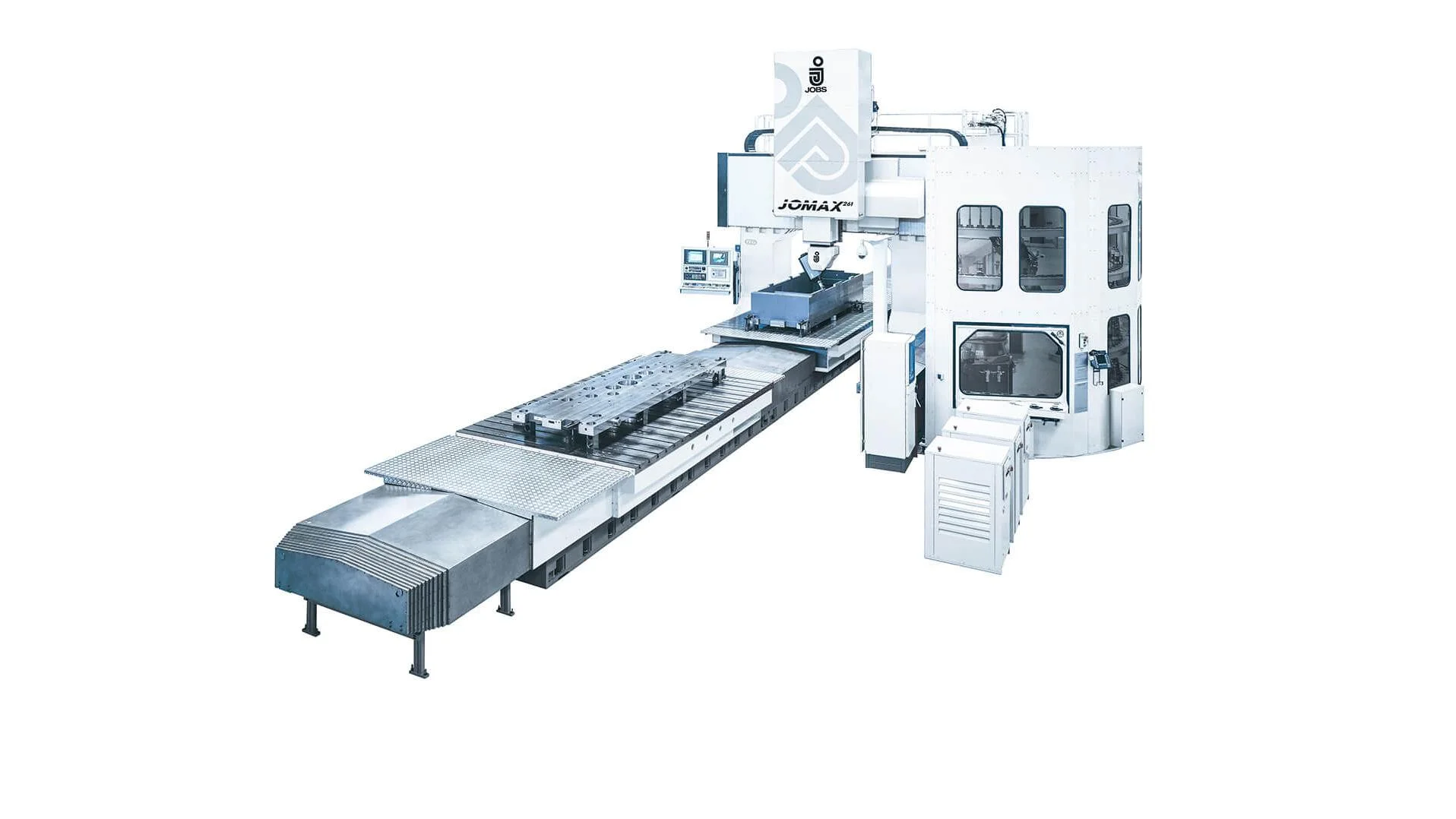

Jobs Jomax are high-performance milling centers available in horizontal and vertical versions and designed for machining on 3/3+2/4/5 axes. The series includes milling center models with a traveling table, a movable gantry and a traveling column and comprises heavy duty machines. Jobs Jomax machines offer a high chipping capacity (up to 75 kW) and high dynamic acceleration and speed (up to 32 m/min). The X/Y/Z axes use preloaded rollers on highly rigid guides and measuring systems using linear scales with very high resolution, and operator stations are ergonomic for safe monitoring with direct access; X- and Y-axes are protected by roller shutters (accessible for the X-axis). Configuration options include pallet systems, connections between multiple machines, tool changing systems with up to 400 tools and milling heads with an automatic changing system (BUSS) for complete machining from roughing to finishing on a single machine. Specific models named in the series are Jobs Jomax 261 (double-column milling machine with movable table), Jobs Jomax 265 (gantry milling machine) and Jobs Jomax 265 W (gantry milling center with moving crossbeam). Jobs Jomax milling centers were developed for machining parts in general engineering, the energy sector and heavy mechanical engineering, with a focus on form machining using large form holders and tools. The series is intended for intensive machining of large structural parts made of titanium. Explicit application examples include versatile high-performance machining in foundries with an optional head change system, flexible machining of large, bulky parts for construction equipment, and precision machining of engine parts, tools and molds for truck manufacturers and suppliers. Other stated uses are precise and efficient machining of parts for printing machines in general engineering and machining propeller blades for passenger ships.
