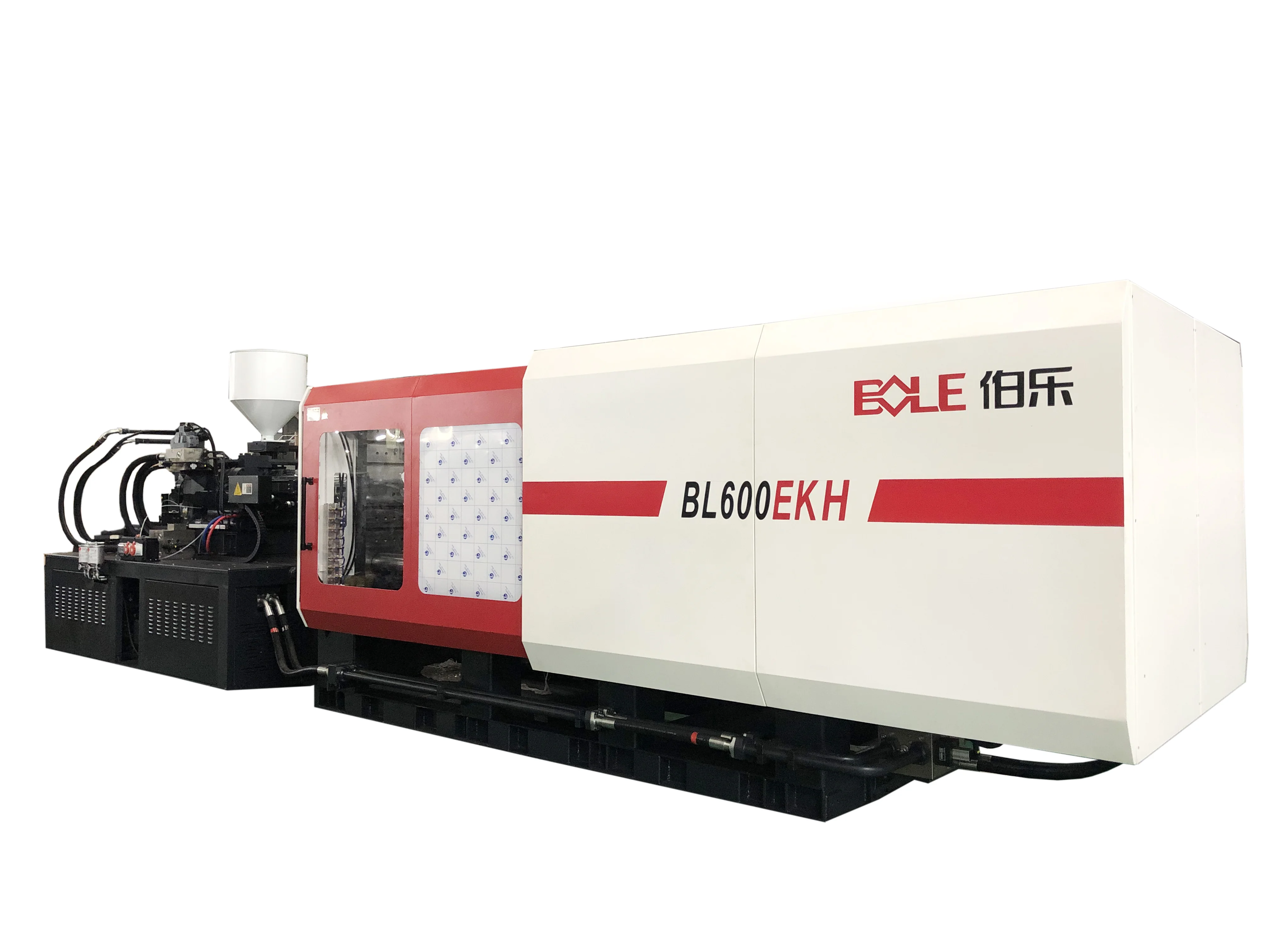

Plastic shoes making machine BL600EKH

Overview

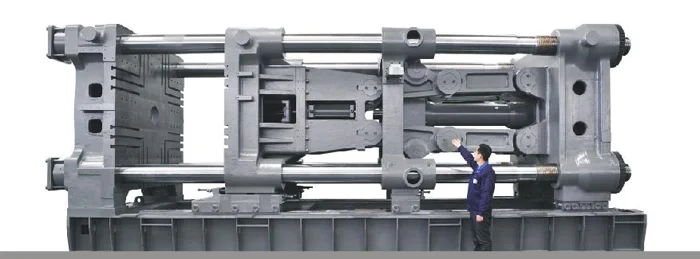

Model BL600EKH is produced by Bole Machinery and originates from Zhejiang, China. It is a horizontal, computerized, automatic Preform Injection machine for thermoplastic materials with screw-type plasticizing and hydraulic & mechanical clamping, certified by SGS. The machine is marketed as a 600 ton plastic shoes making machine and its rated clamping force is 6000 kN. Bole describes a central locking toggle (centre clamping) structure delivering 100% clamping force use, 10%-20% higher efficiency than traditional toggle structures, less possibility of flash, 2%-5% material savings, protection for moulds, platens and tie bars, and an opening stroke 10-20% longer. Key processing specifications include screw diameter (mm): 80 | 90 | 100; Screw L/D ratio: 24 | 21 | 19; Theoretical injection capacity (cm3): 2286 | 2893 | 3572; Shot weight(PS) (g): 2103 | 2662 | 3286; Shot weight (oz): 74.3 | 94.1 | 116.1; Injection rate into Air (cm^3/s): 619 | 783 | 967; Injection rate into Air (g/S): 563 | 713 | 880; Injection pressure (MPa): 206 | 163 | 132; Theoretical plasticizing speed (g/S (PS)): 88 | 121 | 155. Additional mechanical and utility specifications: Injectionstroke (mm): 455; Max. injection speed (mm/s): 123; Screw speed (r/min): 153; Sys. Pressure (MPa): 17.5; Pump Motor(Min〜Max) (kW): 67.1〜73.2; number of Motors (PCS): 2; Pre-plastic motor power: Optional; Heater power (kW): 36.1; Number of temp. control zones: 5+1; Opening stroke (mm): 900; Space between tie bar (mm x mm): 910×855; Min. mould height (mm): 380; Max. mould height (mm): 910; Max. Daylight (mm): 1810; Ejector stroke (mm): 220; Ejector force forward (kN): 123; Ejector force back (kN): 82; Number of ejector bar (PC): 21. Operational and facility data: Dry Cycle Time (S): 4.4; Energy consumption level (kW.h/kg): ≤0.4 (level 1); Hopper capacity (kg): 100; Oil tank capacity (L): 750; Machine dimensions(L×W×H) (m x m x m): 9.1x2.2x2.9; Machine weight (Ton): 22. The BL600EKH is presented and sold as a plastic shoes making machine, with client cases referenced as plastic shoes making machine. It is configured for Preform Injection of thermoplastic materials, indicating its use for injection molding tasks involving thermoplastic preforms.
