S 120

Overview

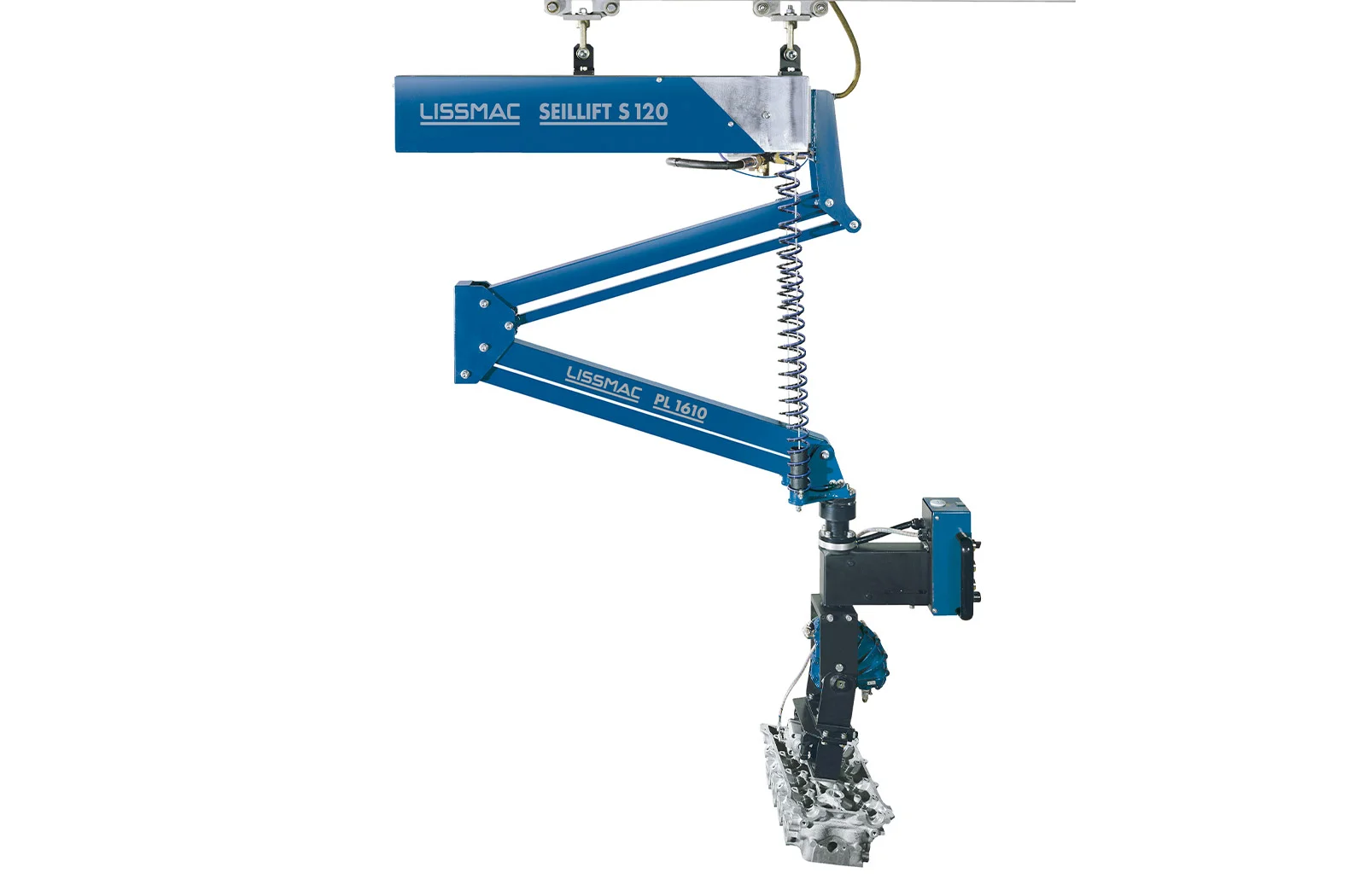

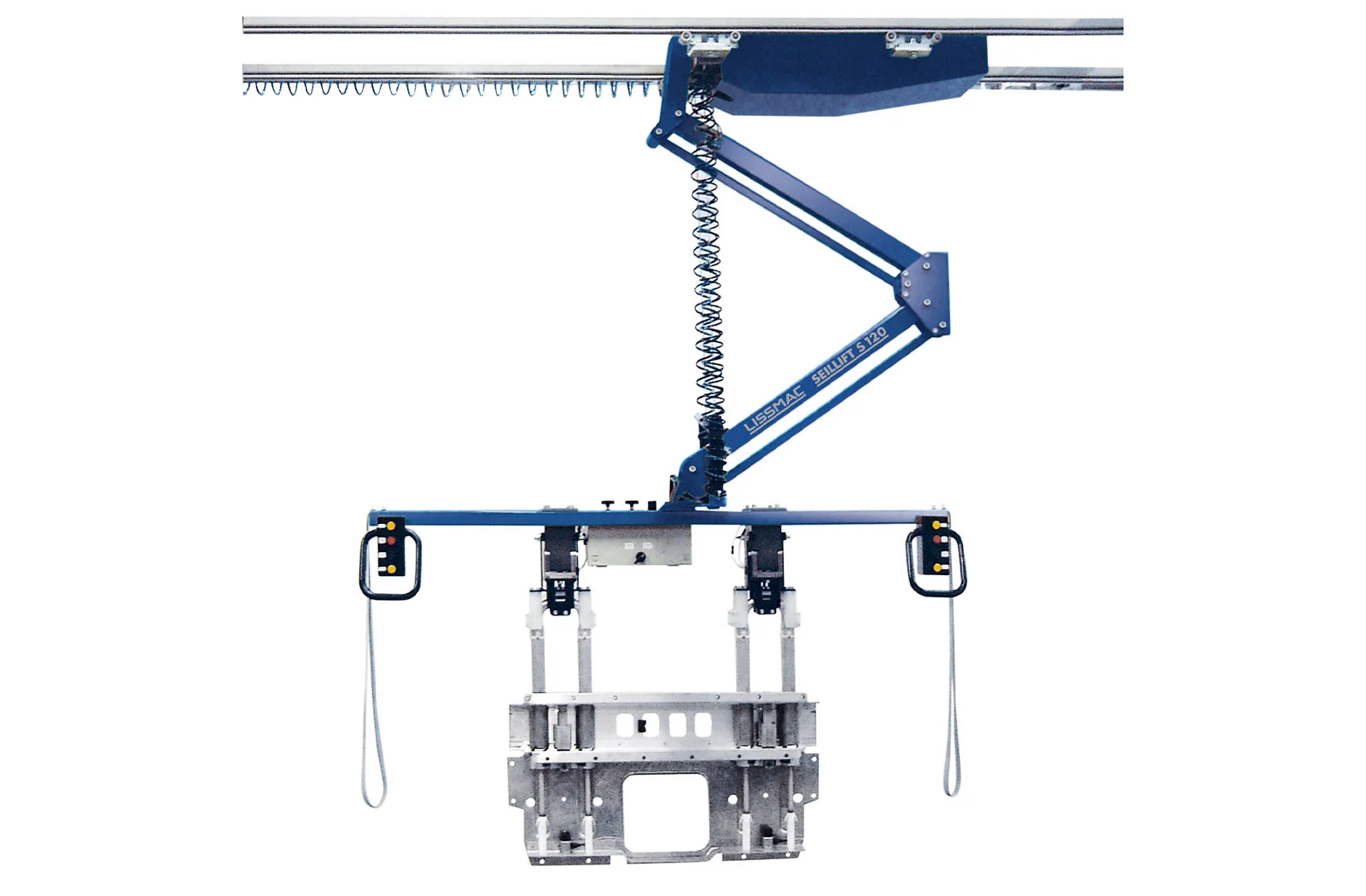

The S 120 combines a cable lift with the POSILENK system and uses the patented POSILENK PL 1610 and PL 2430 lifting systems. Loads of up to 120 kg can be moved and positioned virtually weightless around the room, and LISSMAC cable lift systems are stated to belong to the fastest manual handling equipment available on the market. The unit provides automatic weight counterbalance and a hoisting/lowering function for absolutely load-free handling. Design features include low construction height suitable for low rooms and extensive safety devices. Key technical data: hoisting height 1600 mm; design height of machine 180 mm; pivot joint 320 °; drive pneumatic; hoisting speed 0-30 m/min.; min. operating pressure 6 bar; air consumption / Max. double stroke 24 NL; noise level < 78 dB (A); ambient temperature -15 to +70 °C; dead weight 48 kg (pivot joint: 4 kg). The S 120 is intended for handling tasks where work must be performed in very low rooms or underneath projecting edges. It can expand its working area when used with rail systems or slewing cranes and is described as suitable for multifarious applications. The product is presented as supporting increased productivity, ergonomic and easy operability, precise smooth positioning, and weightless handling through automatic weight counterbalance.
