CNC Milling Machine XK715

Overview

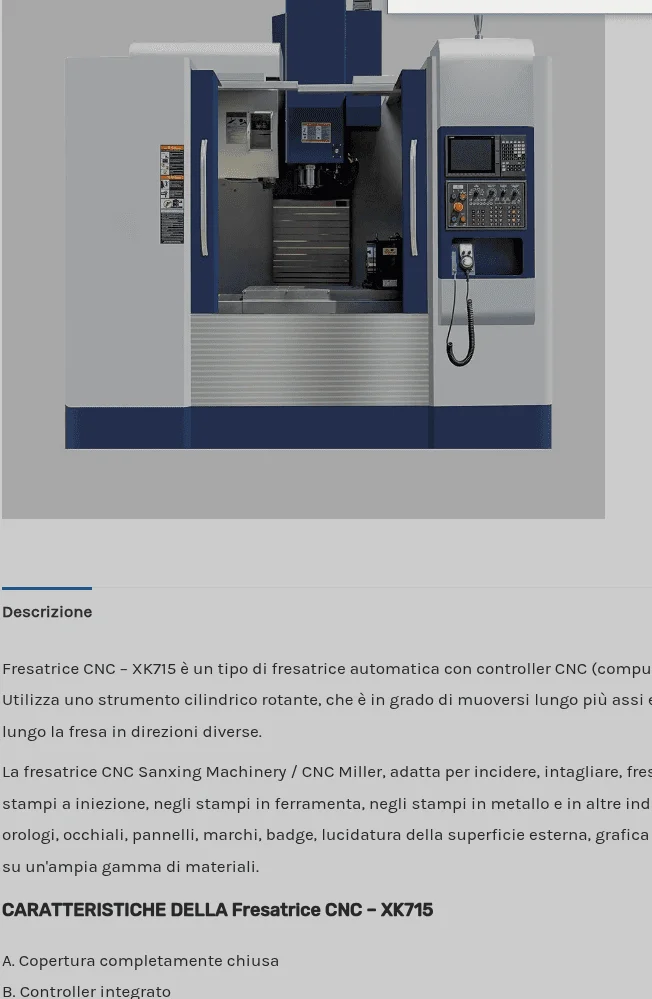

Fresatrice CNC XK715 is an automatic milling machine with a CNC controller, model series XK/XH, brand Sanxing Machinery. Condition: new; Place of origin: Jiangsu, China; Payment: TT/LC; MOQ: 1 SET. The machine is described as able to mill 2D/3D shapes or patterns on various materials using a rotating cylindrical tool that can move along multiple axes, and the workpiece is often moved relative to the cutter. Key stated features include: A. Fully enclosed cover; B. Integrated controller; C. Servomotors; D. Tool magazine; E. With FANUC control system; F. Automatic lubrication system; G. HIWIN/PMI roller linear guide; H. HIWIN/PMI ball screw; I. FAG bearings; J. Tool Magazine OKADA/Aimach. Selected technical specifications provided: Table dimensions: 1000d7e5500 mm; Maximum table load: 500 kg; T-slots: 18Tx100x5 mm. Travels: X 800 mm, Y 500 mm, Z 500 mm; distance between spindle nose and table 125-625 mm. Spindle taper: BT40; drive mode: Belt/Straight; spindle speed options: 8000/10000/12000/15000 rpm. Spindle motor power: 7.5 kW; axis motors: 2002/2/3 kW; rapid feed X/Y/Z: 48 m/min. Ball screw (X/Y/Z): c40xP16 mm; linear guide widths X/Y/Z: 35 (4 sliding blocks). ATC: tool storage capacity 24 T; max tool outer diameter 80 mm; max tool diameter Rinku 120 mm; max tool length 200 mm; max tool weight 8 kg; tool change time: 2 sez. Positioning accuracy: 0.003/300 mm; repeatability: 0.003/300 mm. Machine dimensions: 2700d7e52400<br>x2500 mm; net weight: 5200 kg. Delivery time: 30~45 days after order confirmation. Warranty: one year; stated after-sales services include online technical support, documentation and on-site training, operation videos, spare-parts replacement and repair, and 24-hour response to enquiries. The XK715 is described as suitable for milling 2D/3D shapes or patterns and for engraving, carving, milling, cutting and drilling most materials. Optional configurations listed include alternative control systems, a 4th rotary table (4th axis), different spindle speed options, and different types and capacities of tool magazines.
