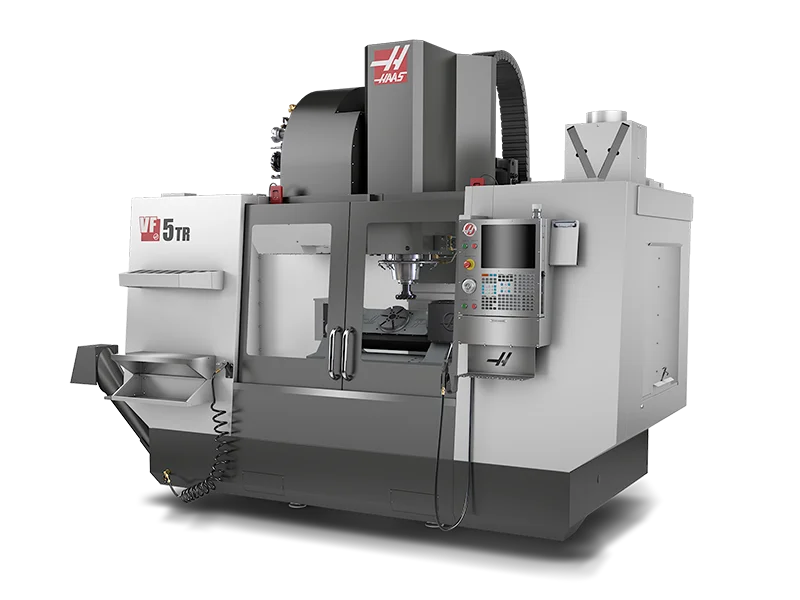

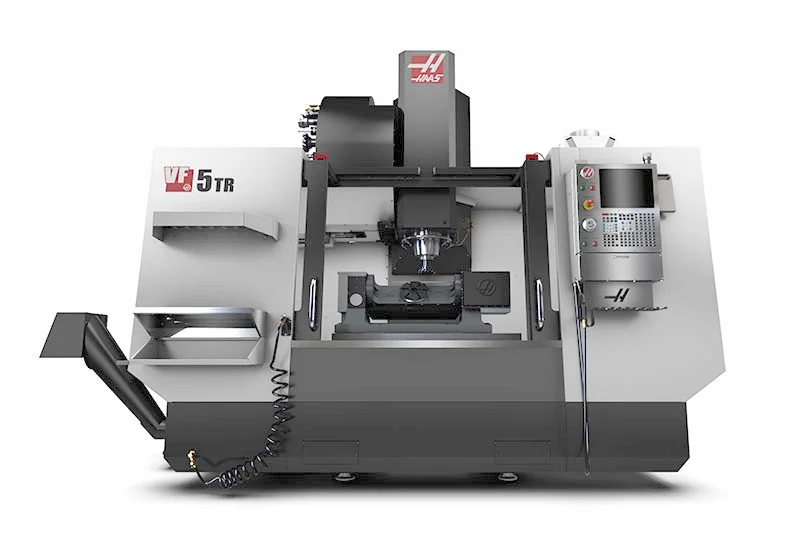

VF-5/50TR

Overview

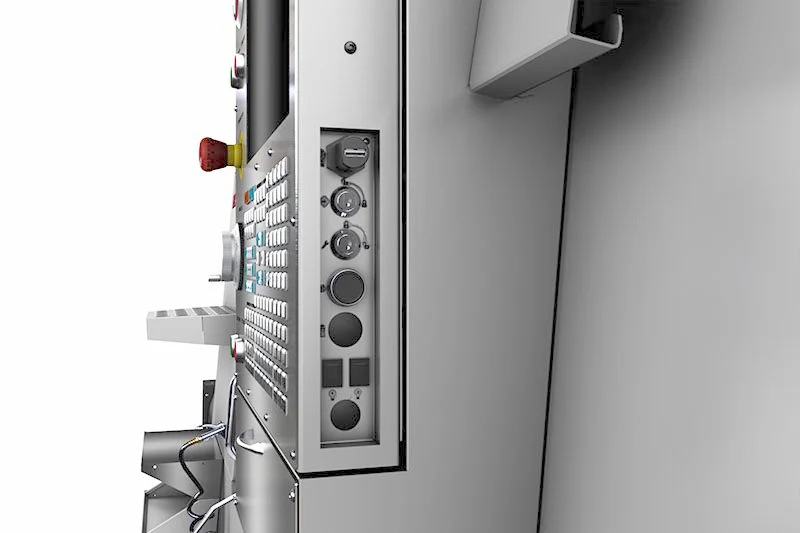

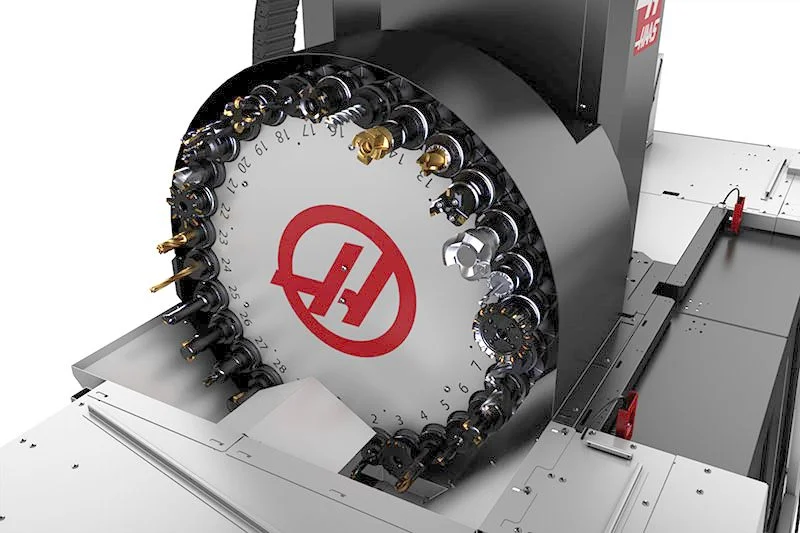

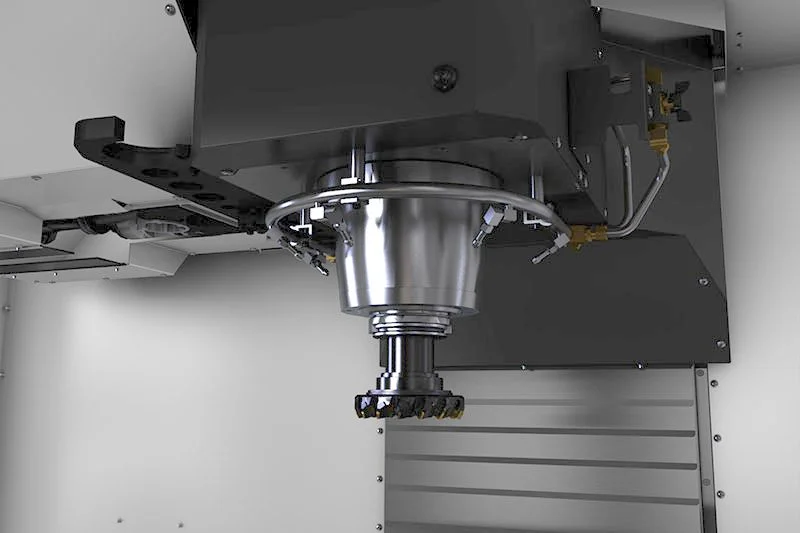

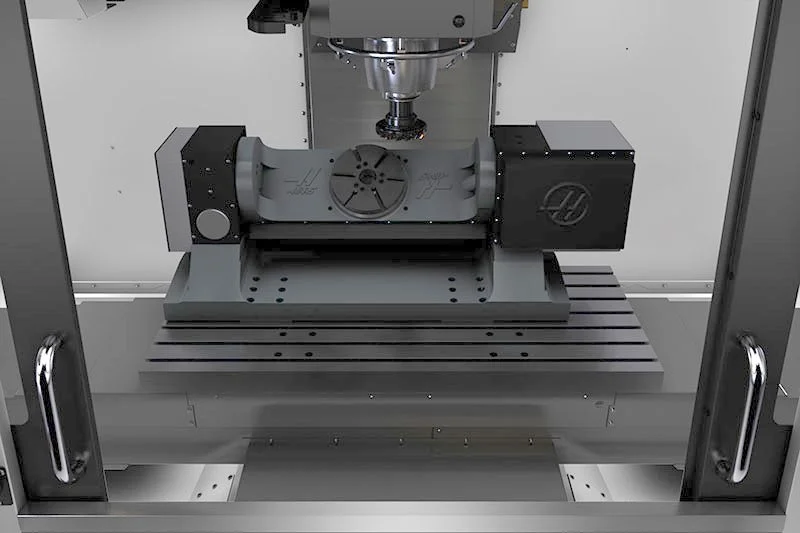

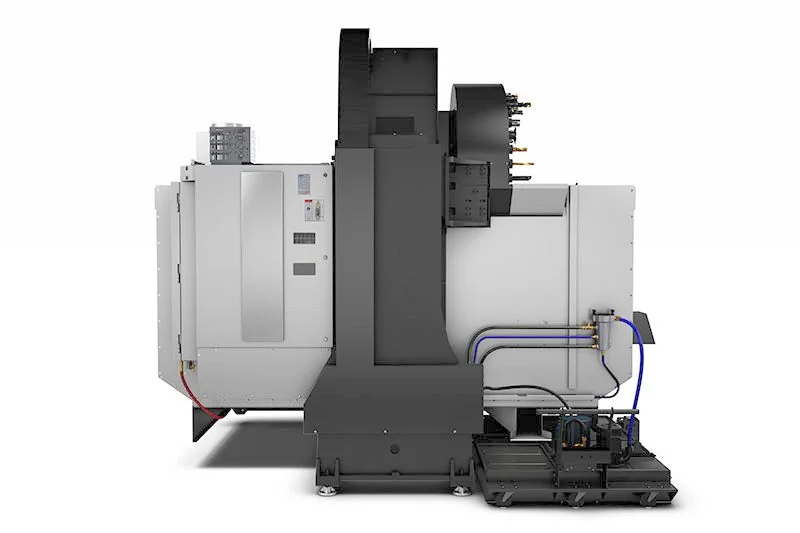

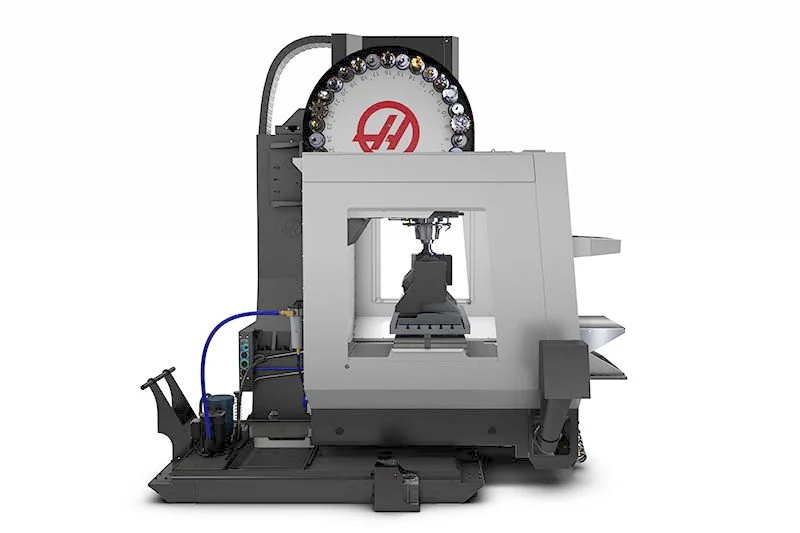

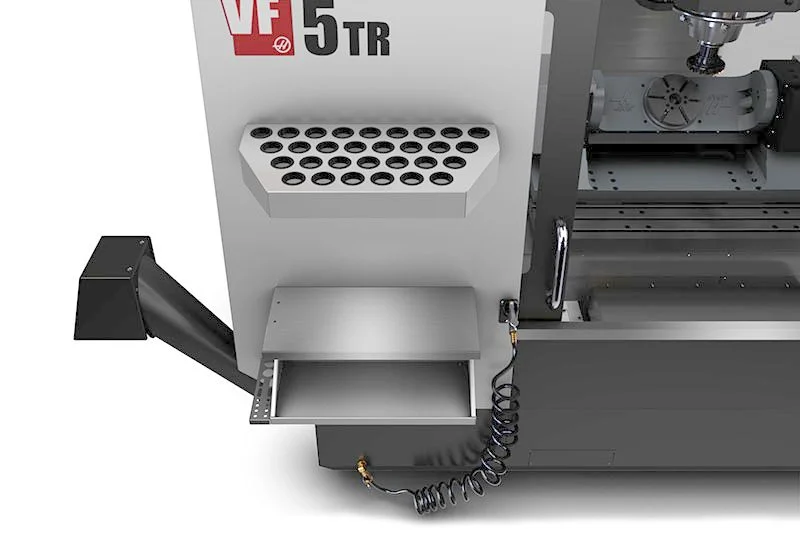

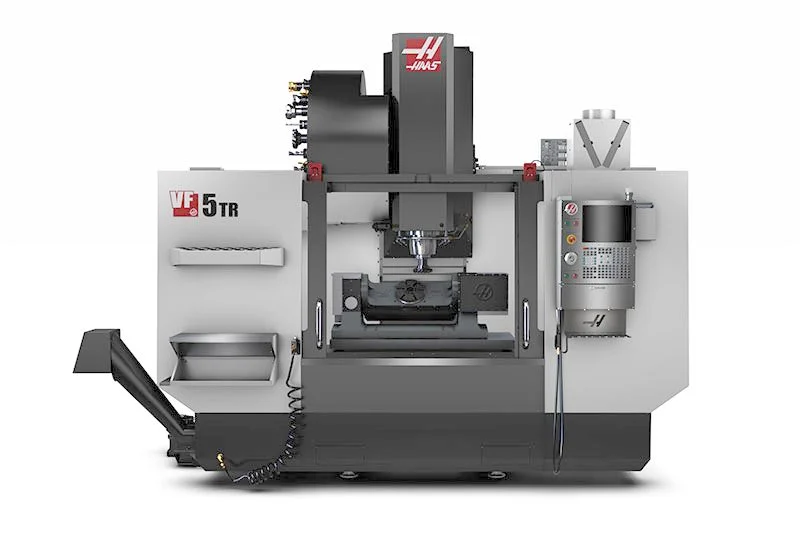

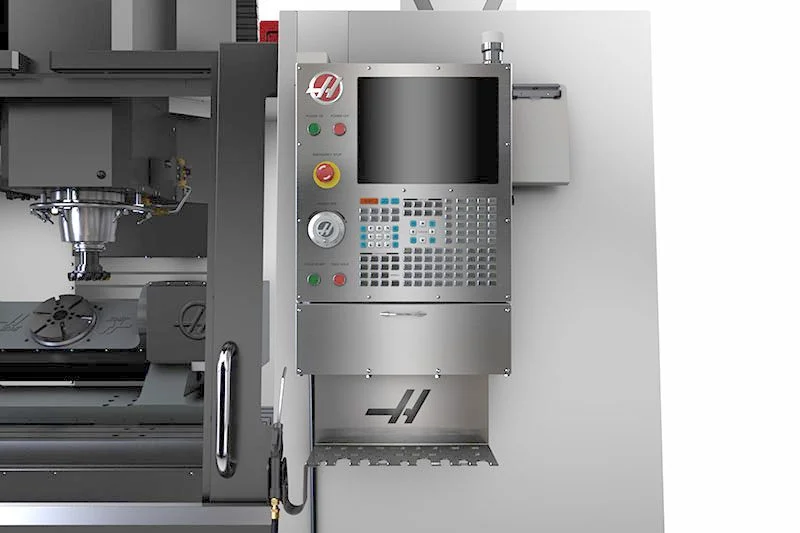

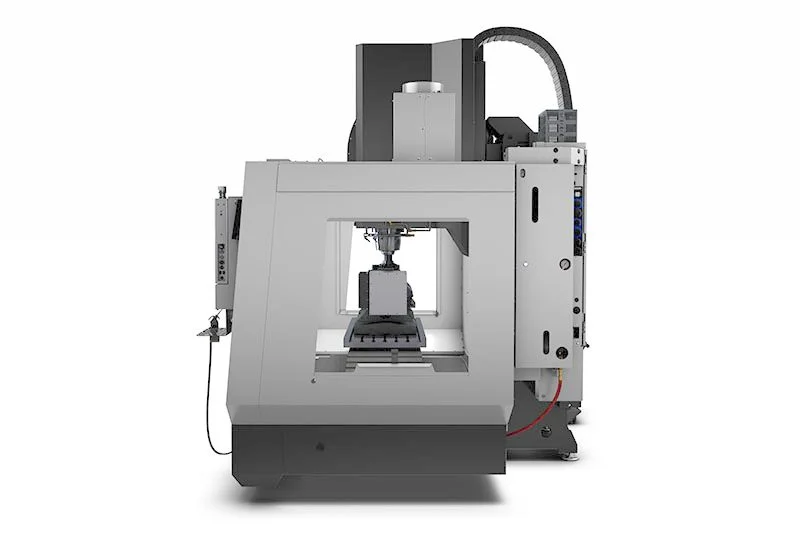

The VF-5/50TR is a trunnion CNC vertical mill with 50" x 26" x 25" travels and is a 5-axis machining center based on the VF-5/50 VMC platform. The trunnion is mounted directly to the machine's standard T-slot table and can be removed for 3-axis machining. It is capable of full 5-axis contouring and provides full simultaneous five-axis motion. Spindle and drive features include a 50-taper spindle with a 2-Speed Gearbox, Max Speed 7500 rpm, Spindle Power 30.0 hp (Max Rating: 30.0 hp) and Max Torque 340.0 ft-lbf @ 700 rpm. The taper is CT or BT 50 and the drive system is specified as a 2-Speed Gearbox. Table and platter specifications: X Axis 50.00 in, Y Axis 26.00 in, Z Axis 25.00 in; Platter Diameter 8.30 in with Max Weight on Platter 200 lb and Max Part Swing 24 in (reduced at tilt angles > ± 90°). Table features include T-Slot Width (Table) 0.626 in to 0.630 in, T-Slot Center Distance 3.15 in, Number of Std T-Slots (Table) 7, and Max Weight on Table (evenly distributed) 4000 lb. Feed, motion, and capacity data: Rapids on X/Y/Z 710 ipm, Max Cutting 500 ipm, Rapids on A/B 60 °/sec, Max Cutting A/B 33 °/sec. Tooling and magazine: SMTC 30+1 Side-Mount Tool Changer (50-Taper) with Capacity 30+1, Max Tool Diameter (full) 4.0 in, Max Tool Diameter, Large (adjacent empty) 7.0 in, Max Tool Length 16.00 in, Max Tool Weight 30.0 lb, Tool-to-Tool (avg) 4.20 s, Chip-to-Chip (avg) 6.30 s. Coolant Capacity: 95 gal. Air Required: 4 scfm @ 100 psi. Input AC Voltage (3 Phase) - Low: 220 VAC (Full Load Amps 70 A); High*: 440 VAC (Full Load Amps 35 A). Machine Weight: 16250 lb; Domestic Pallet: 168.0 in x 102.0 in x 125.0 in; Export Crate: 168.0 in x 102.0 in x 130.0 in. The VF-5/50TR provides full simultaneous five-axis contouring or can position a workpiece to almost any angle for machining, supporting complex multi-axis parts. It is described as well suited to high material removal rates and ideal for tougher materials and larger-diameter cutting tools. The removable trunnion allows the machine to be returned to 3-axis operation when five-axis capability is not required.
