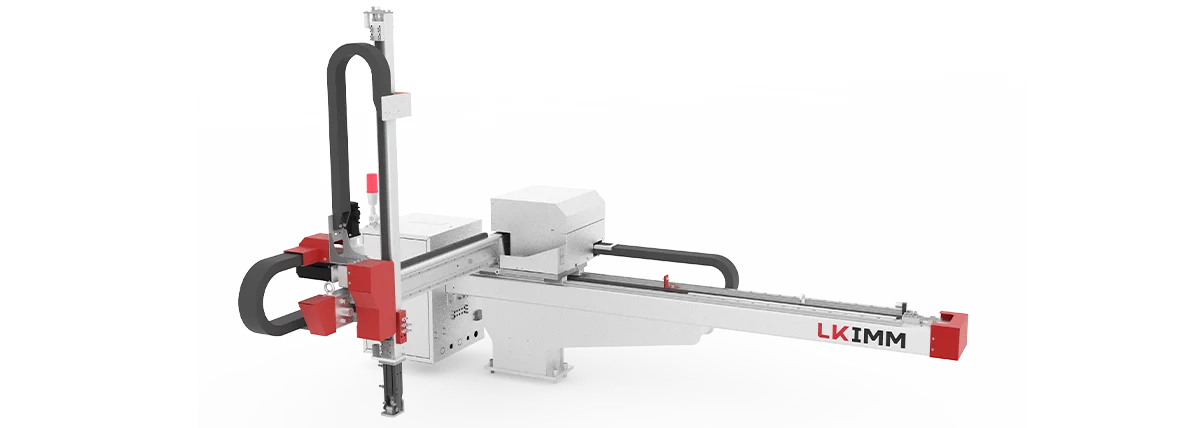

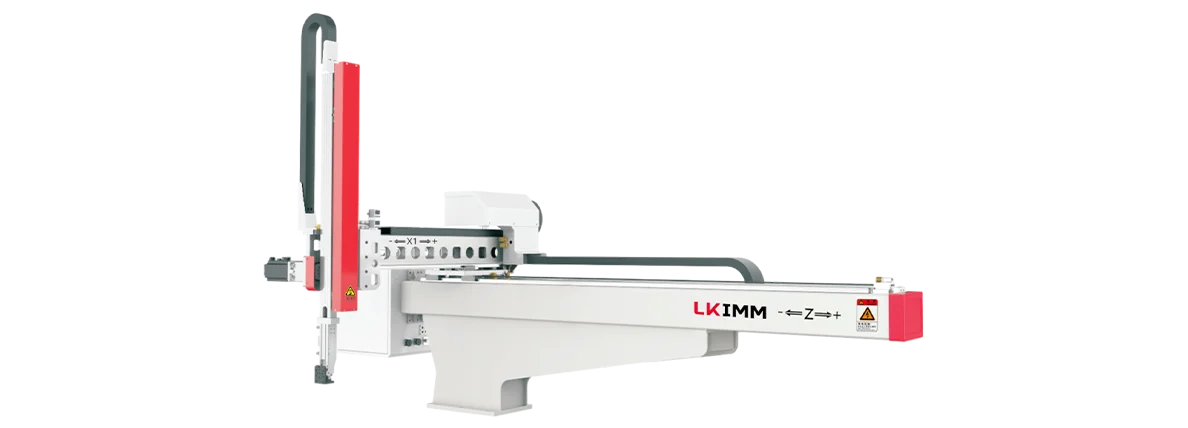

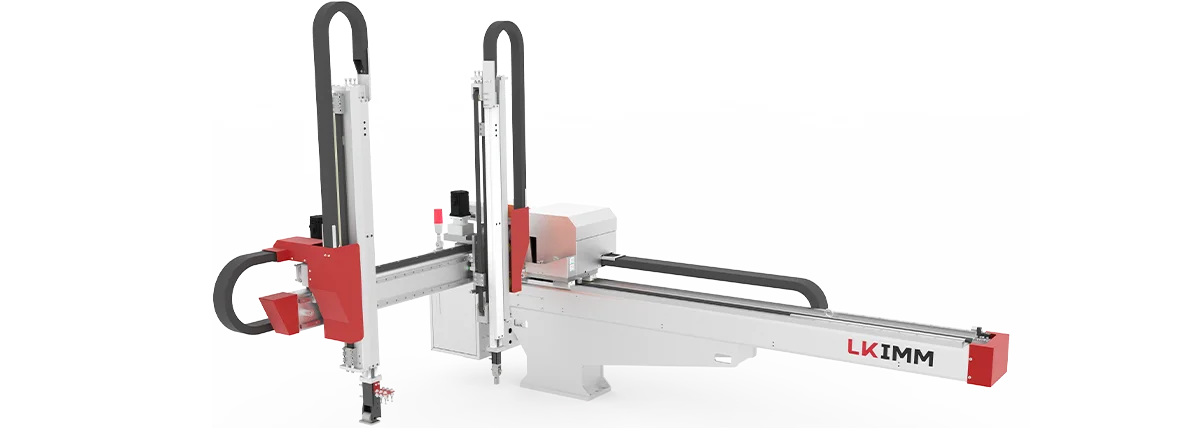

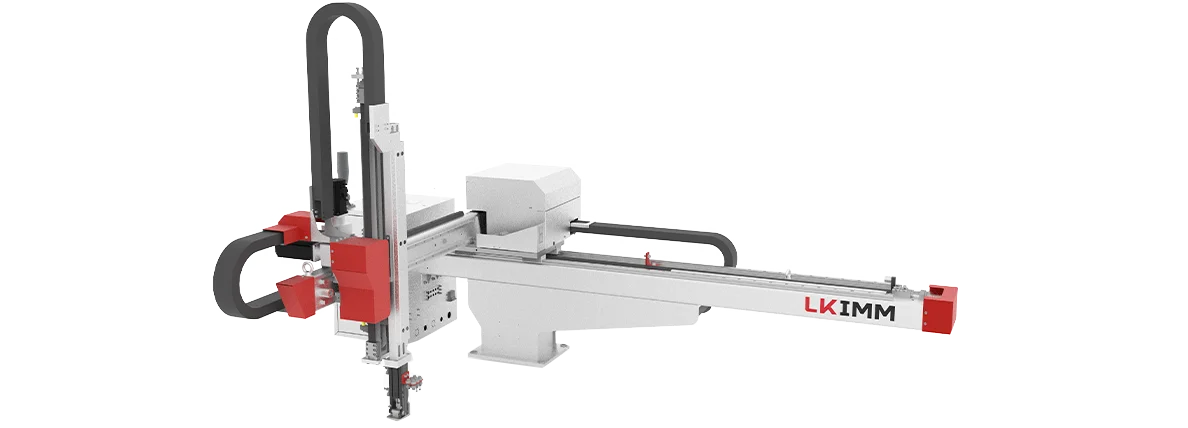

3-axis Gantry Single-arm Double-joint Robot Arm (LT02N Series)

Overview

3-axis Gantry Single-arm Double-joint Robot Arm (LT02N Series). Equipped with the domestic top-brand planetary gear reducer, it can reach a back clearance of 0.05°, realizing features of high precision of servo motor in max. extend. High-precision linear guide ways are adopted, featuring better abrasive resistance,longer service life, faster speed and lower noise. The internationally renowned brand of synchronous belts are used, which have better abrasive resistance,lower noise,longer serice life, better anti-corosion property and oll resistance. The adoption of extracion axs for the transmission of helical gears and heringbone gears boasts a simple structure and faster response. - Model LT02N-1300DS3: IMM 250-450T; Up Down 1300; Extraction 700; Horizontal travel 1800; Angle 90°; Max. load (include fixture) 5KG; Take out 1.1; Idle loop 5.85; Driven by All AC servo motor; Air pressure (kg/cm³) 5~7; Air consumption (nl/cycle) 2; Power Single phase AC220±10V 50/60HZ; Power consumption (Kva) 2.4; Net weight (Kg) 290. - Model LT02N-1500DS3-C/AC: IMM 500-850T; Up Down 1500; Extraction 1000; Horizontal travel 2200; Angle 90°; Max. load (include fixture) 12KG; Take out 3.41; Idle loop 13.2; Driven by All AC servo motor; Air pressure (kg/cm³) 5~7; Air consumption (nl/cycle) 2; Power Single phase AC220±10V 50/60HZ; Power consumption (Kva) 2; Net weight (Kg) 540. The LT Series is presented as a High Performance Robot Arm for IMM, with LT02N-1300DS3 specified for IMM: 250-450T and LT02N-1500DS3-C/AC specified for IMM: 500-850T. Applicable Industries: Widely used in transportation, smart 3C, home appliance industries.
