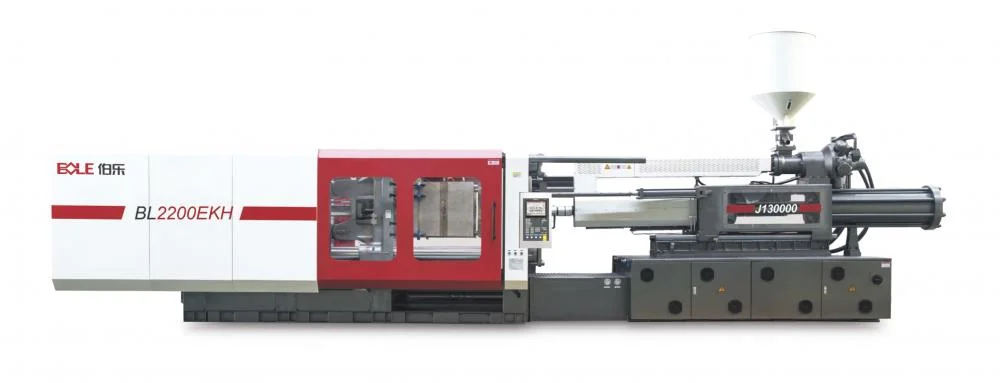

Plastic button making machine bole Machinery (Model No.: BL2200EKH)

Overview

Model BL2200EKH Plastic button making machine by Bole Machinery is a horizontal, automatic, computerized preform injection machine for thermoplastic materials with screw-type plasticizing and hydraulic clamping, certified SGS. Screw diameter 130 mm with L/D 28.0; theoretical injection capacity 143333 cm3; shot weight(PS) 131866 g (4659.6 oz); injection rate into air 3093 cm^3/s (2846 g/S); injection pressure 99 MPa; theoretical plasticizing speed 260 g/S (PS); injection plug diameter 310 mm; injectionstroke 1900 mm; max. injection speed 41 mm/s; screw speed 79 r/min; Sys. Pressure 17.5 MPa. Clamping force 22000 kN with opening stroke 1850 mm; space between tie bar 1720×1520 mm x mm; Min. mould height 750 mm; Max. mould height 1700 mm; Max. Daylight 3550 mm; ejector stroke 450 mm with ejector force forward 465 kN and ejector force back 365 kN across 33 PC ejector bar. Pump Motor(Min~Max) 200.8~202.8 kW with number of Motors 4 PC; heater power 172 kW; Number of temp. control zones 6+1; hopper capacity 300 kg; oil tank capacity 3500 L; Machine dimensions(L×W×H) 16.5x3.75x4.8 m x m x m and Machine weight 125 Ton; optional widen safety gate (single side) 250 mm yields Machine dimensions(L×W×H) 16.5x4.25x4.8 m x m x m. Price $2050000; Minimum Order 1 Set/Sets; Payment Type L/C,T/T; Incoterm FOB; Transportation Ocean; Packaging standard export packing; HS Code 84771010; Selling Units Set/Sets. The product is described as a Plastic Button Making Machine and is specified for Preform Injection and EKH Large Volume Injection Moulding Machine applications. The information also references use in CIML carbon-fiber products intelligent moulding lines made for lightweight of automobile.
