Programmable controller CPU module

Overview

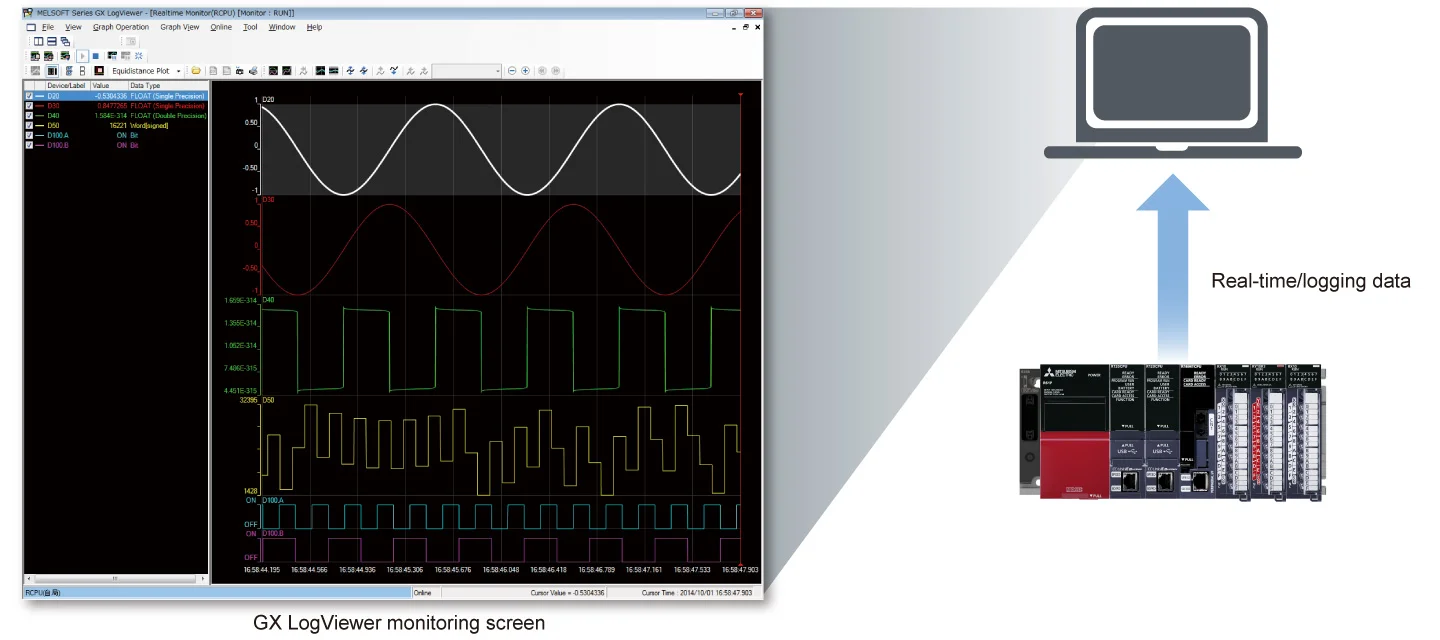

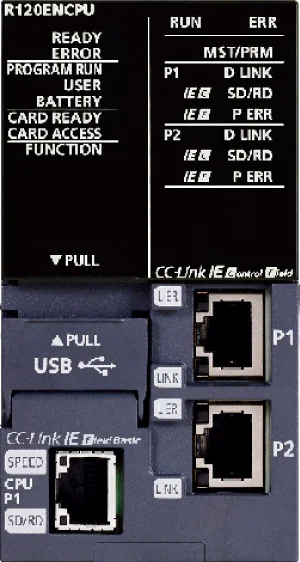

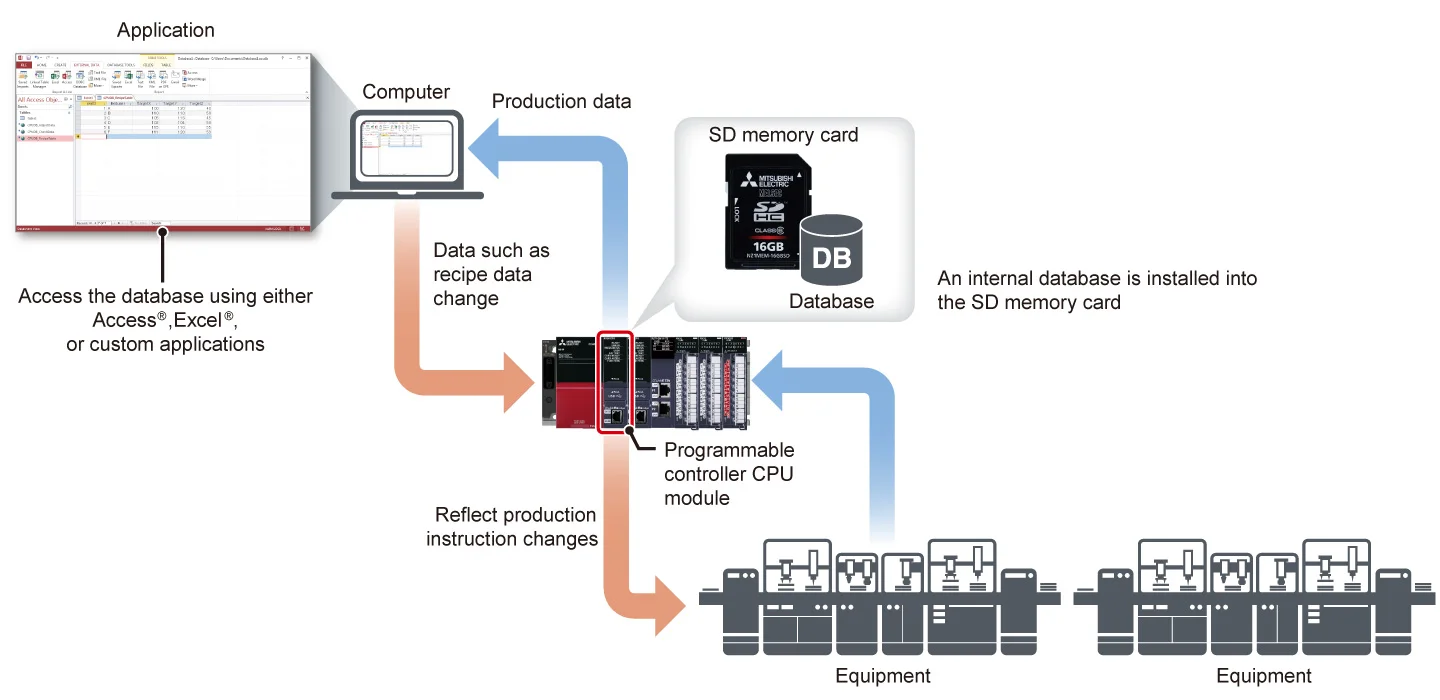

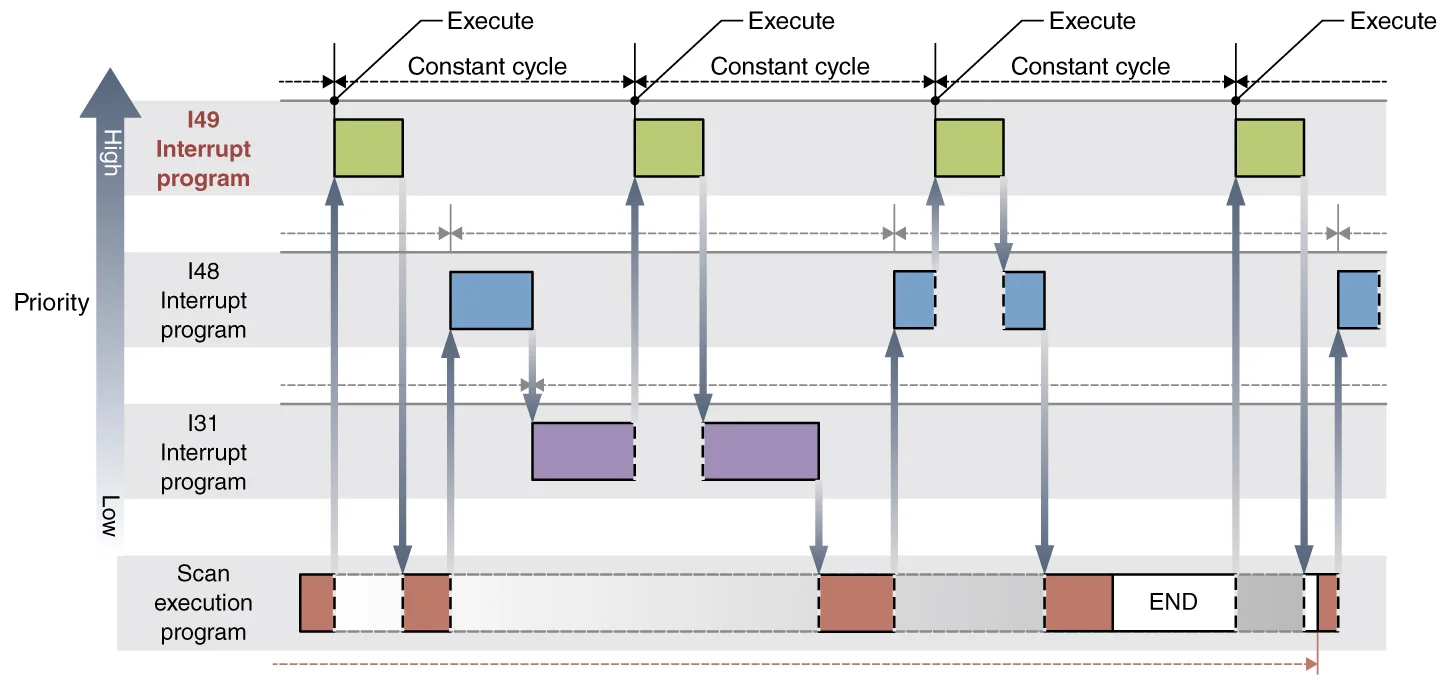

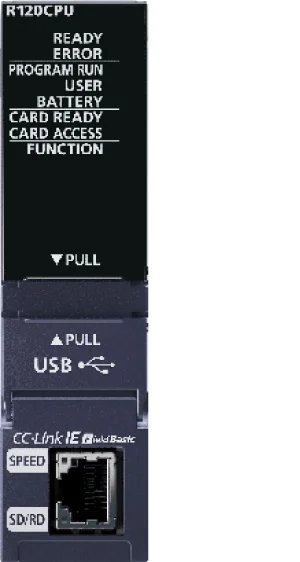

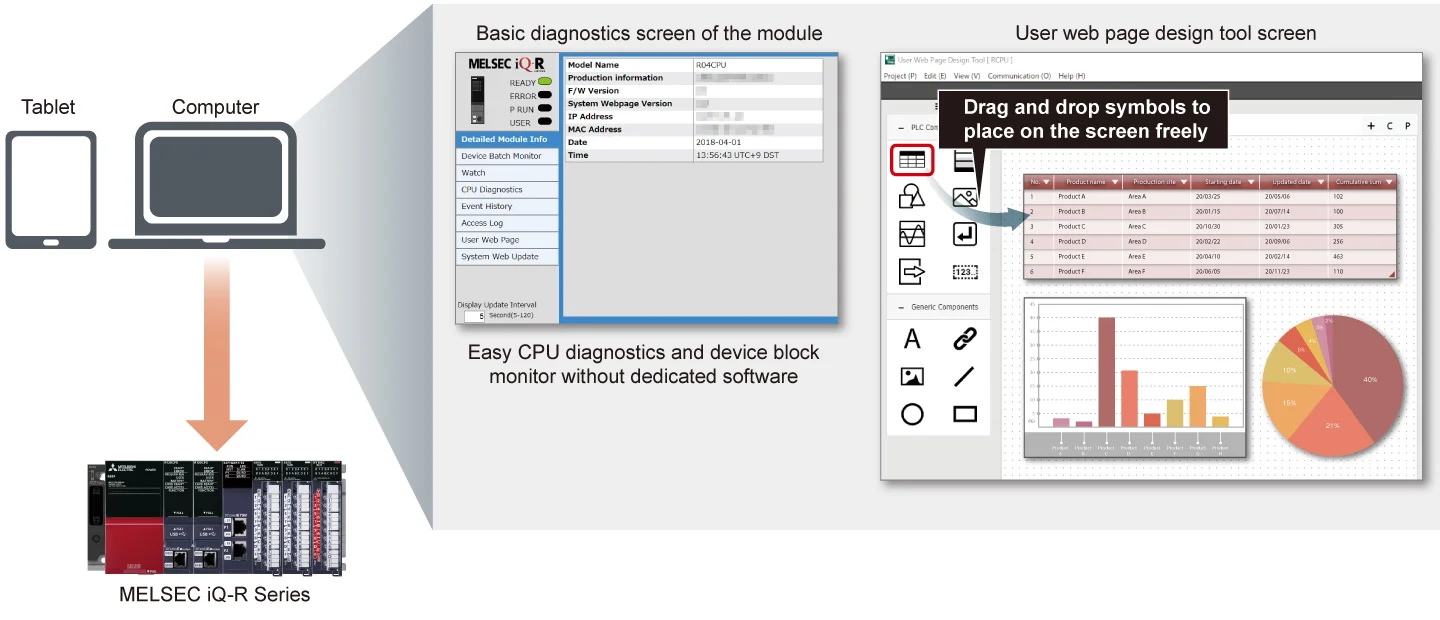

Programmable controller CPU module. The CPU modules are described as the heart of the control system performing a variety of control tasks, with program capacity options from 10K to 1200K steps. Large-scale models listed: R04CPU40K, R08CPU80K, R16CPU160K, R32CPU320K, R120CPU1200K. Medium-scale models listed: R00CPU10K, R01CPU15K, R02CPU20K. Embedded-network models listed include CC-Link IE embedded programmable controller CPU module and EN variants: R04ENCPU40K, R08ENCPU80K, R16ENCPU160K, R32ENCPU320K, R120ENCPU1200K. Built-in web server and internal database functions enable CPU diagnostics and device monitoring via a web browser and allow recipe and production data to be managed in the controller for tasks such as changing recipe data and production management. Data logging can be saved to internal memory or an SD memory card for data analysis by computer, and real-time monitoring via GX LogViewer is described for traceability, equipment startup, and debugging. The CPU module supports constant-interval interrupt execution with a 50 µs minimum interval time to detect high-speed signals independent of scan time, which the documentation explicitly states is ideal for production lines where products are traveling at high speed. The programmable controller CPU module also supports simple CPU communication by parameter registration for data exchange with Mitsubishi Electric and listed third-party programmable controllers, enabling data collection without changing existing programmable controller programs.
