3703 SeriesOverwrapping

Overview

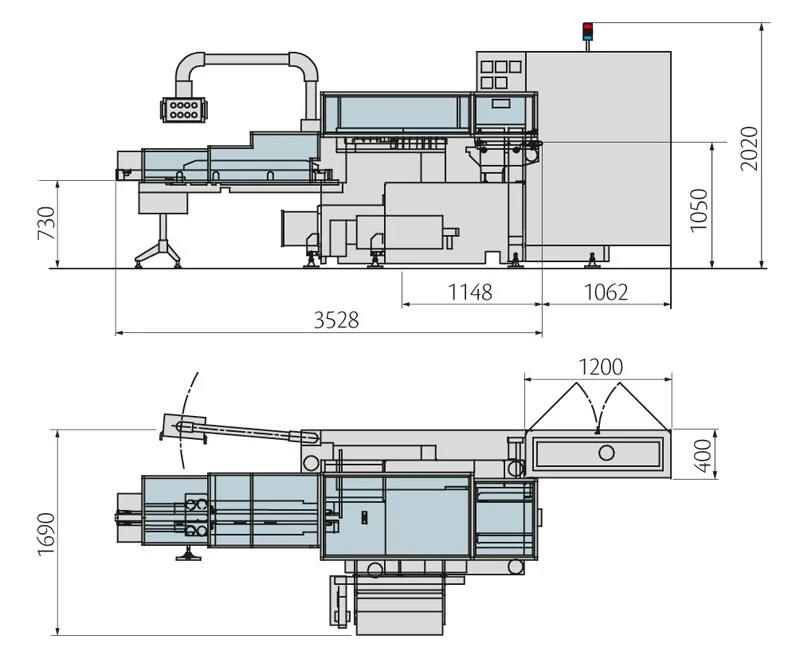

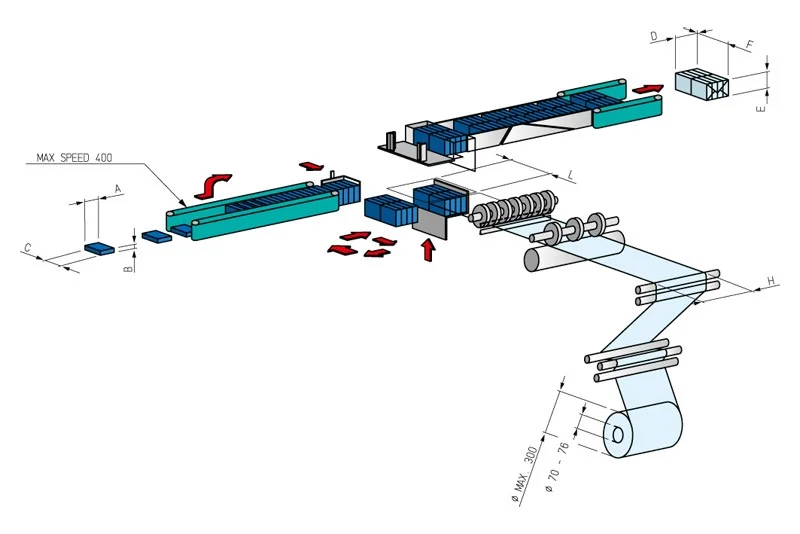

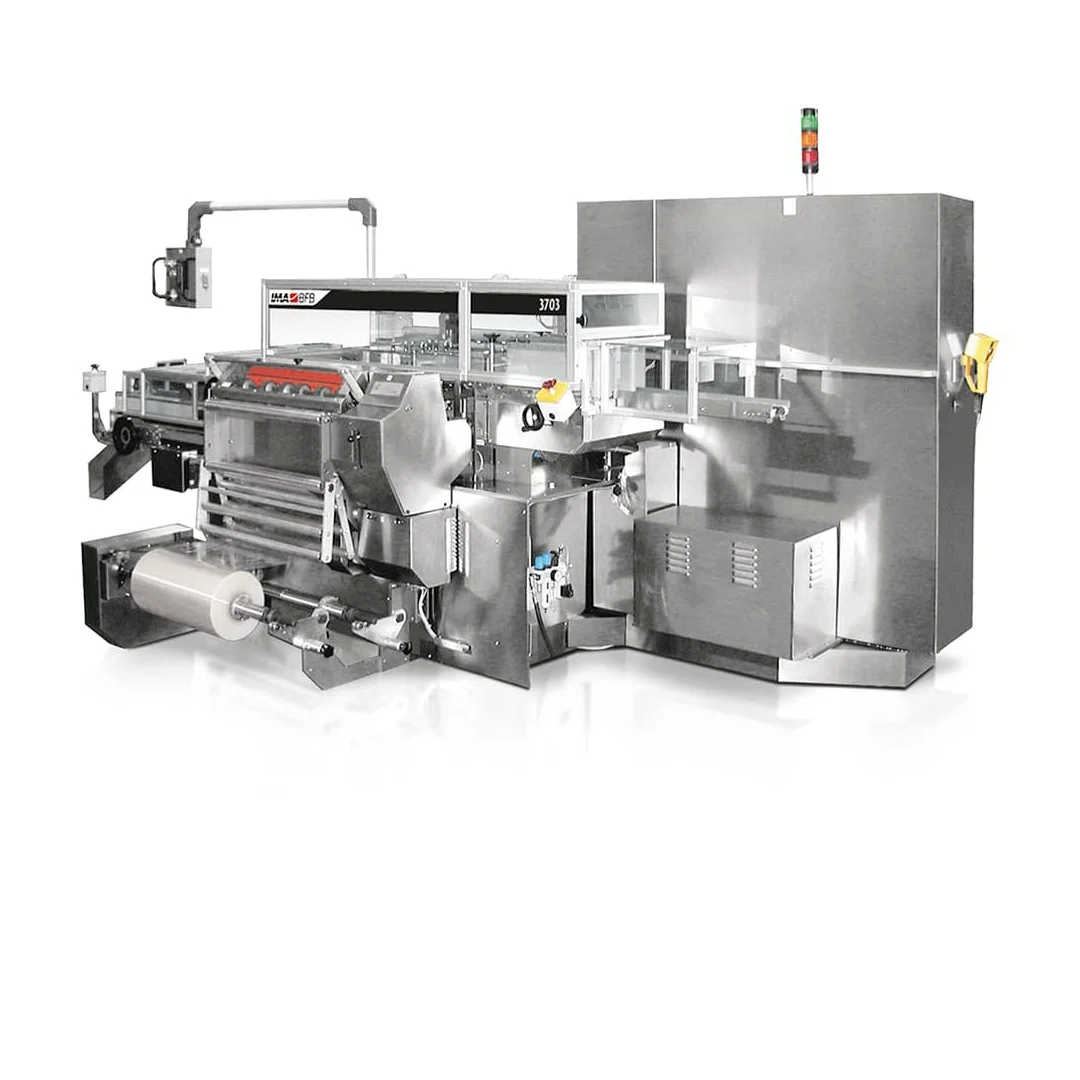

Model 3703BP is a high speed overwrapping machine designed for overwrapping with all types of film. Output of up to 100 bundles/min; Max. Speed: Up to 100 cycles/min. The 3703 can arrange the products wrapping it in one, two or three rows on a single layer, and bundle collation occurs in line with product exit but outside the wrapping area. Product infeed is managed by lateral belts to avoid product sliding due to high feeding speeds. A driven star-wheel turns incoming products on edge and a driven collating unit achieves final product configuration. All movements are servo driven, including bundle forming. Lubrication is oil forced circulation by motor-driven pump with safety pressure switch. Changeover is achieved by replacement of pre-assembled and pre-adjusted groups. The machine can be supplied with right hand or left hand film feeding from product entrance and countless optional groups can be integrated for specific functions and enhanced performance. Production plant: IMA BFB; layout and workflow images are provided. Used for high-speed overwrapping of products with all types of film, delivering outputs up to 100 bundles/min and operating up to 100 cycles/min. It arranges products into bundles of one, two or three rows on a single layer with bundle collation in line with product exit outside the wrapping area, while managing high-speed infeed with lateral belts, turning products on edge with a driven star-wheel and achieving final configuration with a driven collating unit. Product dimensions supported (A B C) Min.: 60, 23, 60; Max.: 260, 100, 260.
