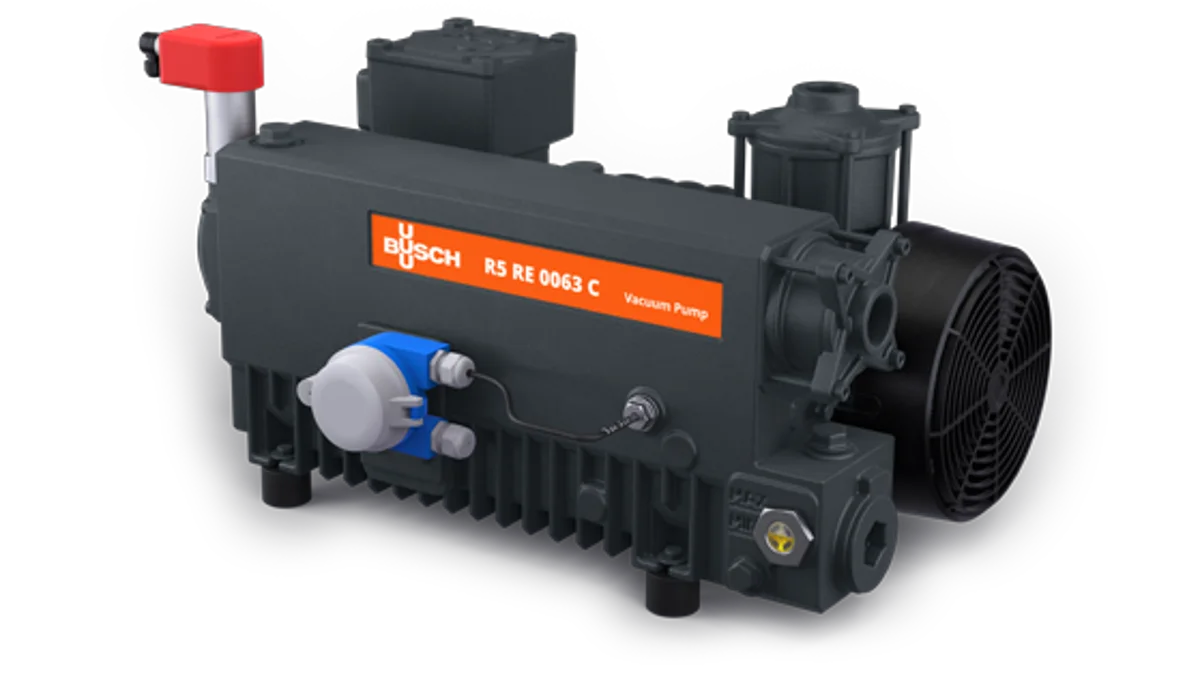

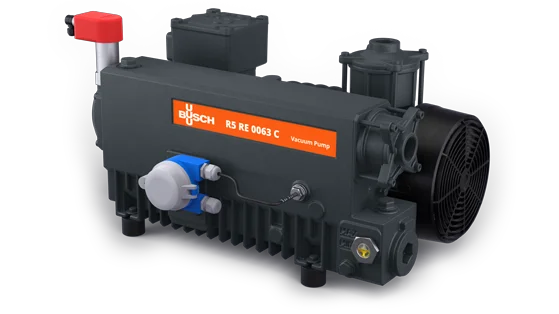

R5 RE 0040/0063 C

Overview

R5 RE 0040/0063 C are oil-lubricated rotary vane vacuum pumps. They are explosion-proof and ATEX-certified to directive 2014/34/EU: II 1/2G Ex h IIB3 T4 Ga/Gb, specially designed to extract explosion endangered gas/air and vapor/air mixtures and suitable for the extraction of almost all substances in the IIB3 explosion group as well as petrol vapor. The pumps feature robust construction with highly durable fiber-reinforced epoxy resin vanes, proven rotary vane technology and are described as having long service life. Various design options are available and a resistance thermometer with transmitter is supplied as standard; available accessories include a gas-ballast valve, oil level switch, anti-corrosion coating on the oil separator, and T4 motor and transmitter (temperature class T4 outside the vacuum pump). Technical data (ISO 50 Hz): - R5 RE 0040 C: Nominal pumping speed 40 m³/h; Ultimate pressure 0.5 hPa (mbar); Nominal motor rating 1.5 kW; Nominal motor speed 1500 min⁻¹; Sound pressure level (ISO 2151), KpA = 3 dB 63 dB(A); Oil capacity 2 l; Weight approx. 100 kg; Dimensions (L x W x H) 695 x 420 x 372 mm; Gas inlet G 1¼"; Gas outlet G 1¼". - R5 RE 0063 C: Nominal pumping speed 63 m³/h; Ultimate pressure 0.5 hPa (mbar); Nominal motor rating 2.2 kW; Nominal motor speed 1500 min⁻¹; Sound pressure level (ISO 2151), KpA = 3 dB 65 dB(A); Oil capacity 2 l; Weight approx. 100 kg; Dimensions (L x W x H) 752 x 420 x 372 mm; Gas inlet G 1¼"; Gas outlet G 1¼". Technical data (ISO 60 Hz): - R5 RE 0040 C: Nominal pumping speed 48 m³/h; Ultimate pressure 1.0 hPa (mbar); Nominal motor rating 2.2 kW; Nominal motor speed 1800 min⁻¹; Sound pressure level (ISO 2151), KpA = 3 dB 66 dB(A); Oil capacity 2 l; Weight approx. 100 kg; Dimensions (L x W x H) 695 x 420 x 372 mm; Gas inlet G 1¼"; Gas outlet G 1¼". - R5 RE 0063 C: Nominal pumping speed 76 m³/h; Ultimate pressure 1.0 hPa (mbar); Nominal motor rating 3.0 kW; Nominal motor speed 1800 min⁻¹; Sound pressure level (ISO 2151), KpA = 3 dB 68 dB(A); Oil capacity 2 l; Weight approx. 100 kg; Dimensions (L x W x H) 752 x 420 x 372 mm; Gas inlet G 1¼"; Gas outlet G 1¼". Technical data (US 60 Hz): - R5 RE 0040 C: Nominal pumping speed 28.2 ACFM; Ultimate pressure 0.75 Torr; Nominal motor rating 3.0 hp; Nominal motor speed 1800 rpm; Sound pressure level (ISO 2151), KpA = 3 dB 66 dB(A); Oil capacity 2.1 qts.; Weight approx. 191.4 Lbs.; Dimensions (L x W x H) 27.4 x 15.9 x 15 inches; Gas inlet G 1¼"; Gas outlet G 1¼". - R5 RE 0063 C: Nominal pumping speed 44.7 ACFM; Ultimate pressure 0.75 Torr; Nominal motor rating 3.0 hp; Nominal motor speed 1800 rpm; Sound pressure level (ISO 2151), KpA = 3 dB 68 dB(A); Oil capacity 2.1 qts.; Weight approx. 200.2 Lbs.; Dimensions (L x W x H) 28.4 x 15.9 x 15 inches; Gas inlet G 1¼"; Gas outlet G 1¼". Listed markets and applications include Chemical (packaging; filtration, degassing; distillation, solvent recovery; evaporation, drying). Dairy applications shown are Milk Powder - Evaporation and Milk Powder - Powder handling. Fish farming uses listed are vacuum for transportation, pneumatic suction conveying of ice for cooling, extraction of slaughter waste and sorting of fish eggs. Food Processing application listed is powder processing. Pharma and Biotech applications listed are distillation, solvent recovery; filtration, degassing; evaporation, drying; and packaging. Refrigeration and Air Condition application listed is vacuum evacuation and filling.
