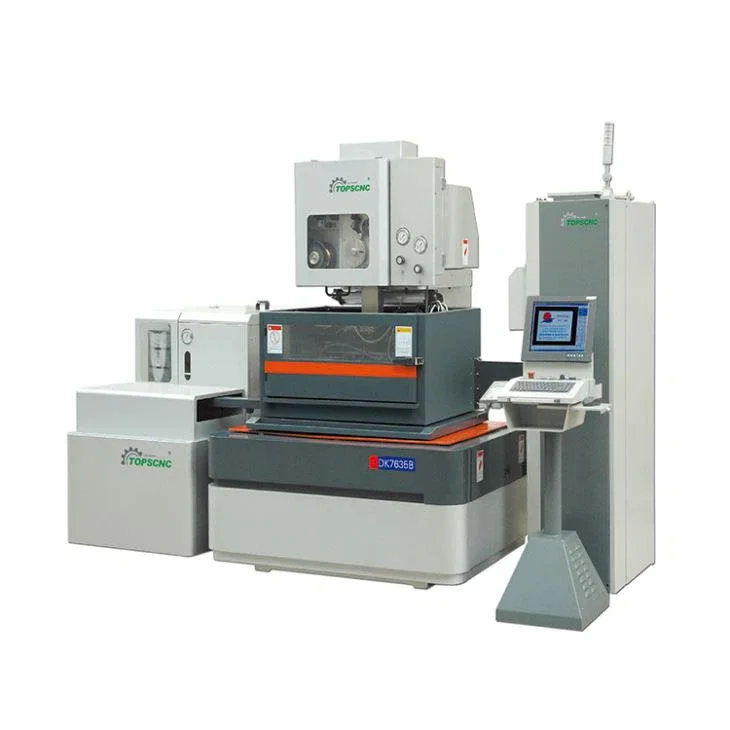

CNC Brass Wire Cut EDM Machine

Overview

CNC Brass Wire Cut EDM Machine is offered in two model variants, DK7635A/B and DK7663. - Work table travel (X/Y): DK7635A/B 500×350 mm; DK7663 800×630 mm. U/V axis travel: DK7635A/B ±50×±50 mm; DK7663 ±75×±75 mm. Z axis travel: DK7635A/B 300 mm; DK7663 350 mm. Work table dimensions: DK7635A/B 790×550 mm; DK7663 1070×825 mm. Max. workpiece size: DK7635A/B 850×600×300 mm; DK7663 1400×1000×250 mm. Max. cutting thickness: 300 mm (both models). Max. workpiece weight: DK7635A/B 350 kg; DK7663 600 kg. Max. cutting taper: ±15°/100 (both models). - Wire diameter: 0.25(0.15、0.2、0.3 for choose) mm. Wire tension: 2-15N. Wire feed rate: 1-12m/min. Positioning accuracy X, Y: 0.008 mm; Accuracy of repeated positioning X, Y: 0.008 mm. Max. sutting speed: >200 mm²/min. precision: DK7635A/B ≤±0.004 mm; DK7663 ≤±0.005 mm. Best surface roughness: DK7635A/B ≤0.5 μm; DK7663 ≤0.6 μm. Machine weight: DK7635A/B 2500 kg; DK7663 5000 kg. Machine dimension: DK7635A/B 3200×2200×2100 mm; DK7663 3500×2550×2400 mm. - Pulse power: High effciency resistorless power; Anti electrolysis power; Max. machining current 25A. Input power: Power source 3N-380V/50Hz; Power capacity 15KVA. The product page includes a "Product application" image on the listed product page.
