MPR 2200 Robotic Peening System

Overview

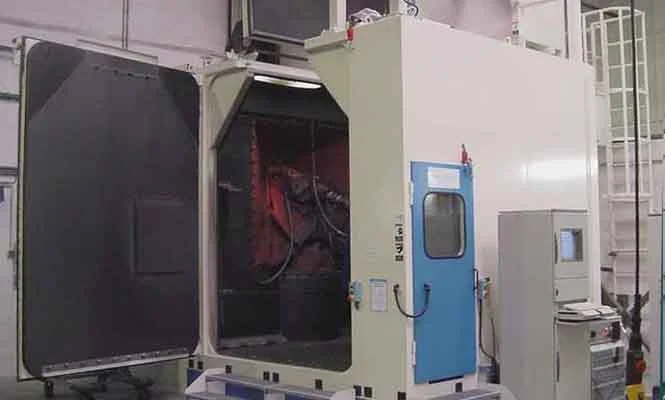

The MPR 2200 Robotic Peening System uses Airblast technology for Shot Peening. The system is listed with an ABB robot and is described as capable of shot peening with the two robots simultaneously for complex component geometry. Maximum component size 2200mm Ø x 2500mm and maximum component weight: 500-10 000 kg. A stabilised base frame supports an accurate precision turntable to guarantee constant precision. The machine features a large double wall cabinet with a pitless pneumatic recovery system, a large access door, a motorised roof flap for loading and an operator door on the cabinet side. Precision peening generators provide air pressure, shot flow regulation and air flow control, and supervision software provides quality reports, maintenance assistant functions and process stability statistics; a Part Recognition System allows automatic peening of mixed part references. Optional features include a wall side NC driven lance before peening landing gears, a precision NC tilting table, a horizontal spindle with adjustable counter head, sound insulation to 75 dBA, a rotary lance unit for bore and slot peening, and a quick media change system. For the aeronautic and gas turbine industries. The system is described as capable of shot peening a wide range of complex aeronautic and gas turbine components. Applications explicitly listed include turbine discs, compressors shafts and landing gears.
