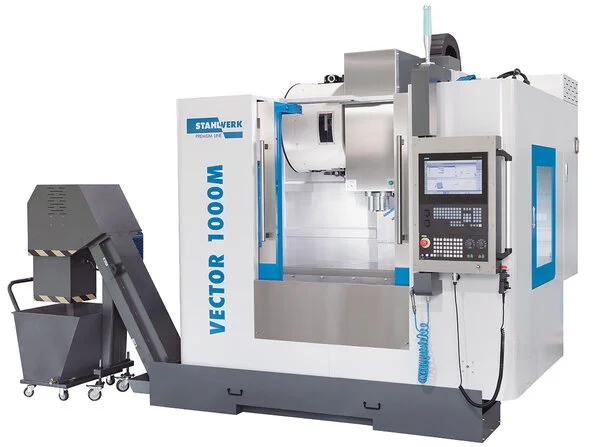

Vector 1000 M Si (15" Multitouch Panel/BT40)

Overview

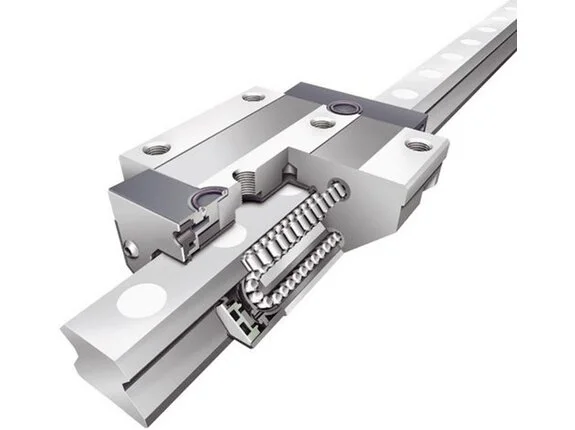

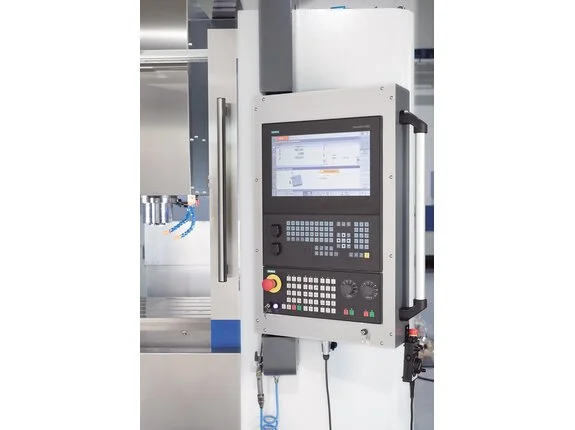

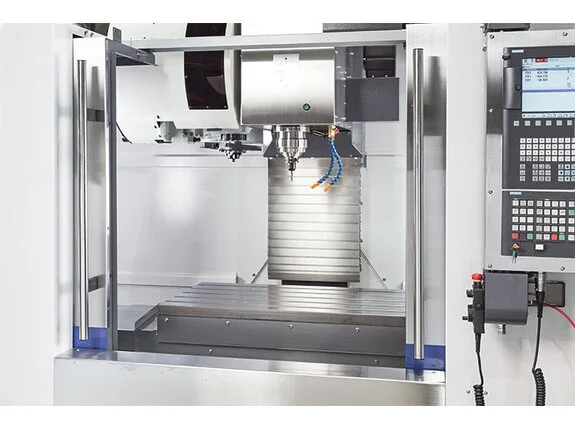

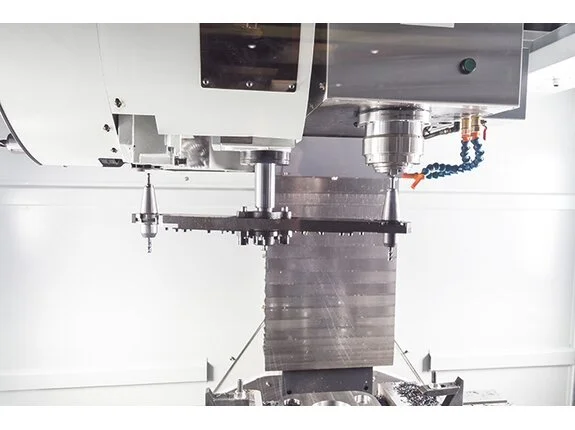

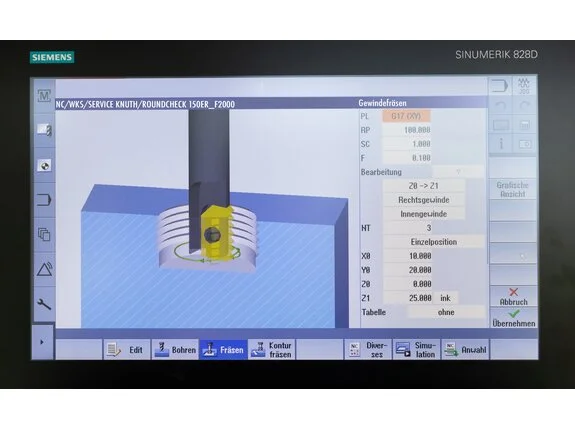

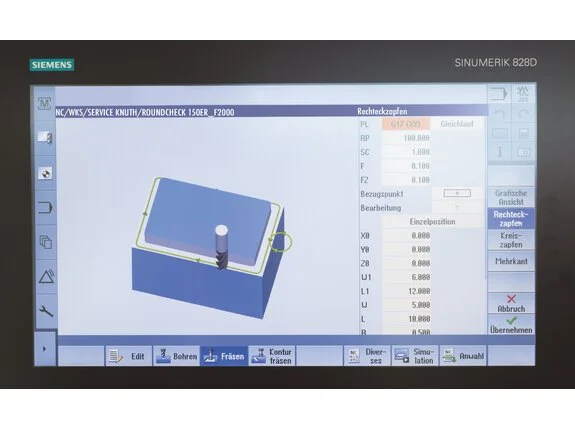

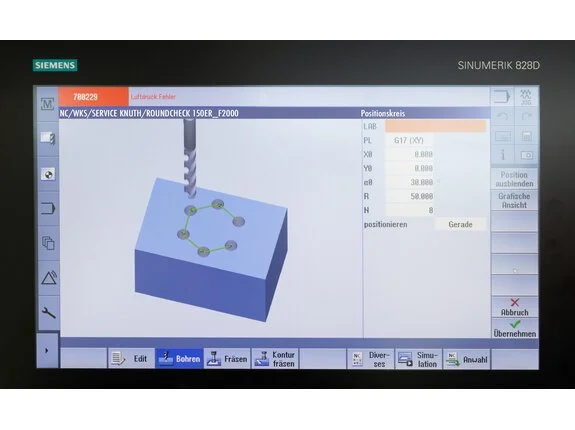

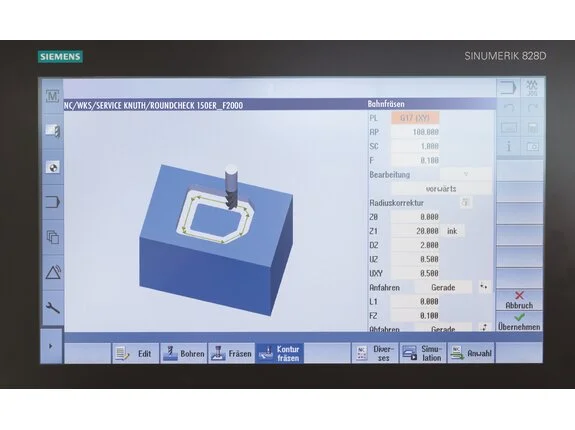

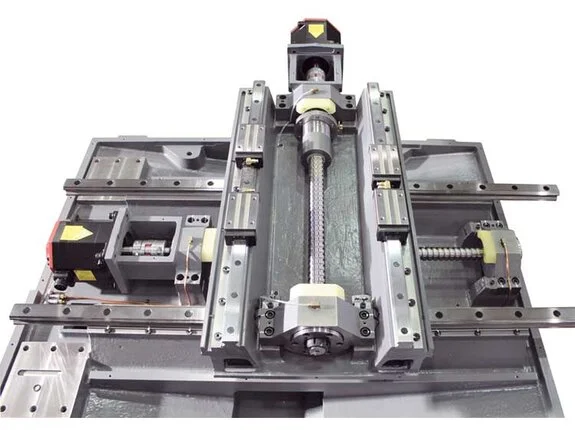

Vector 1000 M Si (15" Multitouch-Panel/BT40) is a compact all-in-one machining solution and is configured with an extra-wide Y-shaped Meehanite column, designed for multi-shift operation, and equipped with a 15" multi-touch panel. The machine has table dimensions of 43 in x 22 in with a table load capacity of 1760 lbs, a spindle nose-to-table surface distance of 6 in - 28 in, and a spindle center to column distance of 20 in. Travel axes are X 39.4 in, Y 22 in and Z 22 in, and the guideway is specified as Roller. Headstock specifications include a spindle speed of 10000 rpm, spindle mount BT 40, constant torque 42 ft.lb., spindle bearing 7012 x 4 and a belt drive; the spindle is noted to run on multiple bearings. The machine uses a double-arm tool changer with 24 positions and memory-random tool selection, accepts tools up to 3.15 in x 13.78 in with a maximum tool weight of 15 lbs, and has tool-change times of 1.8 sec (tool/tool) and 3.9 sec (chip/chip). Rapid feeds are 1417 in/min on X-/Y-axes and 590.55 in/min on Z; work feed is 393.7 in/min. Reported accuracies are Repeatabilities ± 0003 / ± 0.00012" in and Positioning accuracies ± 0005/ 0.0002" in. Electrical and physical data: main drive continuous load 12.07 Hp, Voltage 400 V, Mains frequency 50 Hz, overall dimensions 104 in x 87 in x 107 in, and weight 10120 lbs. The machine is supplied with Siemens Sinumerik 828D control and this unit is upgraded from the standard 10.4-inch monitor to a 15-inch multitouch-panel. The product description states the Vector series is designed and pre-configured for complex manufacturing challenges and for multi-shift operation. Siemens Sinumerik 828D functions listed include ShopMill for single parts and small batch productions, ProgramGUIDE for high-volume series productions, and SINUMERIK MDynamics with the Advanced Surface feature for mold making applications. Listed probing accessories (Renishaw OMP40-2T and OTS) are specified for testing and setting up workpieces and for tool measurement and breakage detection, with probe repeatability given as 1.00 µm 2σ.
