Preston-Eastin, Inc.RSHM Skyhook Positioners

SKYHOOKS

Preston-Eastin, Inc.

Categories:

Collaborative Robots

Model Overview

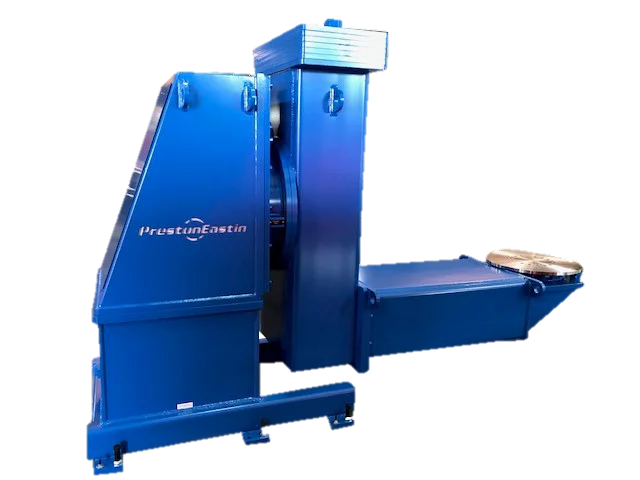

RSHM Skyhook Positioners are 2-axis robotic skyhook positioners manufactured by Preston Eastin with capacities up to 7,500 kg. The units provide 2-axis motion, continuous rotation, and ± 180° tilt from the horizontal table position. They are designed to accept servo motor and external axis control...

Technical Specifications

Motion2-axis motion, continuous rotation, and ± 180° tilt from the horizontal table position.

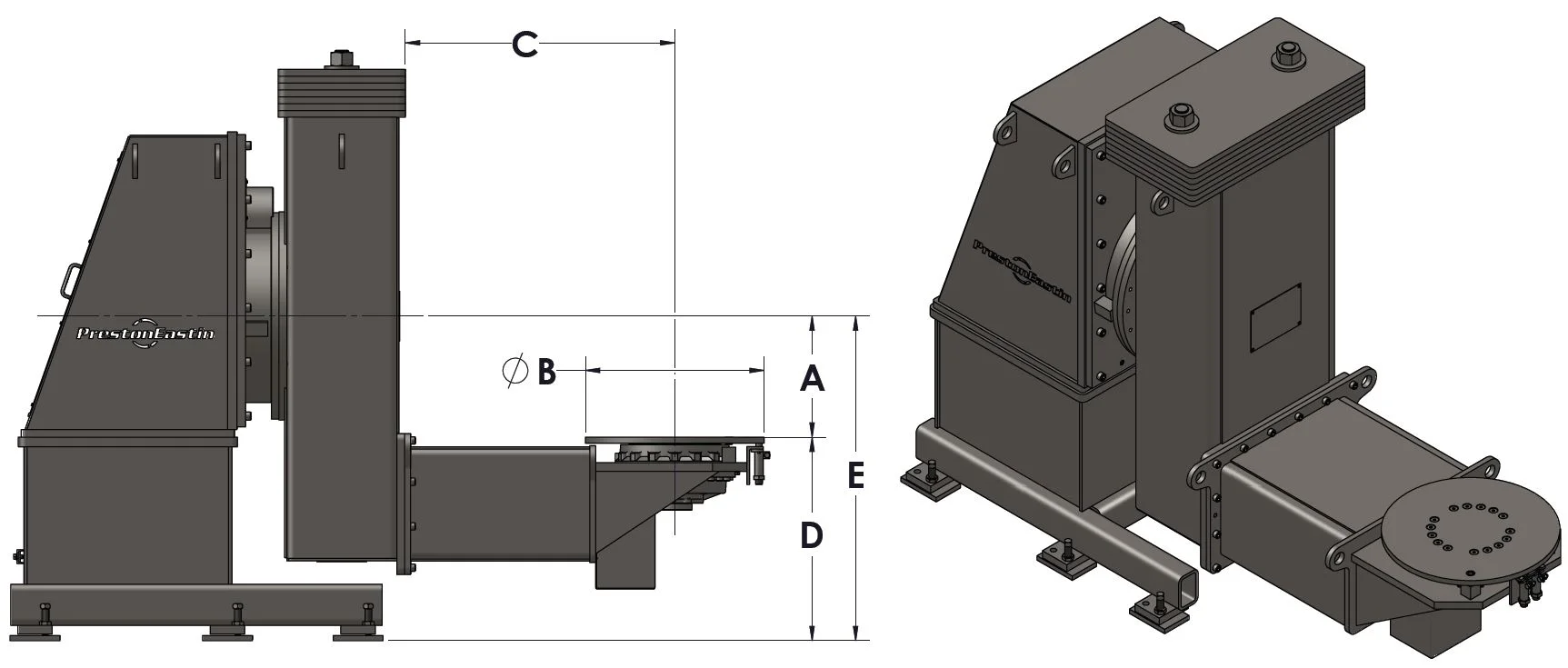

Rshm-10LOAD CAPACITY: 1000 KG; A: 300 mm; B: 600 mm; C: 900 mm; D: 700 mm; E: 1000 mm

Rshm-20LOAD CAPACITY: 2000 KG; A: 300 mm; B: 600 mm; C: 900 mm; D: 700 mm; E: 1000 mm

Rshm-30LOAD CAPACITY: 3000 KG; A: 400 mm; B: 900 mm; C: 1200 mm; D: 800 mm; E: 1200 mm

Rshm-40LOAD CAPACITY: 4000 KG; A: 400 mm; B: 900 mm; C: 1200 mm; D: 800 mm; E: 1200 mm
