SPEEDIO U500Xd2-5AX

Overview

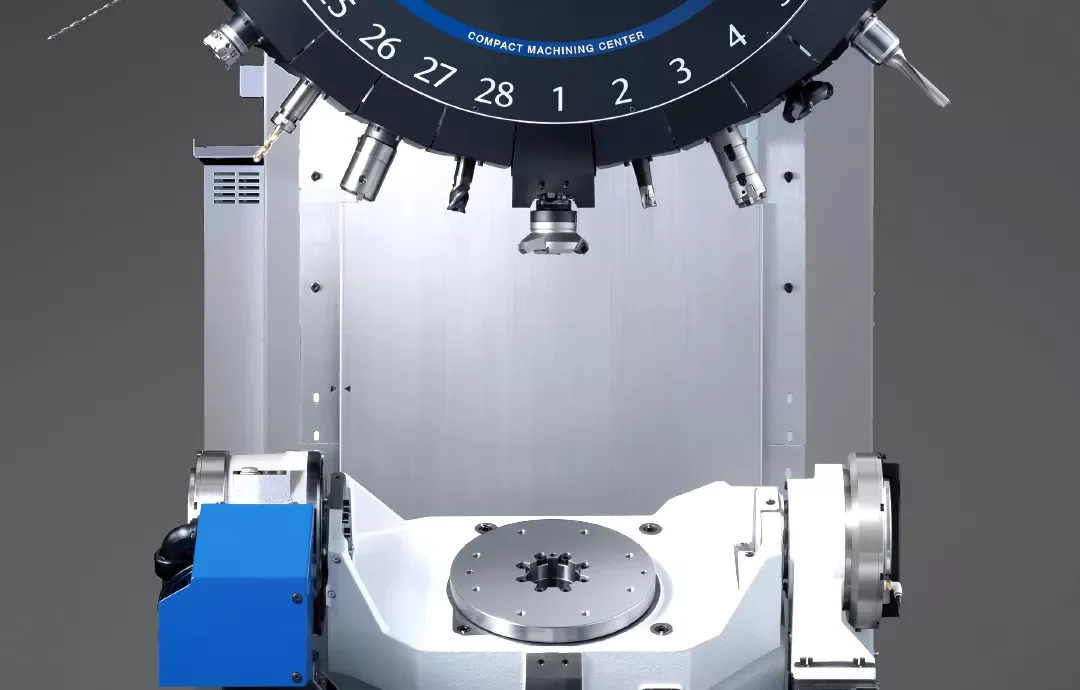

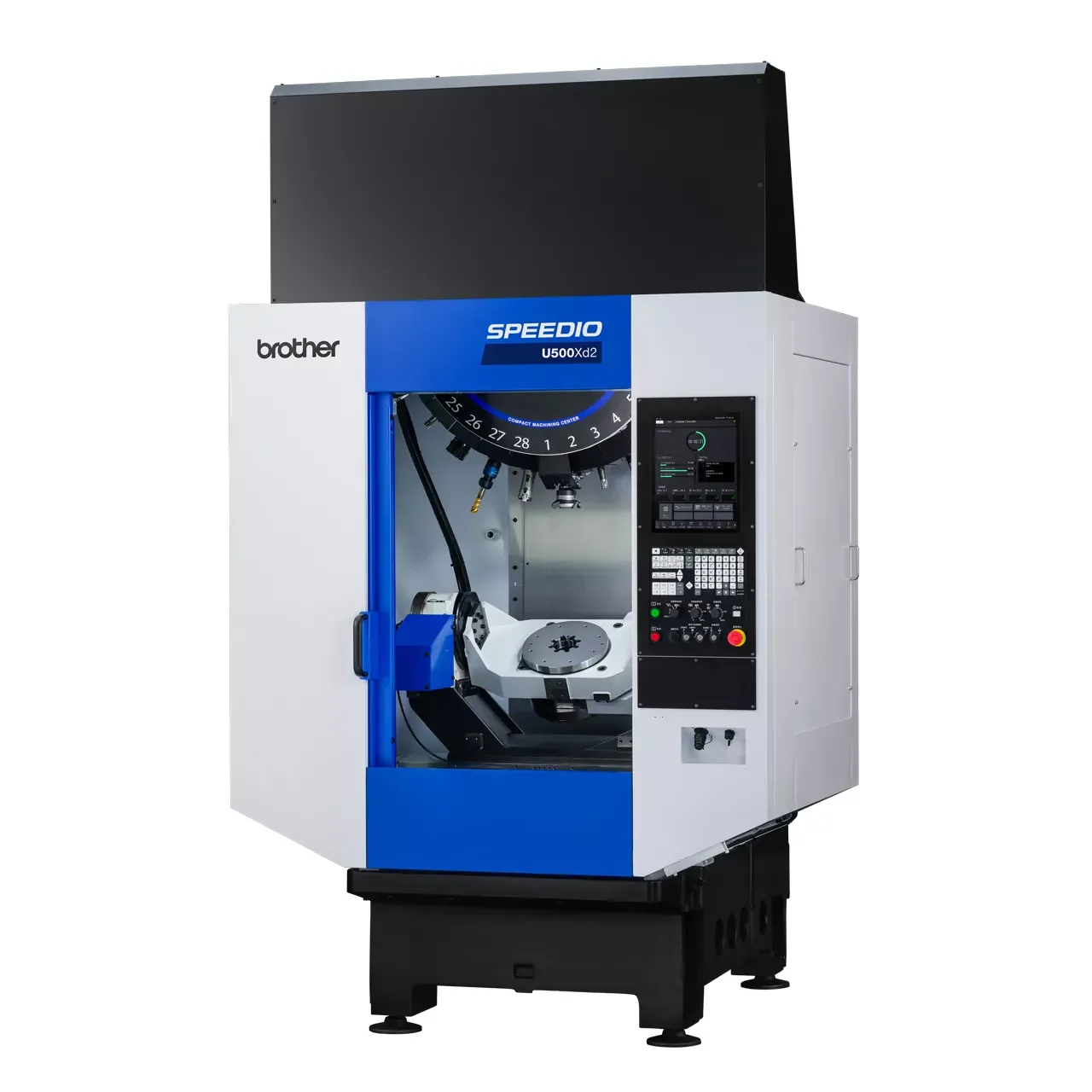

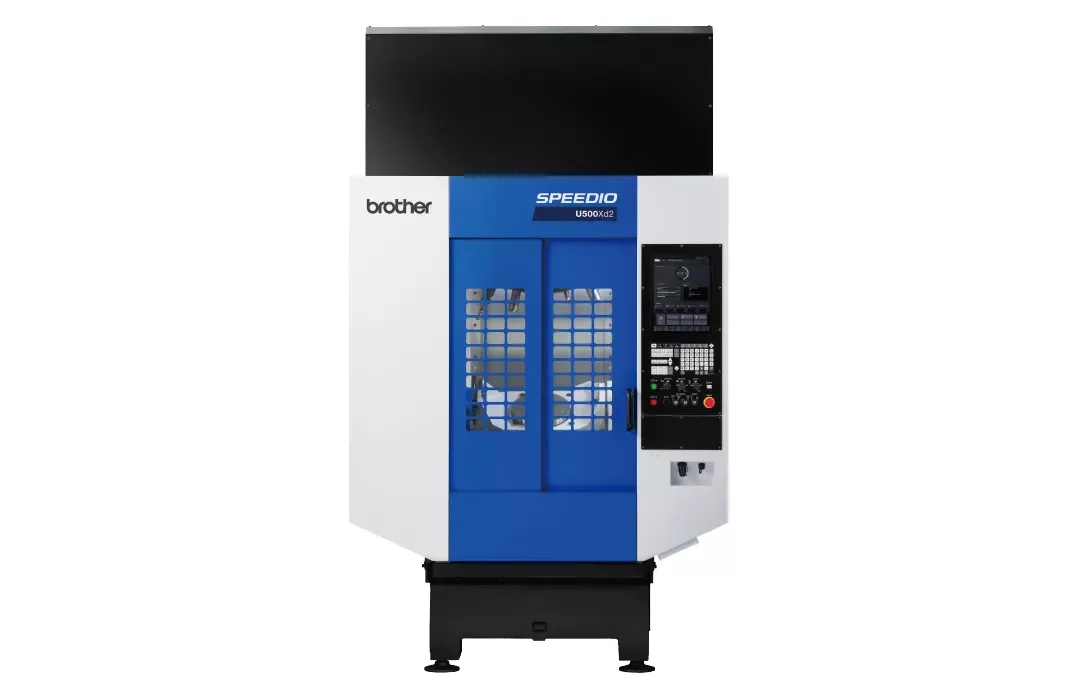

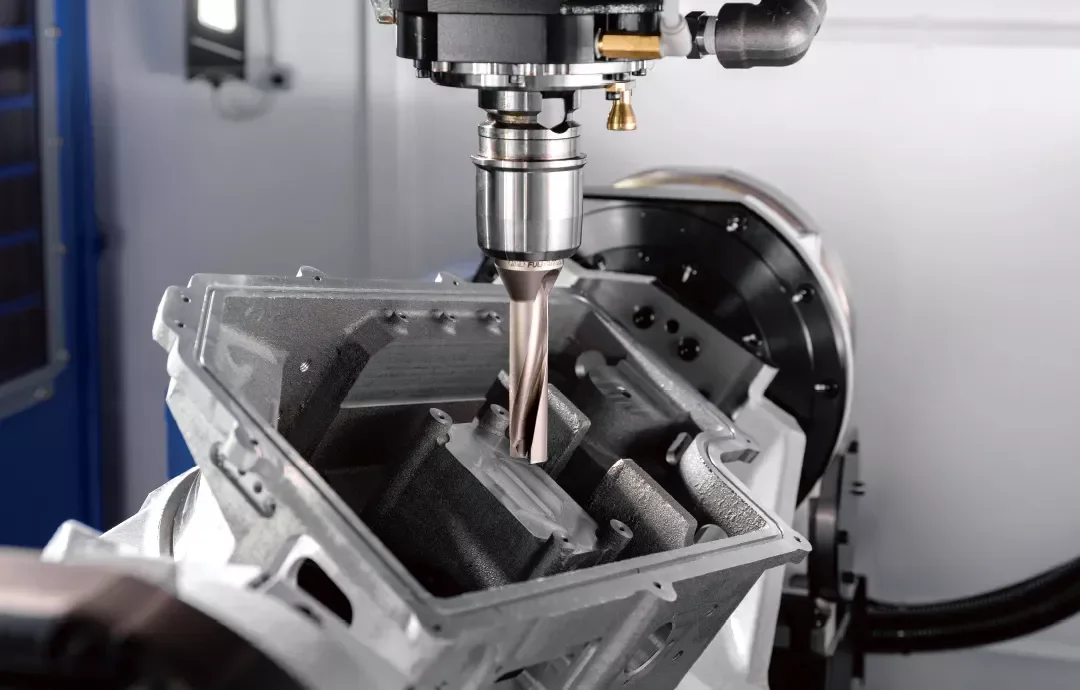

SPEEDIO U500Xd2-5AX is a universal compact 5-axis machining center with a BT30 vertical spindle and a tilting rotary table featuring a jig area of ø500 mm. Travels are X: 500 mm, Y: 450 mm, Z: 380 mm; A: -30 to 120 deg.; C: 360 deg. Distance between table top and spindle nose end is 115 - 495 mm. Maximum uniform table loading capacity is 100 kg and table work area size is ø260 mm. Machine height is 2,818 mm and weight is 2,650 kg; required floor space is 1,560 x 2,081 mm (with control unit door open: 1,560 x 2,081 [2,919] mm). Spindle speed specifications include standard 12,000 min-1 and optional 10,000 min-1 high-torque and 20,000 min-1 variants; the 12,000 min-1 spec lists Max. torque 40 N·m and Max. output 18.9 kW, the high-torque spec lists Max. torque 92 N·m and Max. output 26.2 kW, and the 20,000 min-1 spec lists Max. torque 27 N·m and Max. output 15.4 kW. Tool storage capacity options are 14 / 21 / 28 tools, with Max. tool diameter 110 mm, Max. tool weight 4 kg, and tool change times of Tool-to-Tool 0.6 s (14/21 tools) or 0.7 s (28 tools) and Chip-to-Chip 1.3 s / 1.4 s respectively. The machine is equipped with the CNC-D00 controller (U500Xd2-5AX: CNC-D00v(DB)) and a 15-inch LCD touch panel user interface.
