Super Mini Mill

Overview

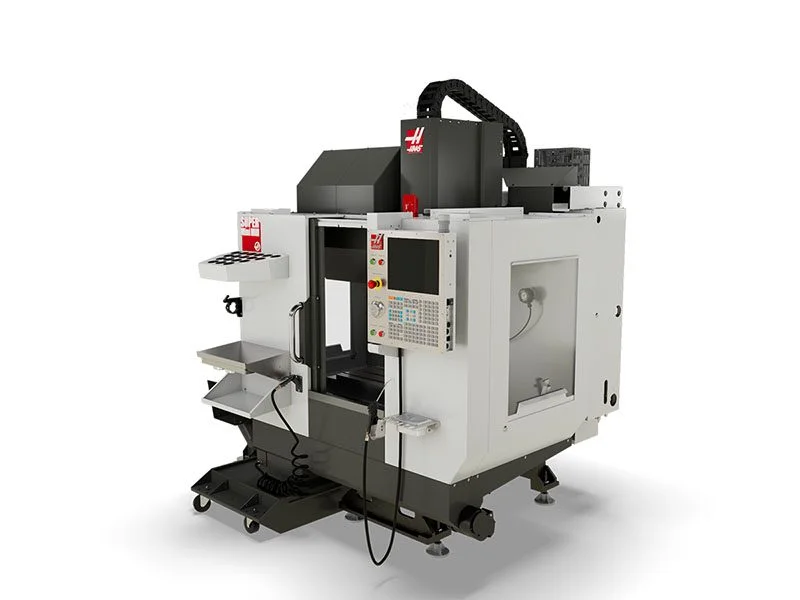

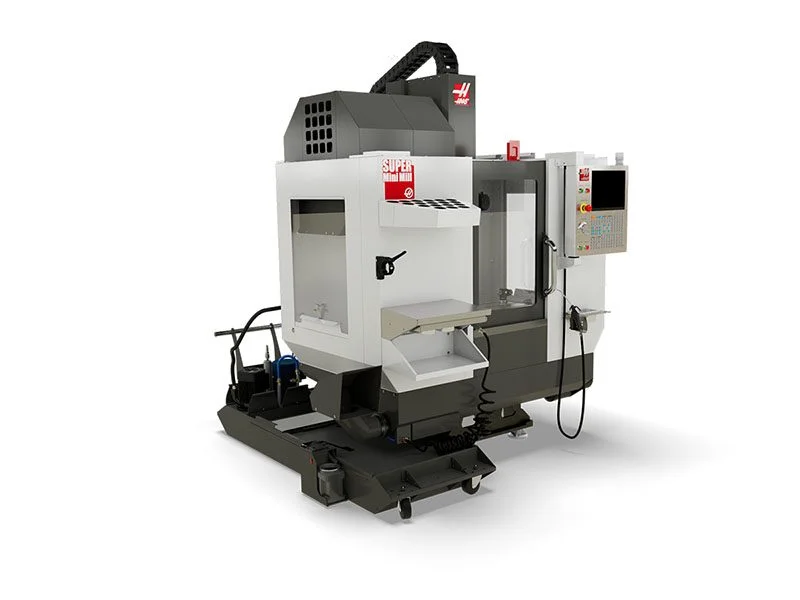

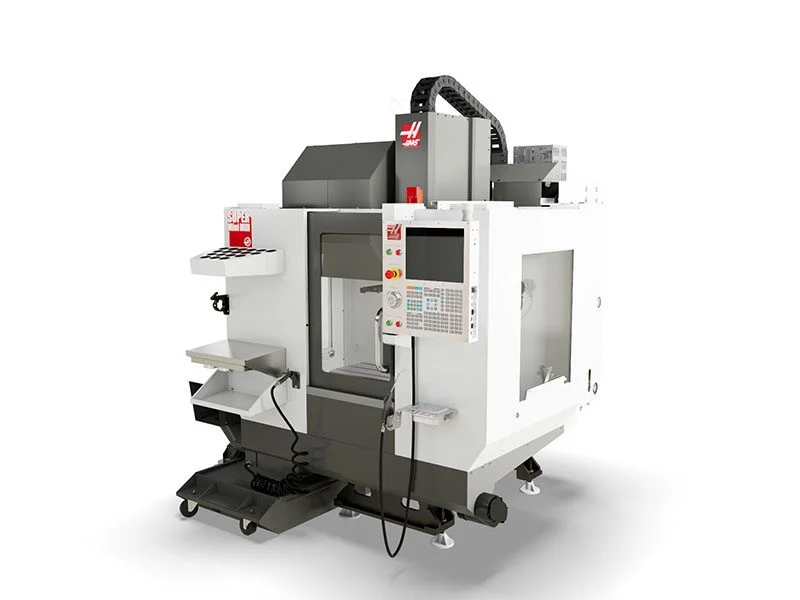

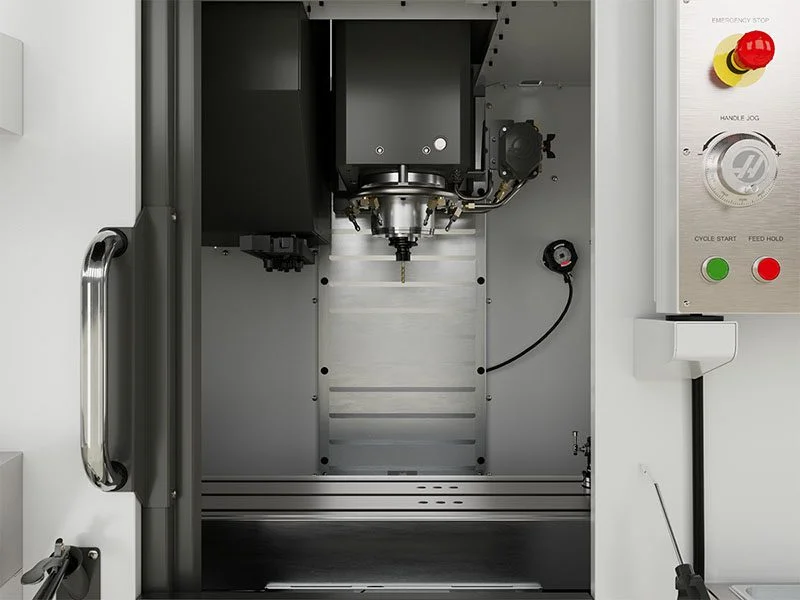

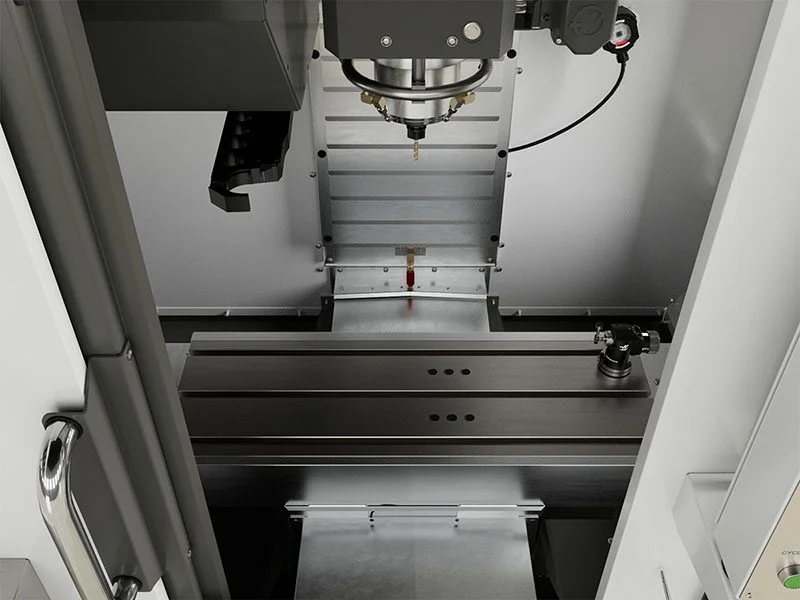

The Super Mini Mill features larger 16" x 14" x 15" (406 x 356 x 381 mm) travels and all-new FEA-optimized base and column castings. It ships with a standard 10,000-rpm spindle rated up to 15.0 hp (11.2 kW) with a CT or BT 40 taper, max torque 22.0 ft-lbf @ 5000 rpm (29.8 Nm @ 5000 rpm), direct speed, belt drive, air / oil injection bearing lubrication, and air cooled spindle cooling. The table measures 36.0 in x 12.0 in with three T-slots (0.626 in to 0.630 in width, 4.33 in center distance) and supports 500 lb (227 kg) evenly distributed. The machine includes a 30+1 side-mount tool changer (max tool diameter full 2.5 in / 64 mm; large 5.0 in / 127 mm adjacent empty), 7.00 in (178 mm) max tool length, 12.0 lb (5.4 kg) max tool weight, 2.80 s average tool-to-tool time, 1200 ipm (30.5 m/min) rapids on X/Y/Z and a max cutting feed of 833 ipm (21.2 m/min). Additional features include a 45-gallon (170-liter) external coolant tank, rear Y-axis washdown nozzle for improved chip flow, an all-new enclosure design with side windows, heavier gauge waycovers, lower table height, and available auto door and auto window. The Super Mini Mill is described as perfect for high-production shops where space is limited and is offered with a space-saving footprint. It is stated to easily interface with Haas robot packages or the Compact APL for fast, easy automation, and the product notes that fast spindle speeds and rapids increase production output; available auto door and auto window are provided for easy automation.
