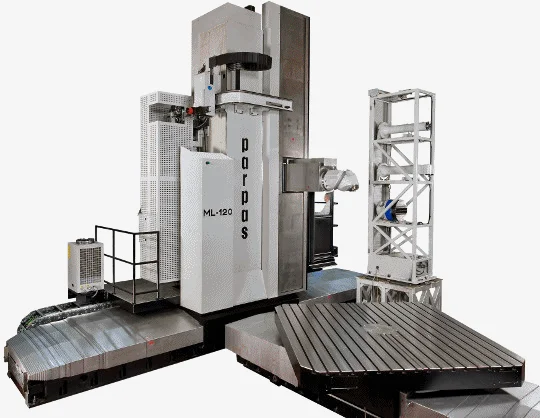

ML-Series

Overview

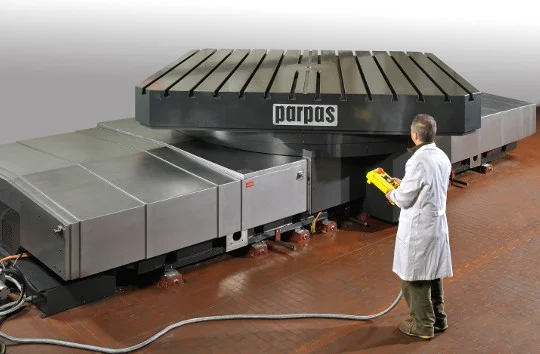

ML-Series is the line of machining centre with “traditional technology”, duly designed for heavy duty machining on hard materials (steel, inconel, titanium, etc.). The concept of the ML line is a modular design to allow large dimensional capacity in machining and the application in various industries. Specifications: - Longitudinal travel: 1100 ÷ 2600 mm - Cross travel: 500 ÷ 700 mm - Vertical travel: 500 • 700 mm - Feeds: 0 ÷ 60000 mm/1` - Brushless AC spindle motor: 29 ÷ 41 kW • 8000 ÷ 20000 rpm Available attachments and accessories shown include Automatic Tool Store, Head TIC 120, Facing Head, Boring Bar, Extension Head TPM 1000/750/400, Head Twist TW 60/150, Orthogonal Head TO 120, Angle Head TPS 1000/750, Boring Bar ML 105, Tilting Tables, Rotating Table TGP 40/60 and Heads Store. Applications listed for the ML-Series include Aerospace · Power Generation · Automotive · Die & Mold · General Engineering. The ML-Series is intended for heavy duty machining on hard materials such as steel, inconel and titanium.
