BRYANT RU1

Overview

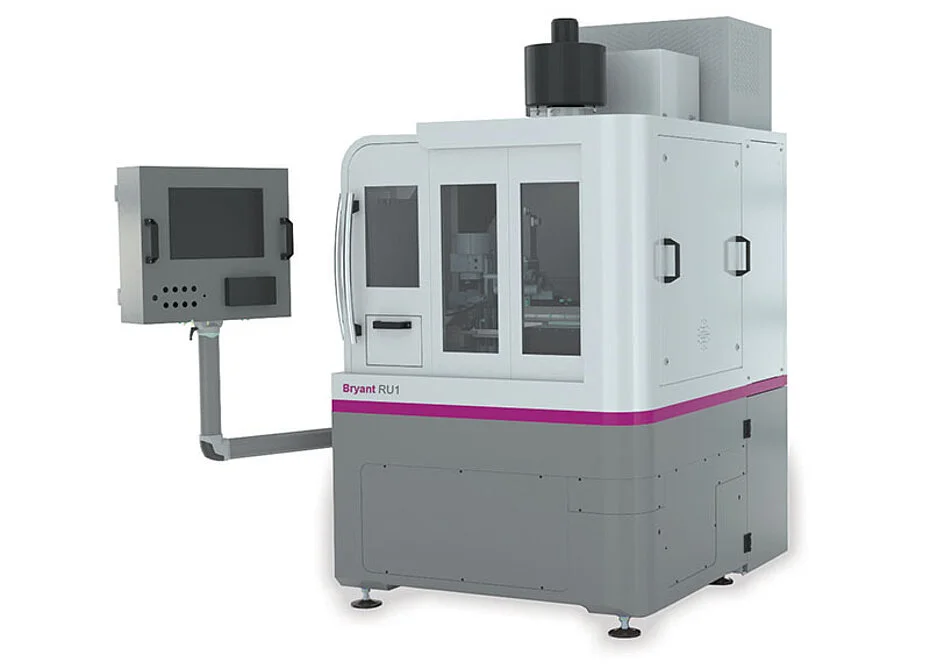

The Bryant RU1 is a flexible, multi-surface, high-precision ID/OD grinding machine. It offers exceptional stiffness and high thermal stability and is described as perfect for ID/OD grinding of small components under 50mm diameter. Grinding capacities are: Max. swing diameter: 127 mm; Max. workpiece length: 63 mm; Max. internal grinding diameter: 38 mm; Max. internal grinding depth: 31 mm. Axes travel X: 101 mm and Z: 101 mm, axis speed (X & Z): 24,000 mm/min, axis arrangement: Stacked, and control: Fanuc i series. Spindle configuration: Max. number of spindles: 1; Max. ID spindle speed: 120,000 rpm; Max. workhead speed: 3,000 rpm. Machine dimensions (W x D x H): 1,200 x 760 x 1,660 mm and machine weight: 3,940 kg. Every Bryant RU1 benefits from optimum dimensional and geometric accuracy, high resolution Heidenhain glass scales, linear motors for all linear axes (no more backlash), a small, compact footprint, full automation, cycle times as low as 8 seconds (depending on the application), and very low maintenance. Built-in safeguards include a hydrostatic round bar infeed and a granite epoxy bed to uphold exceptional stiffness and thermal stability. The Bryant RU1 is ideal for ID/OD grinding of small parts including bearings, valve train components, pumps, thin shafts, etc. It is described as perfect for ID/OD grinding of small components under 50mm diameter and is suitable where high dimensional and geometric accuracy and high thermal stability are required. The system can be engineered to suit your manufacturing process and its fully automated operation removes the possibility for human error while offering cycle times as low as 8 seconds depending on the application.
