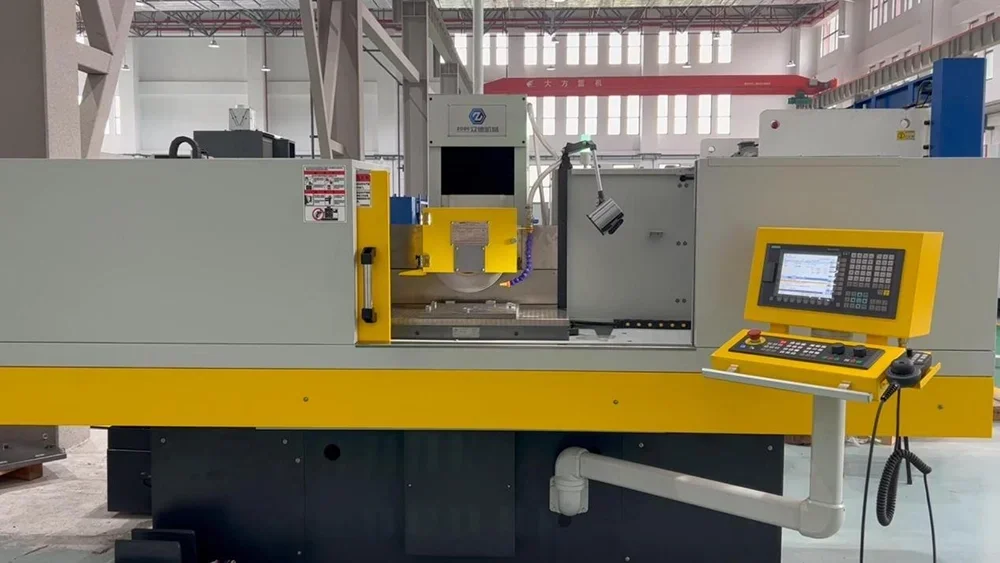

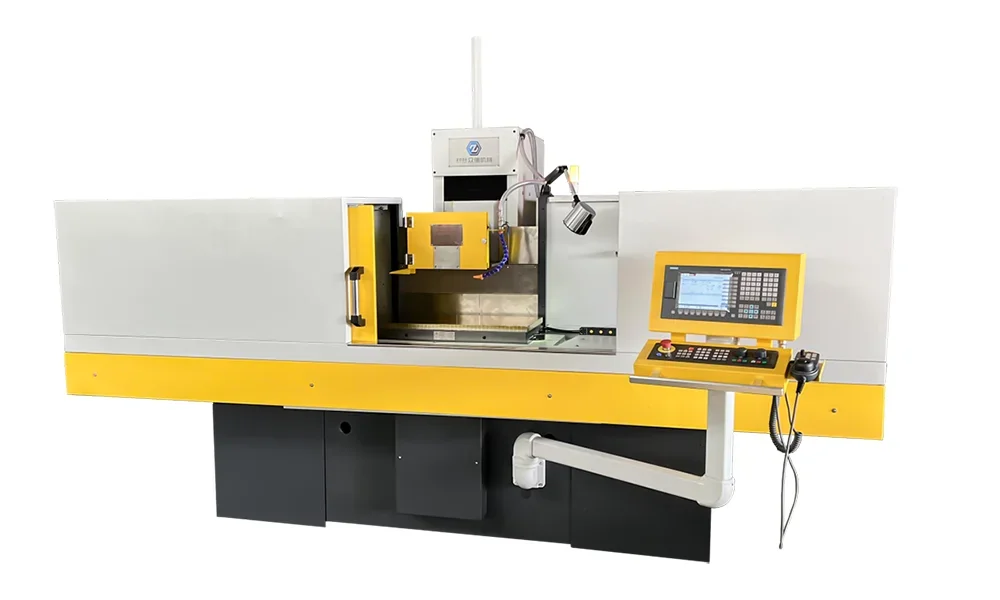

400*800mm 2 AXES CNC SURFACE GRINDING MACHINE SG840CNC-2

Overview

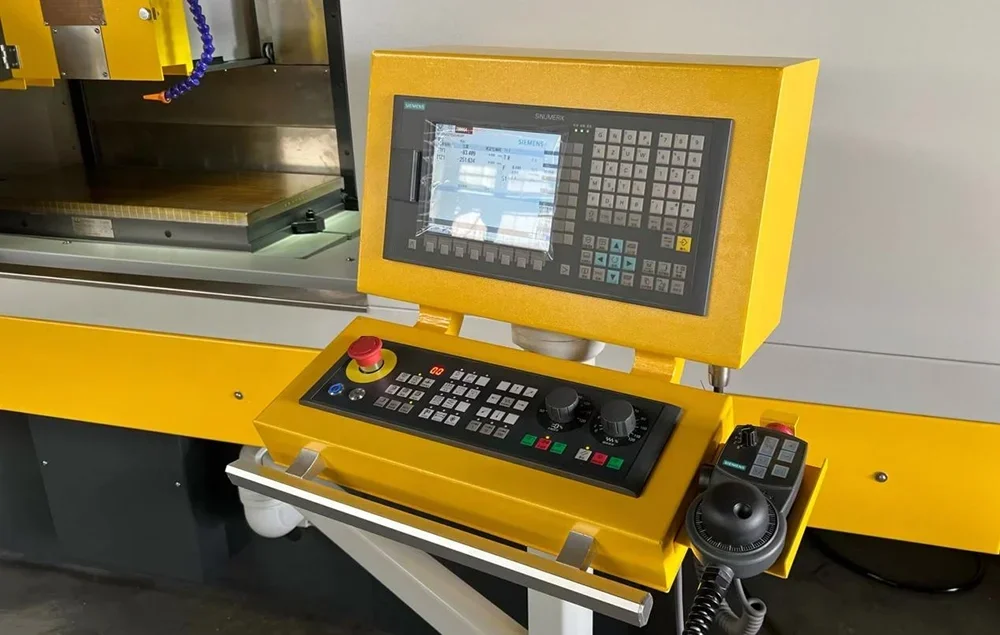

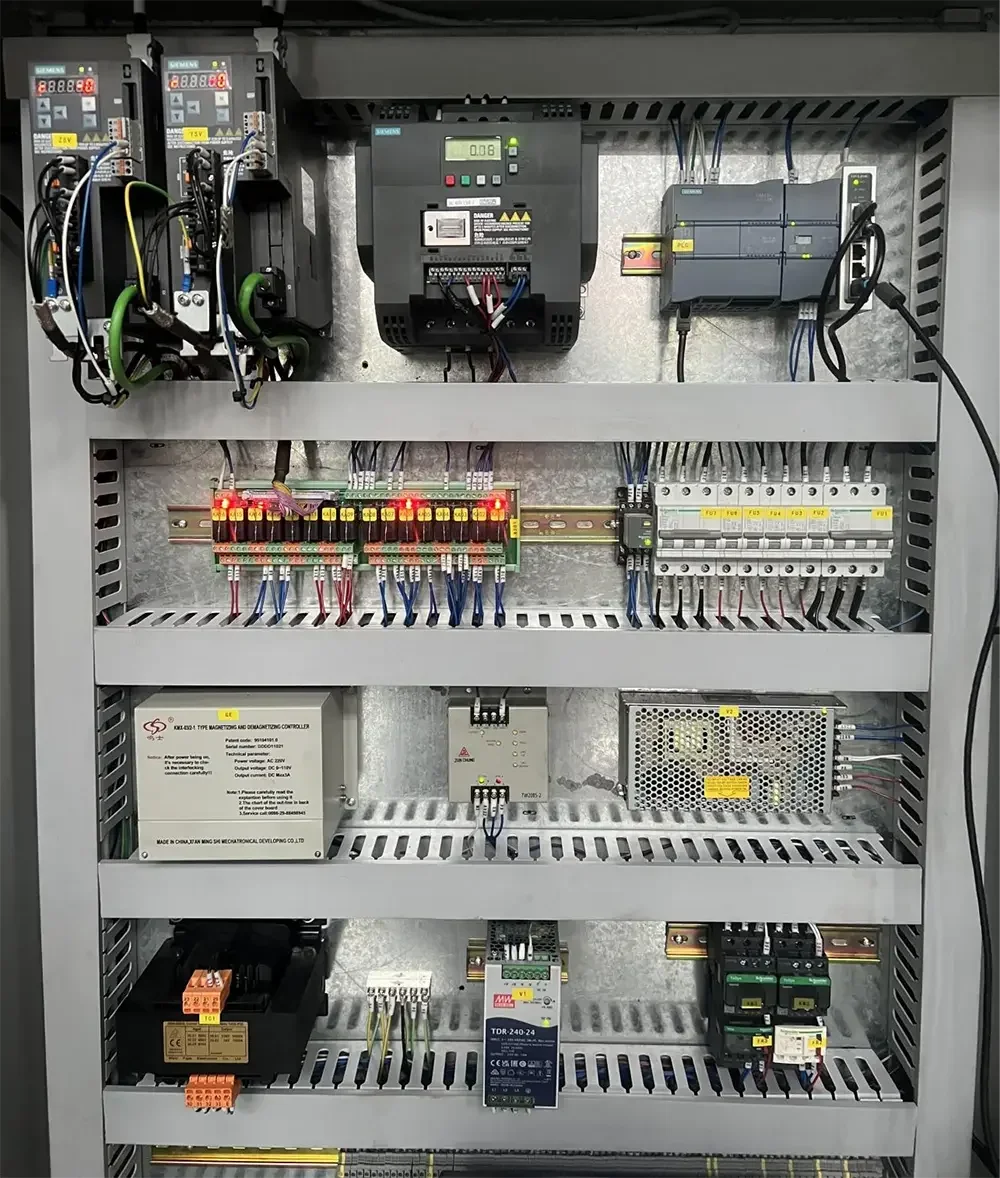

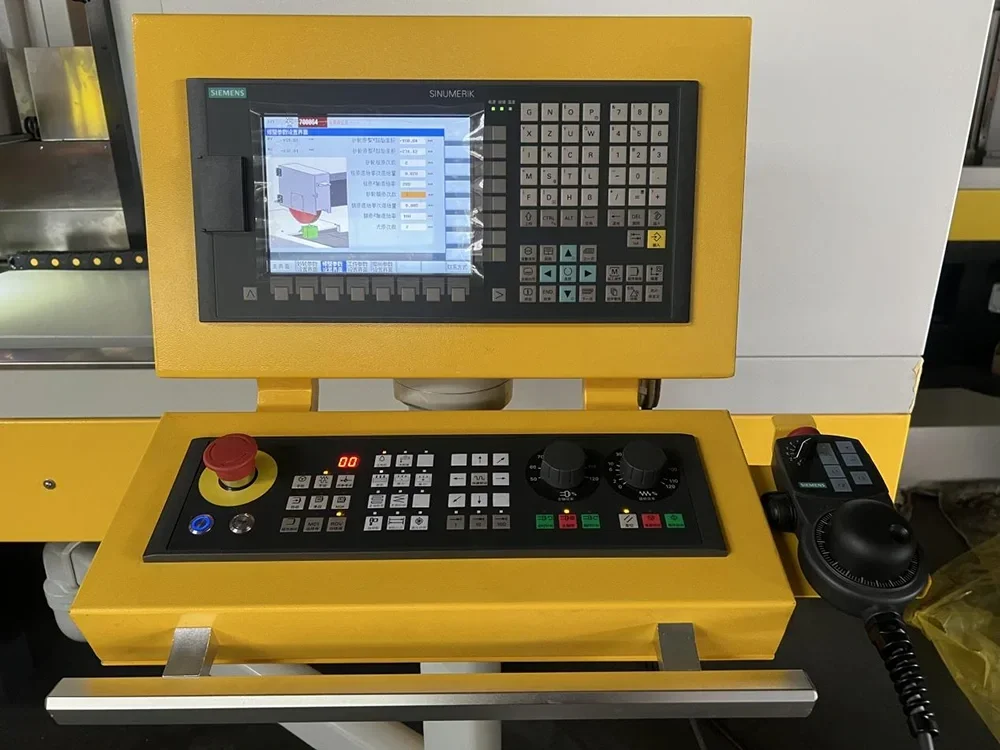

400*800mm 2 AXES CNC SURFACE GRINDING MACHINE SG840CNC-2 is described as German original design constructed from high-strength cast iron, providing strong rigidity for more stable operation and better accuracy. The machine is listed as New, with Certification CE and ISO 9001 and Trademark ZODE; Origin: China and HS Code: 8460191000. Table Size / Grinding Square Meter is 400*800mm and Table Load is 700 kg, with Max. Table Travel 850 mm and Table Speed 0~28 m/min. Distance from Table to Grinding Spindle is 140~525 mm; Vertical Speed is 1~4500 mm/min with Min Down Feedrate 0.001 mm; Max. Cross Travel is 400 mm with Cross Speed 1~4500 mm/min and Min Cross Feedrate 0.001 mm. Spindle Motor is listed as ABB/Siemens with power 4 kw (5.5(Option)) and Spindle Speed 1000~3000 rpm, Spindle Bearing NSK P4 Grade, and Grinding Wheel Dimensions 350*40*127 mm. Cross Feed Motor and Vertical Motor are Siemens Servo Motor; screws include Vertical Screw P2 Grade Ball Screw, Cross Feed Screw P3 Grade Ball Screw and X Axis Screw P3 Grade Ball Screw; Power of servo motor: 1 kw; 1 kw. CNC Controller is Siemens 828d and PLC Brand is Siemens PLC; Main Electrics are Schneider Electrics. Total Power is 9kw, Power of hydraulic motor 2.2 kw, Floor Space 3800*3000mm, Specification 3800*2250*2200mm, and Transport Package is Wooden Case. Standard accessories include Grinding wheel, Wheel flange, Wheel balancing base, Wheel balancing arbor, Extractor, Diamond dresser, Leveling pad, Anchor bolt, Tool box with tools, and Electricmagneticchuck. Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, and mould parts processing industry. The machine tool can grind steel, iron, ceramics and non-ferrous metal parts. CNC configuration can be set for 2-axis and 3-axis profile forming grinding suitable for grinding various special-shaped surfaces and for high hard materials such as ceramics and cemented carbide. Available processing methods listed include rectangular surface grinding, Z type surface grinding, grooving, boss mode, multi groove grinding, step mode, arc grinding, curve grinding, and optional fourth axis indexing grinding of circular work piece.
