High-Performance (P-Series) Shakers

Overview

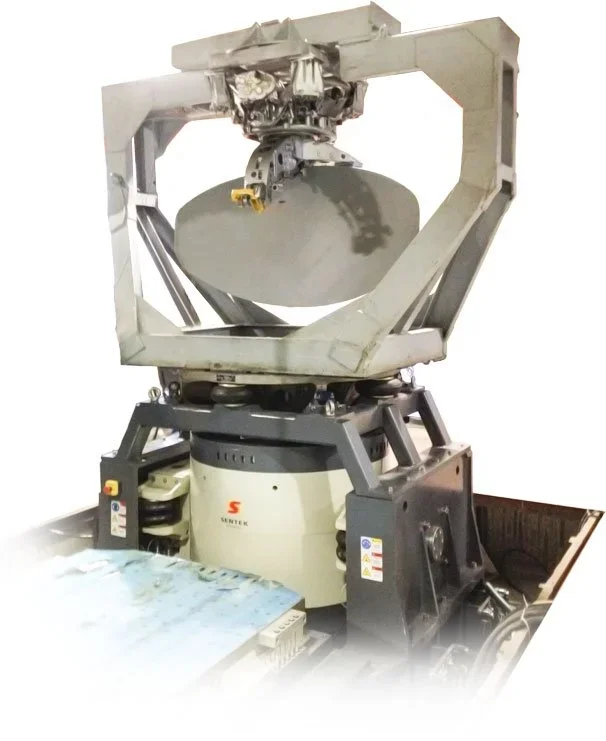

The P-Series is a water-cooled electro-dynamic shaker range covering 35 kN (7,700 lbf) to 80 kN (17,600 lbf). It is specifically designed for high-acceleration vibration test requirements with 150 g capability. Systems tested & assembled in the USA coming soon. Check here for availability. - P3532M: Sine Force Peak 34.3 (7,711) kN (lbf), Random Force rms 24 (5,395) kN (lbf), Shock Force (6 ms) 68.6 (15,422) kN (lbf), Frequency Range 2 - 2400 Hz, Armature Diameter 320 (12.6) mm (in), Effective Armature Mass 23.3 (51.4) kg (lb), Max Static Payload 500 (1102) kg (lb). - P6034M: Sine Force Peak 58.8 (13,218) kN (lbf), Random Force rms 39.2 (8,812) kN (lbf), Shock Force (6 ms) 117.6 (26,437) kN (lbf), Frequency Range 5 - 2300 Hz, Armature Diameter 340 (13.4) mm (in), Effective Armature Mass 40 (88) kg (lb), Max Static Payload 600 (1323) kg (lb). - P8044A: Sine Force Peak 78.40 (17,600) kN (lbf), Random Force rms 78.40 (17,600) kN (lbf), Shock Force (6 ms) 156.80 (35,200) kN (lbf), Frequency Range 5 - 3000 Hz, Armature Diameter 445 (17.5) mm (in), Effective Armature Mass 53 (117) kg (lb), Max Static Payload 800 (1760) kg (lb). Continuous Displacement 51 (2.0) mm (in), Shock Displacement 51 (2.0) mm (in), Max Velocity 2.0 (78.7) m/s (in/s), Max Acceleration Sine Peak 1470 (150) m/s2 (g). The P-Series is intended for high-acceleration vibration test requirements, providing up to 150 g of acceleration capability. The models supply specified sine, random, and shock force capabilities for vibration testing across their respective frequency ranges. Systems are offered as water-cooled electro-dynamic shakers, with availability noting that systems tested and assembled in the USA are coming soon.
