Intlvac Thin Film CorporationNanoquest I Ion Beam Etching & Deposition System

Nanoquest I Ion Beam Etching & Deposition System

Intlvac Thin Film Corporation

Categories:
Subtractive Manufacturing

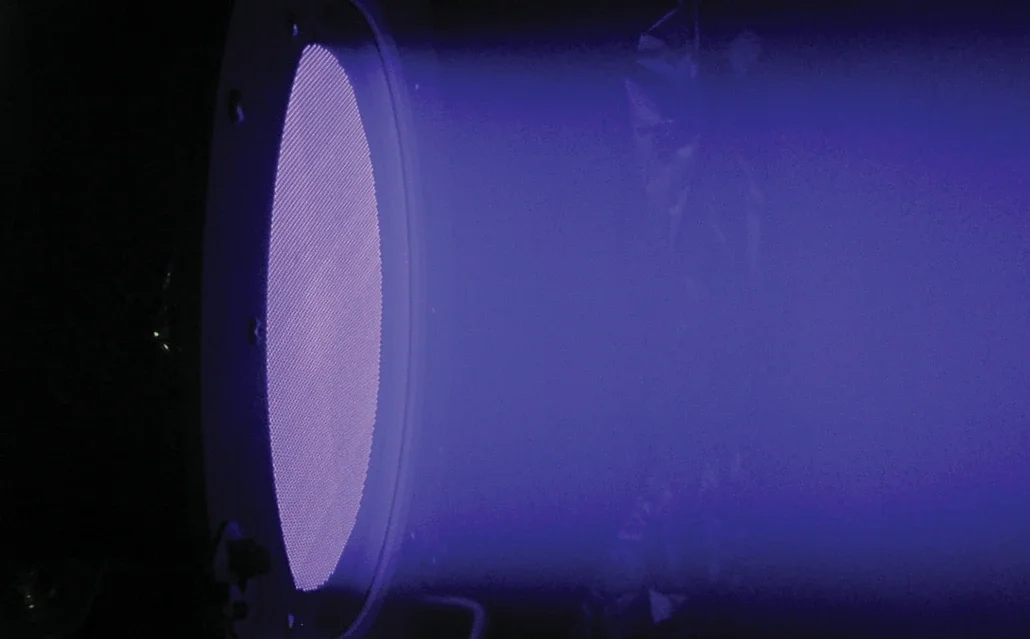

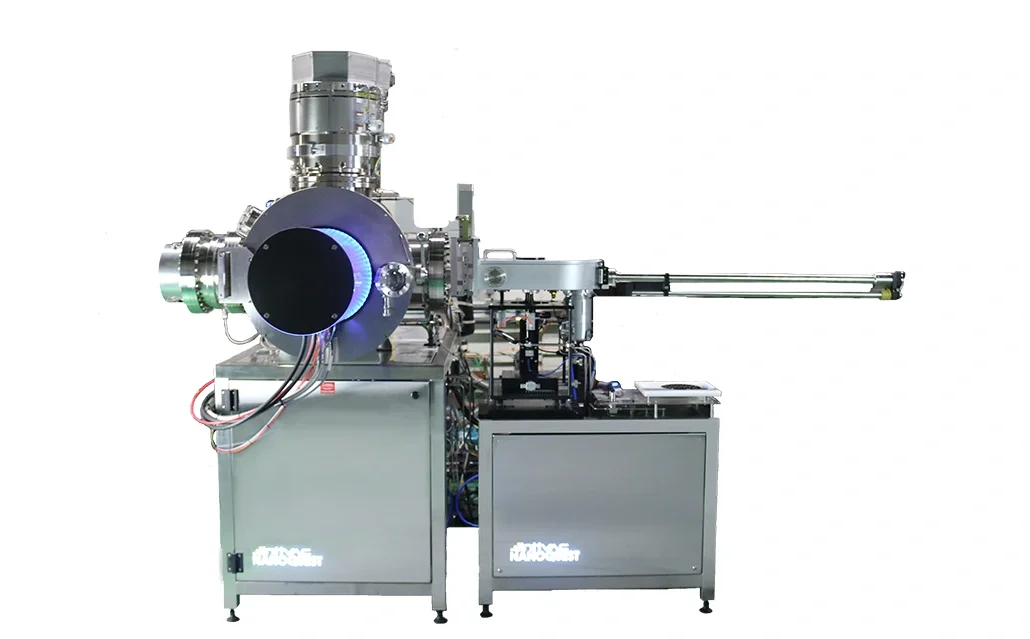

Equipment view 1Equipment view 2

Model Overview

The Nanoquest I Ion Beam Etching & Deposition System by Intlvac Thin Film is an ion beam development platform designed for research and development and supports both etching and thin film deposition. The system provides independent control of ion energy, ion current density, and beam incidence angle...

Technical Specifications

Rotation0–45 RPM with offset control for uniform results.
Control InterfaceAutomation is handled via a LabVIEW-based interface, offering complete system management within an intuitive Windows environment.
Integrated ShutterPneumatically operated with optional beam current probe.
Vacuum PerformanceAchieves 1×10⁻⁶ Torr in under 30 minutes and reaches 5×10⁻⁸ Torr in 24 hours using dry pumps and either a Cryopump or Maglev Turbo Pump.
Water-cooled StageDirect cooling ensures thermal stability throughout processing.

Similar models

Fengbao New Advanced Boring Mill FTM-X4 1

Fengbao New Advanced Boring Mill FTM-X4

The Fengbao New Advanced Boring Mill FTM-X4 features a worktable size of 1470x320 mm and bed travel of 920x410x400 mm, suitable for precision machining in various industrial applications.

Infinity Ion Beam Etch (IBE) 1

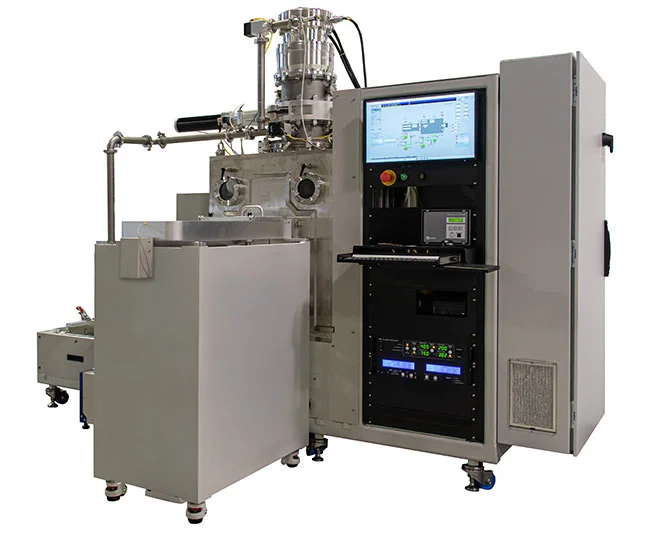

Infinity Ion Beam Etch (IBE)

The Infinity Ion Beam Etch (IBE) is a versatile wafer etch system for semiconductor and MEMS applications, supporting high-throughput processing with advanced endpoint detection and customizable configurations.

HXVB20065L-B Ring Wire Cutting Machine 1

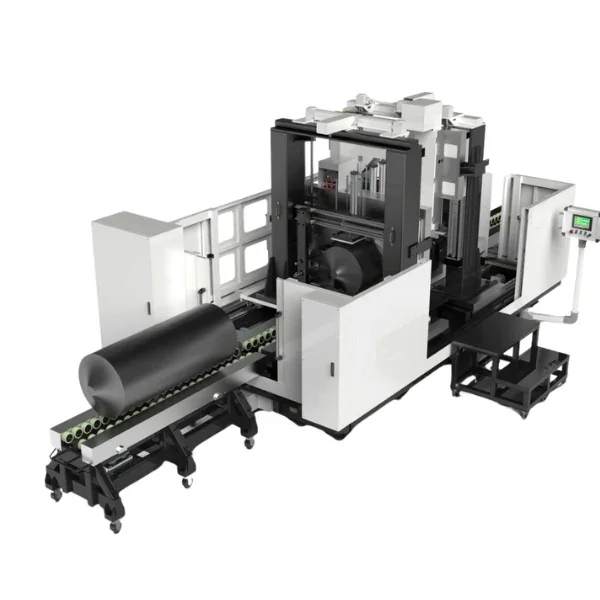

HXVB20065L-B Ring Wire Cutting Machine
