2012 IMC Calendering Machine

Overview

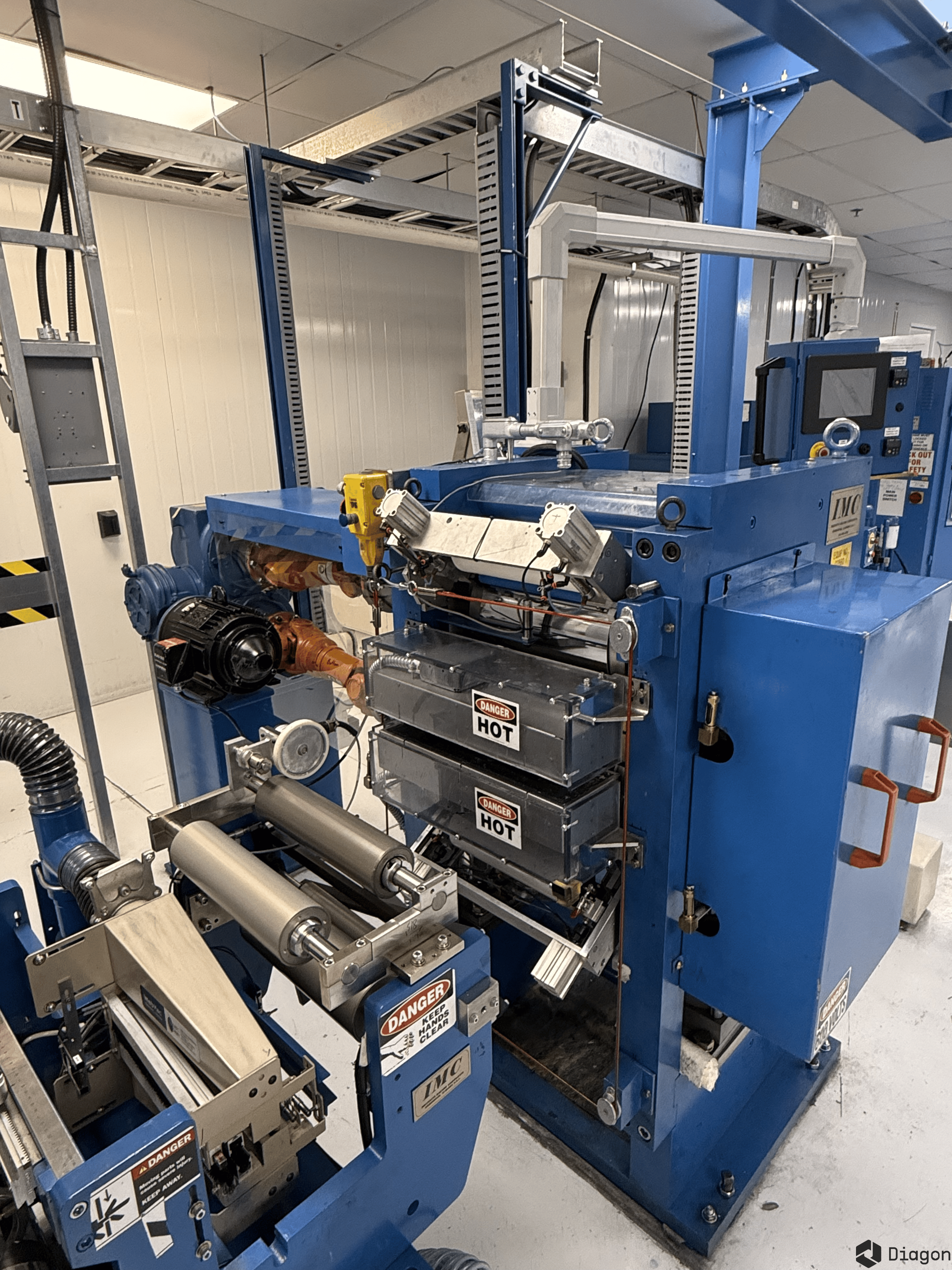

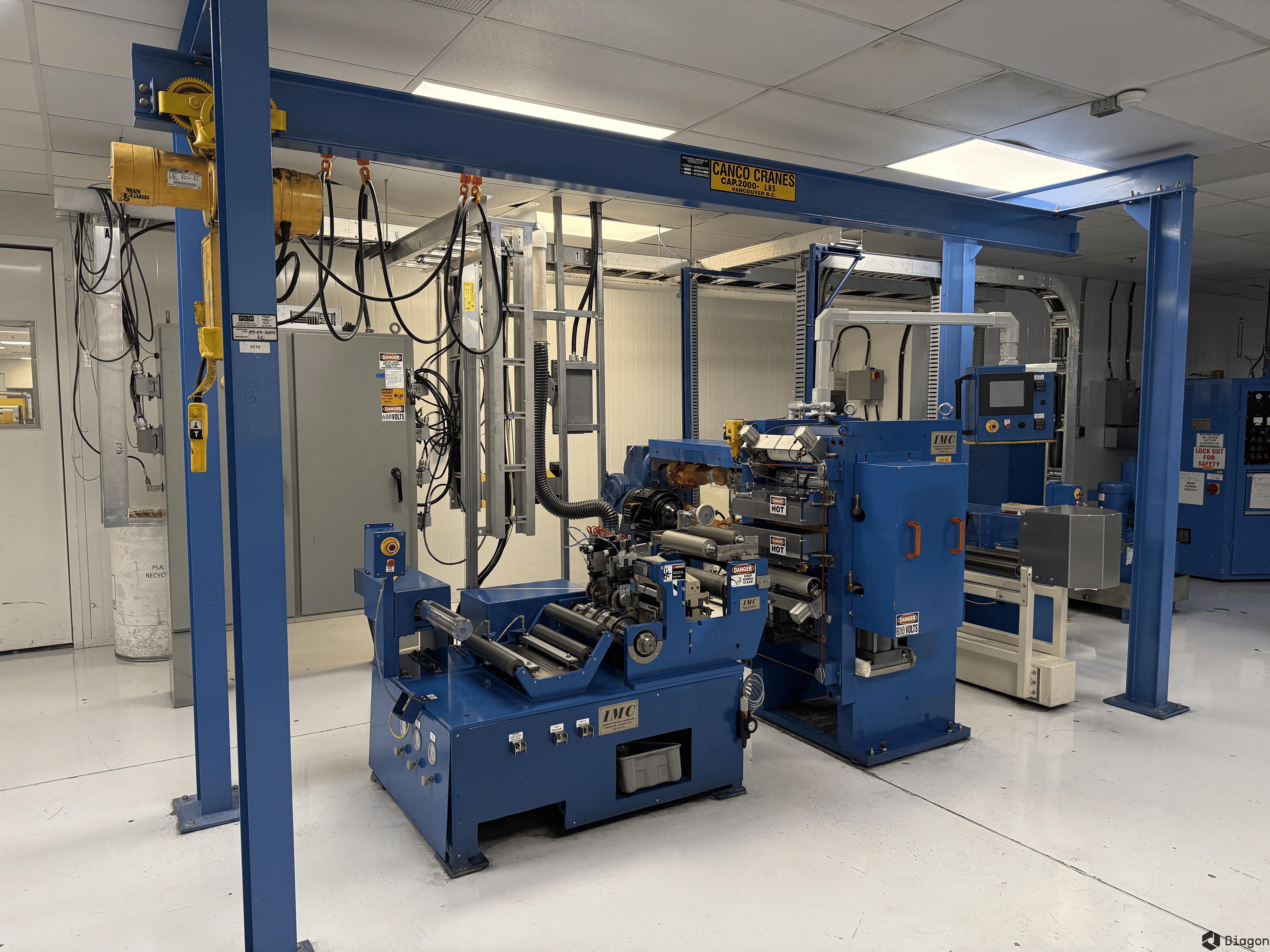

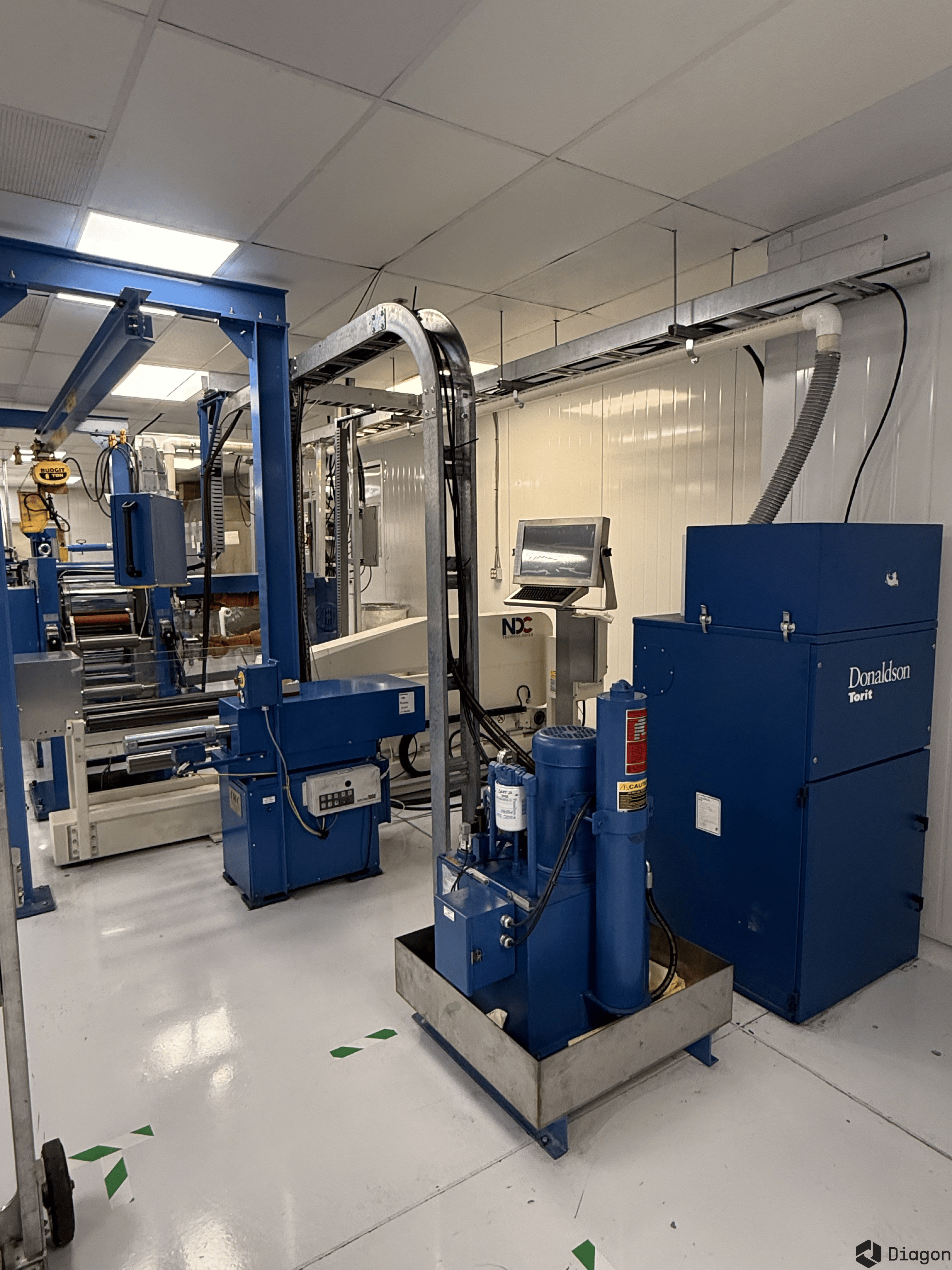

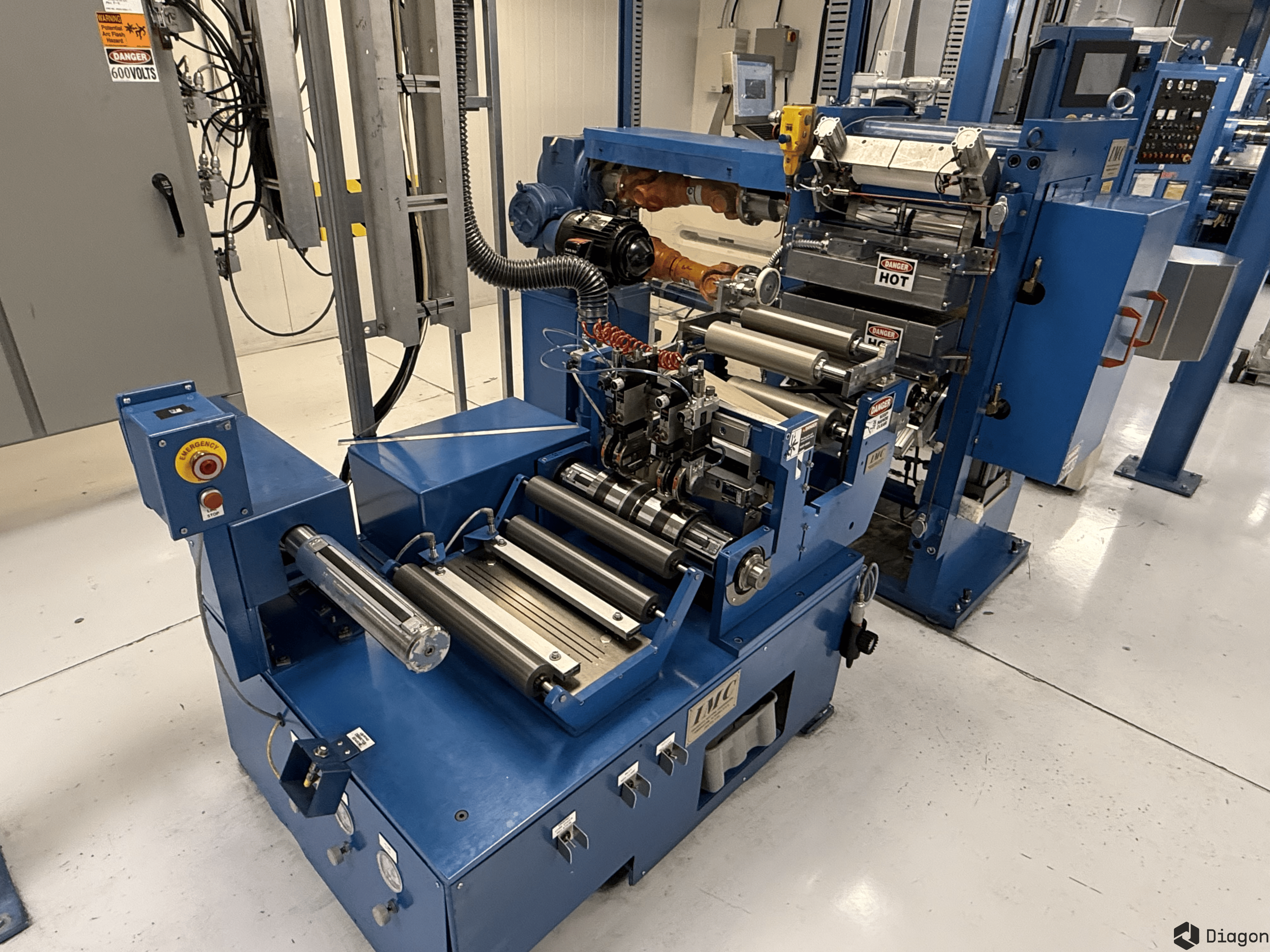

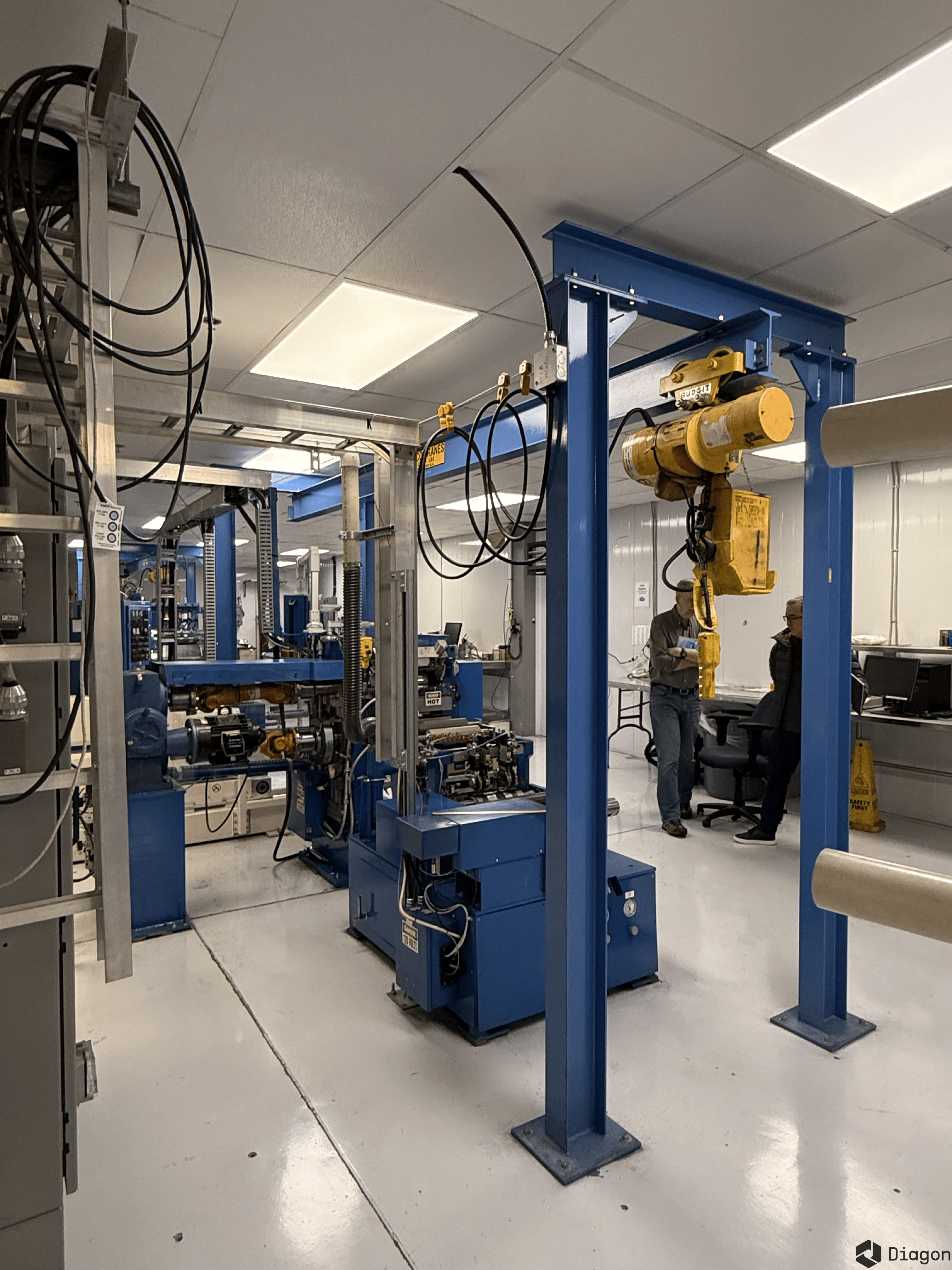

2012 IMC Calendering Machine is a precision roller pressing system designed for research and pilot-scale electrode manufacturing, offering controlled compression processing for battery materials up to 300mm web width. *** - This calendering line is equipped with vacuum pump and hydraulic systems.*** *** - This calendering line not require specialized slats for concrete *** *** - Listing also includes crane shown in the pictures.*** ***- Estimated Hours of Operation: 7,800 hours.*** ## Key Features - Dual hydraulic cylinder system delivering up to 3,000 PSI through 5" diameter actuators for precise pressure control - Temperature-controlled calendering rolls (12" diameter x 12" working width) with capability up to 150°C - Integrated web steering mechanism at rewind station for enhanced material tracking - Air-expansion shafts (3" O.D.) on both unwind and rewind stations for optimal tension control - Process speed control ranging from 0 to 5.0 meters per minute for varied material requirements - Material handling capacity up to 50 kg roll weight for extended production runs - Operated 12 Hours Per Week - In Service until 2 Months Ago ## Key Technical Specifications |||| |:--|:--|:--| |**Machine Size**|6.63 M (L) x 1.595 M (W) x 2.448 M (H)|| |**With NDC Thickness Gauge**|Additional 0.8 M in Length|| |**Max Web Width**|300 mm|| |**Max Web Speed**|5.0 m/min|| |**Max Roll Temperature**|150°C|| |**Calender Diameter**|12 inches|| |**Calender Working Width**|12 inches|| |**Hydraulic Force**|2 × 3,000 PSI|| |**Hydraulic Cylinder Diameter**|5 inches|| |**Unload Roll Capacity**|Max 50 kg|| |**Unload Shaft Diameter**|3 inches|| |**Rewind Shaft Diameter**|3 inches||
