AbrasiMet XL Pro

Overview

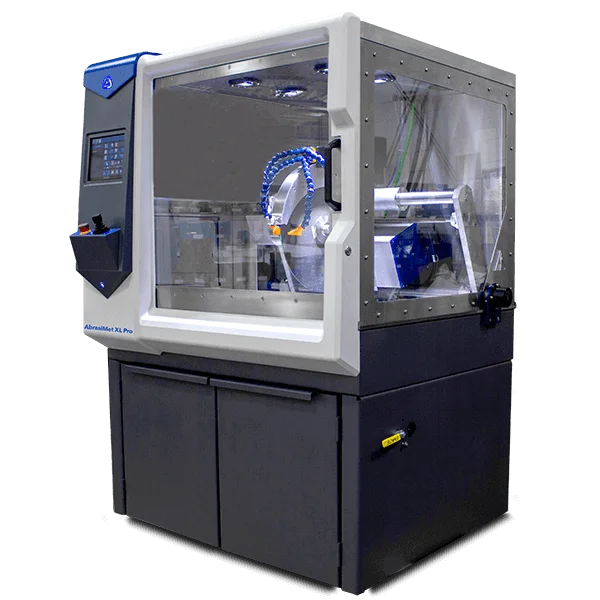

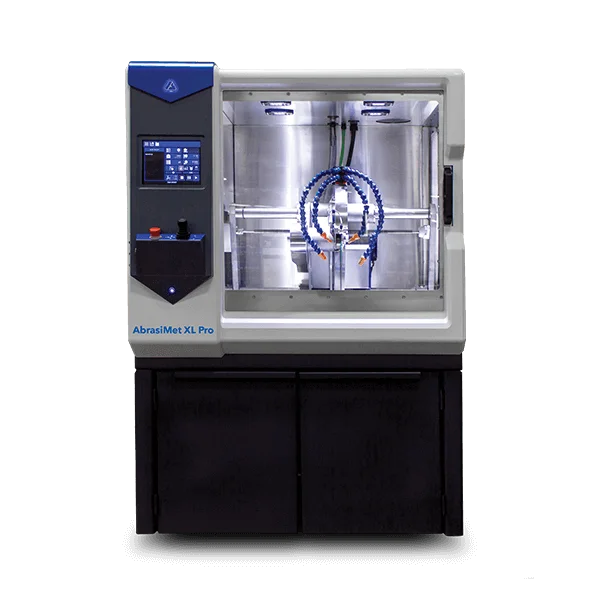

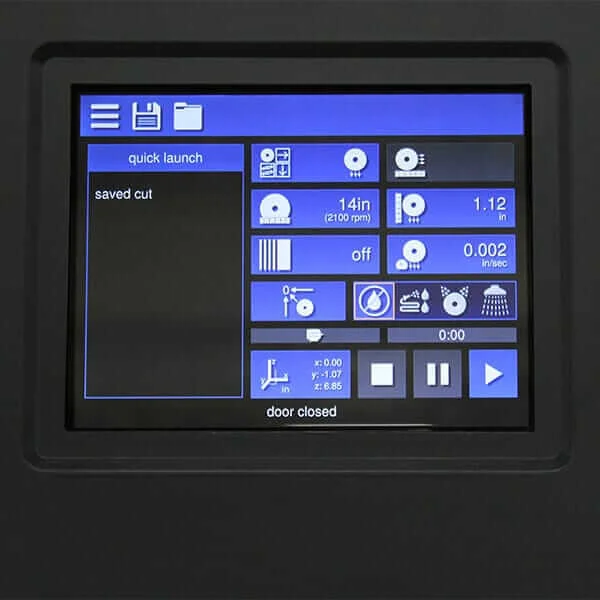

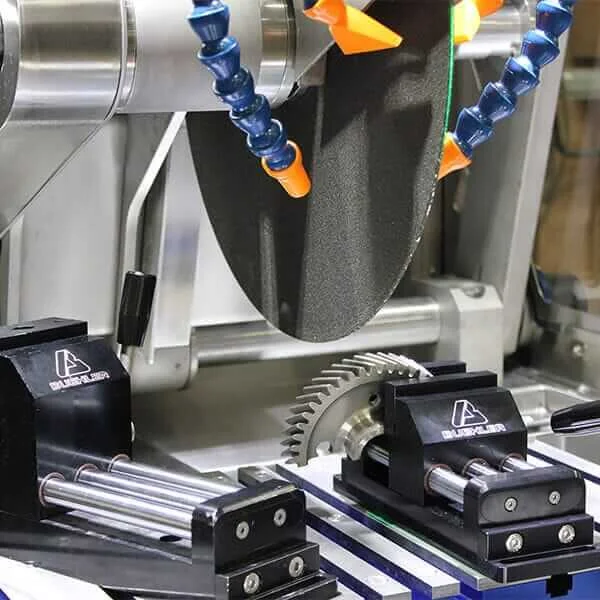

The AbrasiMet XL Pro is a floor-standing automatic abrasive cutting machine with a 10kW (13.4Hp) motor and a three-phase power supply of 380~480VAC, 50/60Hz; maximum current 25A 460VAC. It accepts blade sizes 14 inch (354mm), 16 inch (406mm), and 18 inch (457mm). Available spindle speeds are 2100rpm, 1900rpm and 1860rpm, and reported cutting capacities are 127mm, 152mm and 178mm. Operation modes include manual and automatic, and the machine supports programmable cutting programs for cutting conditions and continuous cutting sequences. Cutting methods listed are Chop, Y-Feed and Planer Pulsing, with blade/table movement in X, Y and Z directions and a T-nut size of 12mm. Built-in features include an intuitive touch-screen, bright chamber lighting, a large viewing window, a SmartCut function and the ability to program and run multiple cuts in sequence. Overall dimensions are W1372 × D1288 × H1905mm and the unit weight is 800kg. Consumables and accessories listed for the model include vise, abrasive blades, cutting fluid and a mist extractor. The AbrasiMet XL Pro is a floor-standing automatic abrasive cutting machine designed for use with 14 inch (354mm), 16 inch (406mm) and 18 inch (457mm) blades to section larger-diameter samples. It is specified to provide consistent and repeatable cut quality for larger diameter samples. An intuitive user interface with programmable methods allows creation and storage of multiple sectioning programs for quick access, and the machine’s large chamber together with the 10kW motor enables fast sectioning of large workpieces; the product description states it is intended for use in demanding environments.
