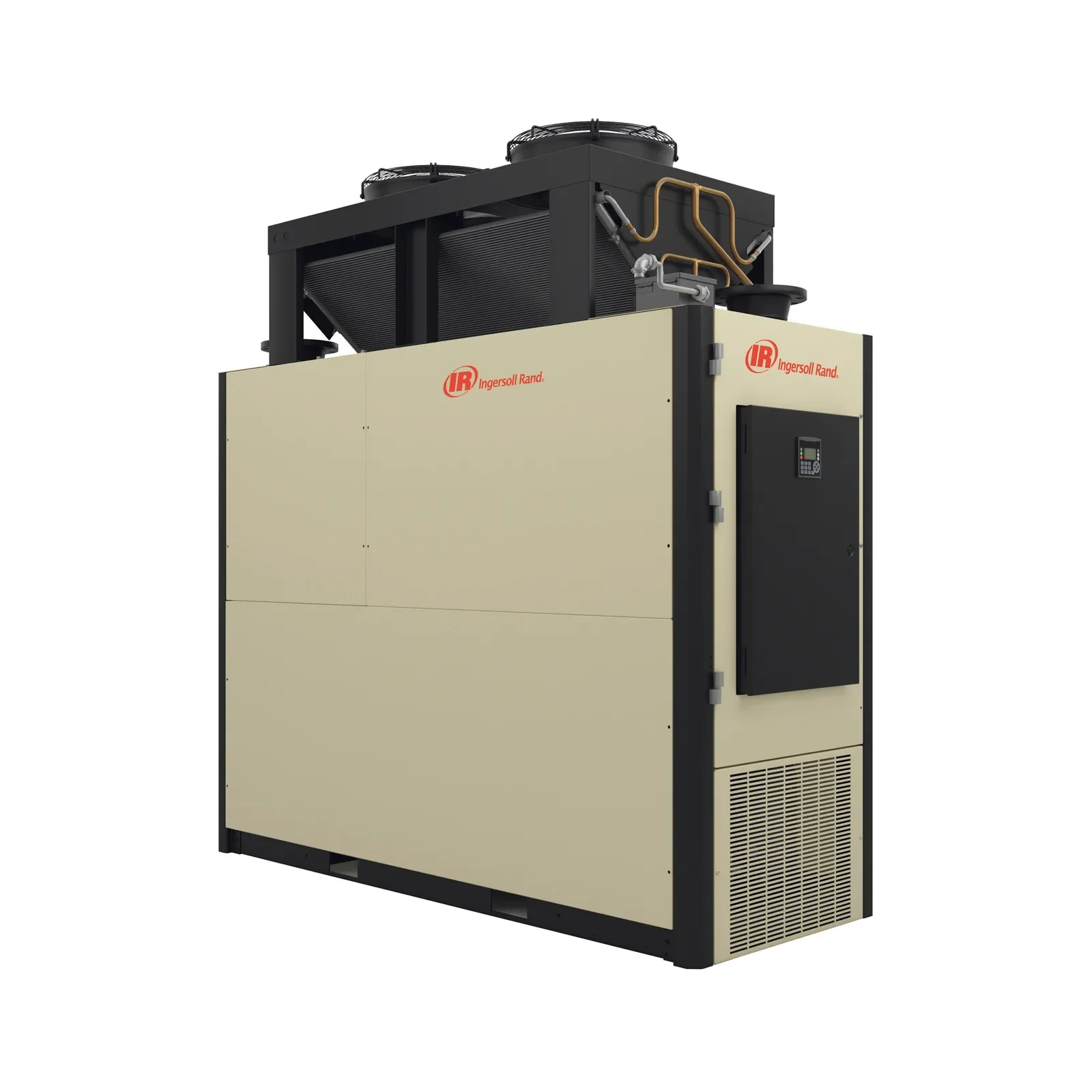

Large Cycling Refrigerated Dryers 3,000-40,000 m3/hr (1,800-24,000 cfm)

Overview

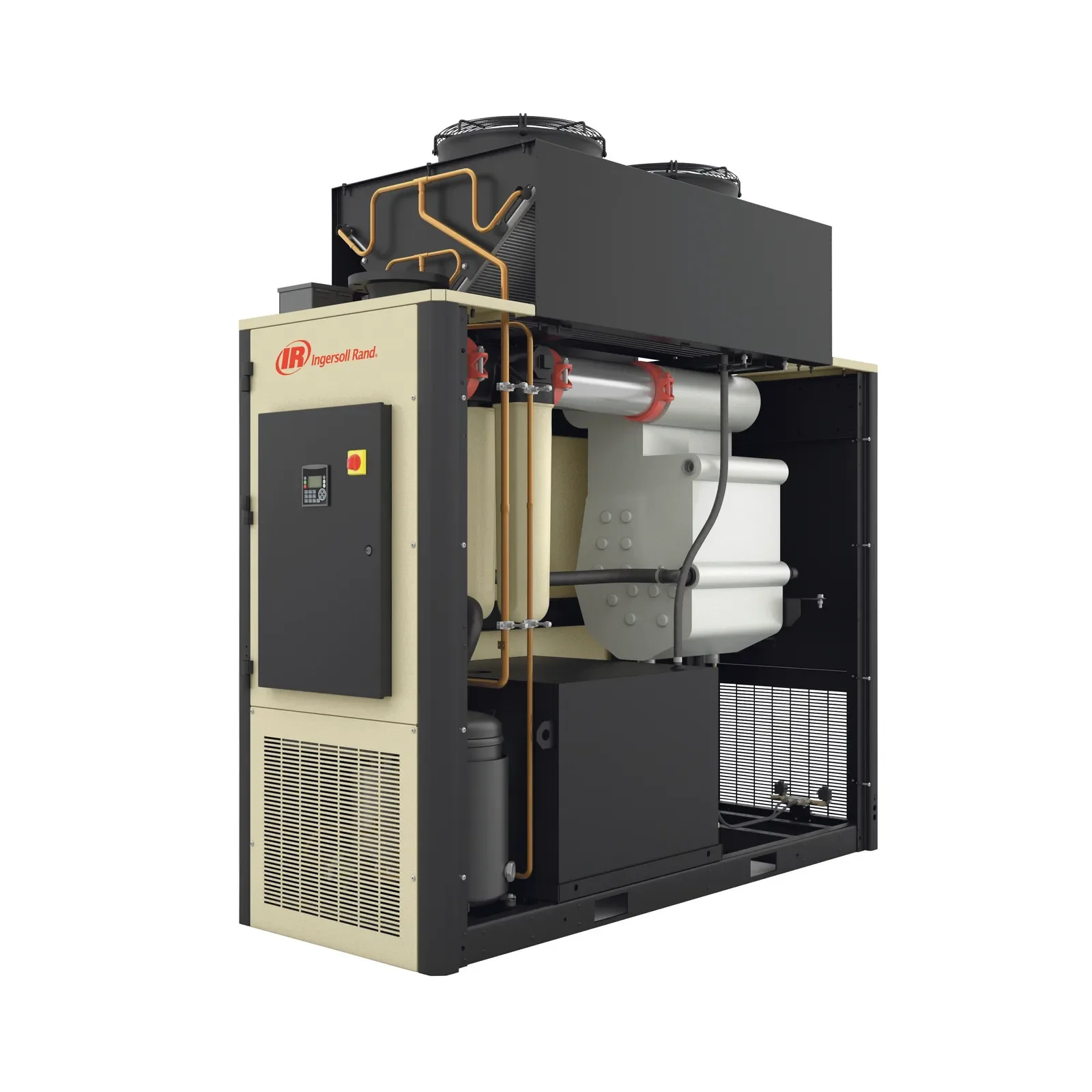

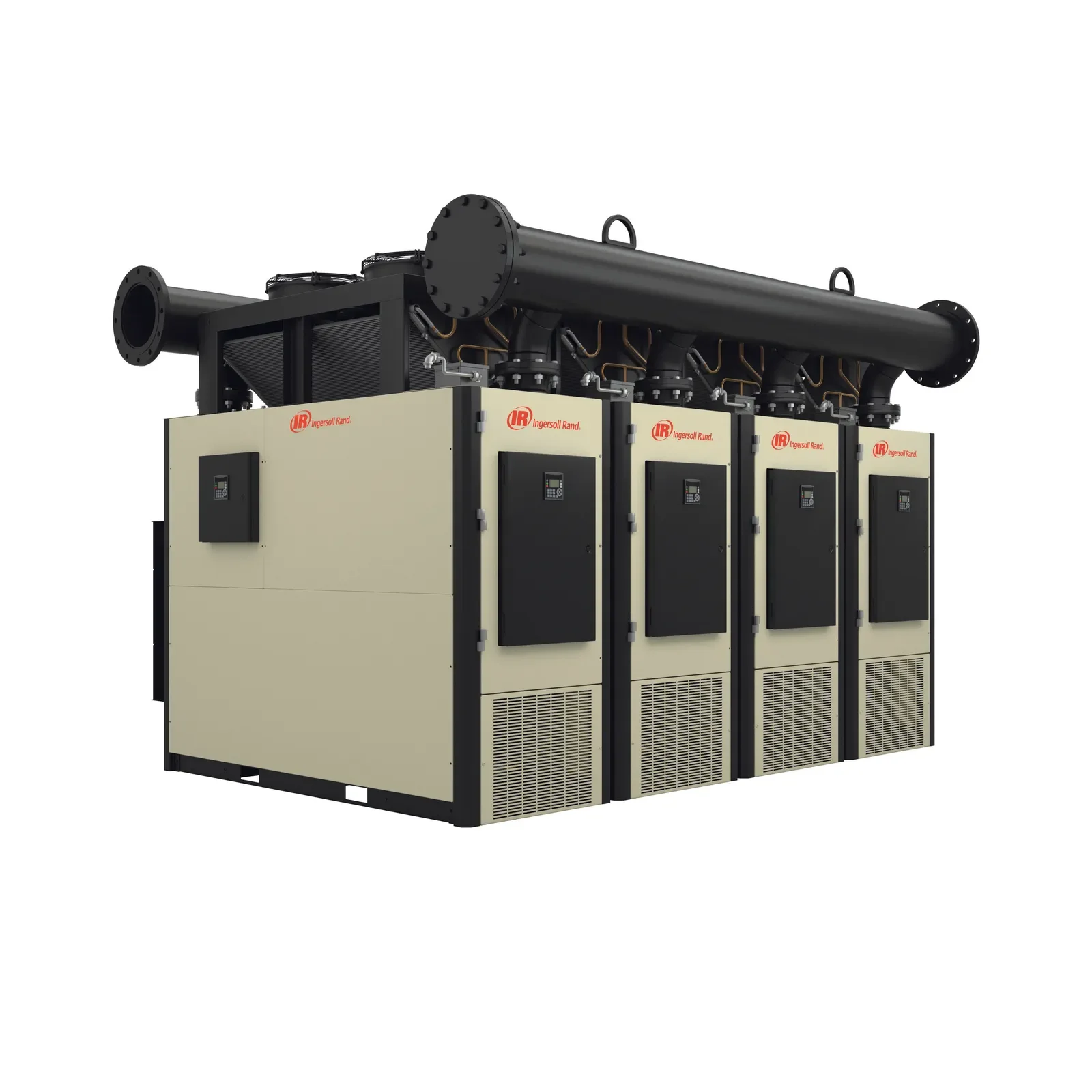

Ingersoll Rand Large Cycling Refrigerated Dryers 3,000-40,000 m3/hr (1,800-24,000 cfm) provide high-quality compressed air reliably and efficiently. The product line features a patent-pending large capacity heat exchanger (LCX) that delivers 18 - 58% energy efficiency improvement, 25% greater flow capacity and over 1,000% improved thermal conductivity. The dryers offer ISO Class 2-4-3 protection and include integrated pre-filters and redundant no-loss drains monitored by a smart controller. The refrigeration circuitry uses R410A refrigerant, requiring over 45% less charge and providing up to 47% lower Global Warming Potential (GWP) compared with R404A, and the design reduces footprint to simplify installation. An optional high-pressure configuration is available for applications up to 680 psi and a multiplex modular design supports multiple independent air treatment modules for requirements over 3,000 scfm (5,000 m3/hr). The dryers are designed to maximize energy savings in systems with fluctuating demand, delivering up to 50% lower energy consumption through the large capacity heat exchanger. The optional high-pressure configuration supports demanding applications requiring up to 680 psi. The multiplex modular design and reduced footprint address installations that need multiple, independent air treatment modules for flows over 3,000 scfm (5,000 m3/hr) while supporting sustainability goals via reduced refrigerant charge and lower GWP.
