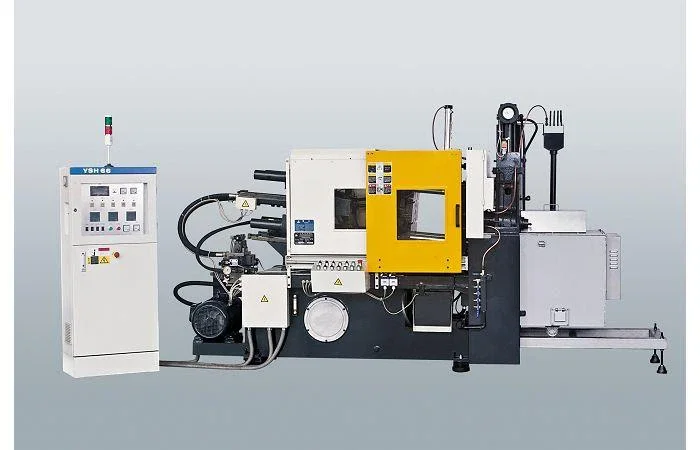

66T Zinc Alloy Hot Chamber Die Casting Machine

Overview

66T Zinc Alloy Hot Chamber Die Casting Machine (YSH66 680kN /66Ton) is described as a small continuous zinc alloy hot chamber die casting machine suitable for zinc and lead alloy casting. The machine listed die locking force is 680 kN and the manufacturer states they can supply machines with die locking force from 160kN to 1900kN. Key mechanical specifications include stroke of moving platen 240 mm; inner space between the bars (HxV) 320x320 mm; thickness of die block (HxV) 150x350 mm; injection force 66 kN and injection stroke 130 mm; ejection force 60 kN and ejection stroke 60 mm; diameter of shot sleeve 50 mm; and max projecting area of casting 202 cm2. Hydraulic and power specifications include working pressure of vane pump 12 MPa and motor power 11 kW, while metal handling and auxiliary values are dosage of fluid metal per shot (zinc) 1.5 kG, effective volume of crucible(zinc) 250 kG, oil consumption of burner 1.5-6.0 kg/h, volume of oil tank 280 kG, machine weight 3950 kG, and overall dimensions (L*W*H) 3900x1500x2000 mm. The product description states the machine is computer-programmed, energy saving, supports trouble location and remote control via communication net, has stable and reliable performance using high quality electric and hydraulic units, and allows process parameters to be designated through a programming controller; it is described as convenient, time-saving and effortless in operation and maintenance. The machine is suitable for die casting of non-ferrous metal with low melting point, such as Zn, Pb and their alloys. The listing states it is widely applied for die casting of fittings of automobile and motorcycle, parts for instrument or meter, and household appliance hardware of daily necessities. The description also states the machine can cast various final product shapes in zinc and lead alloys and can be used with special moulds to produce specific parts.
