MF Series Cup Forming, Filling and Sealing

Overview

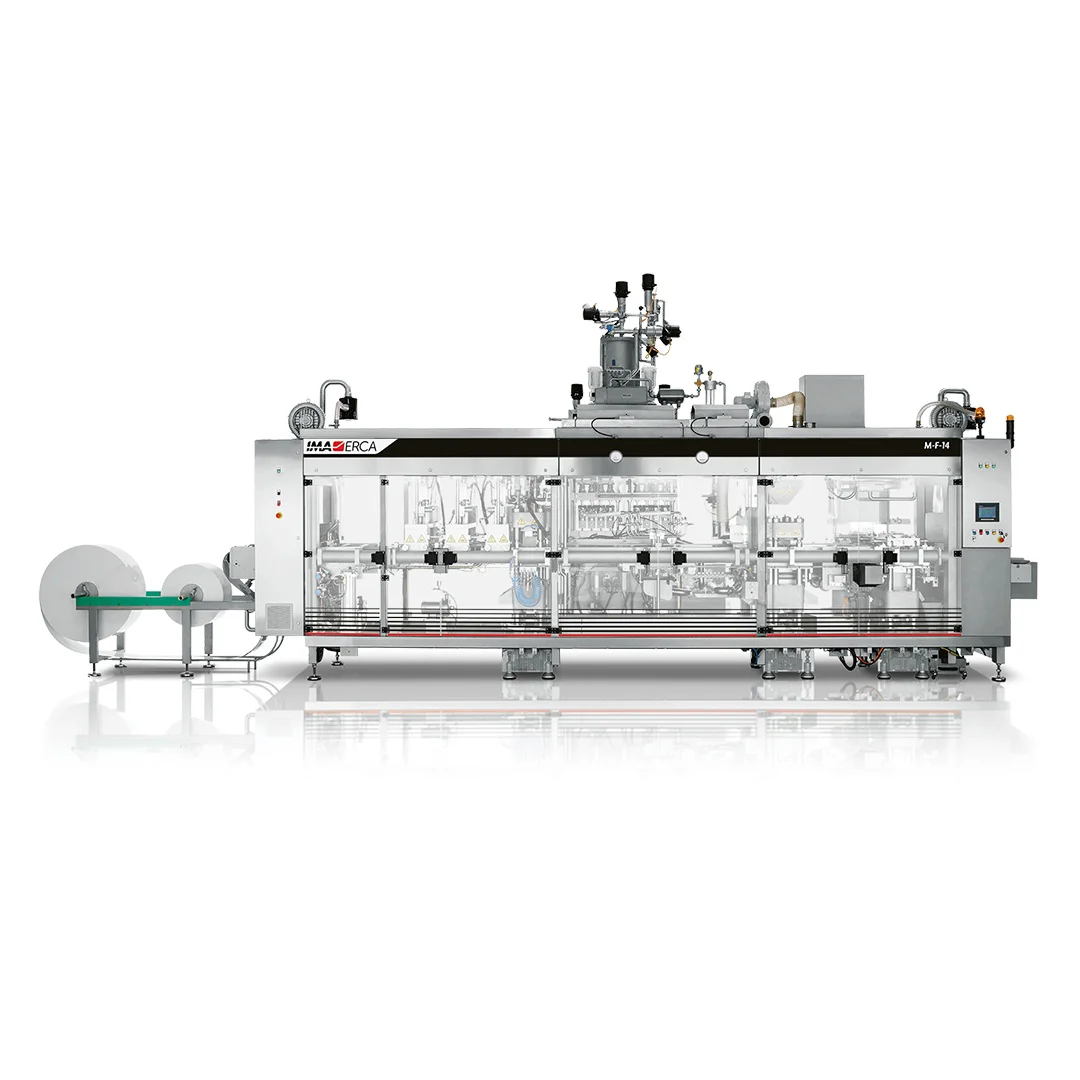

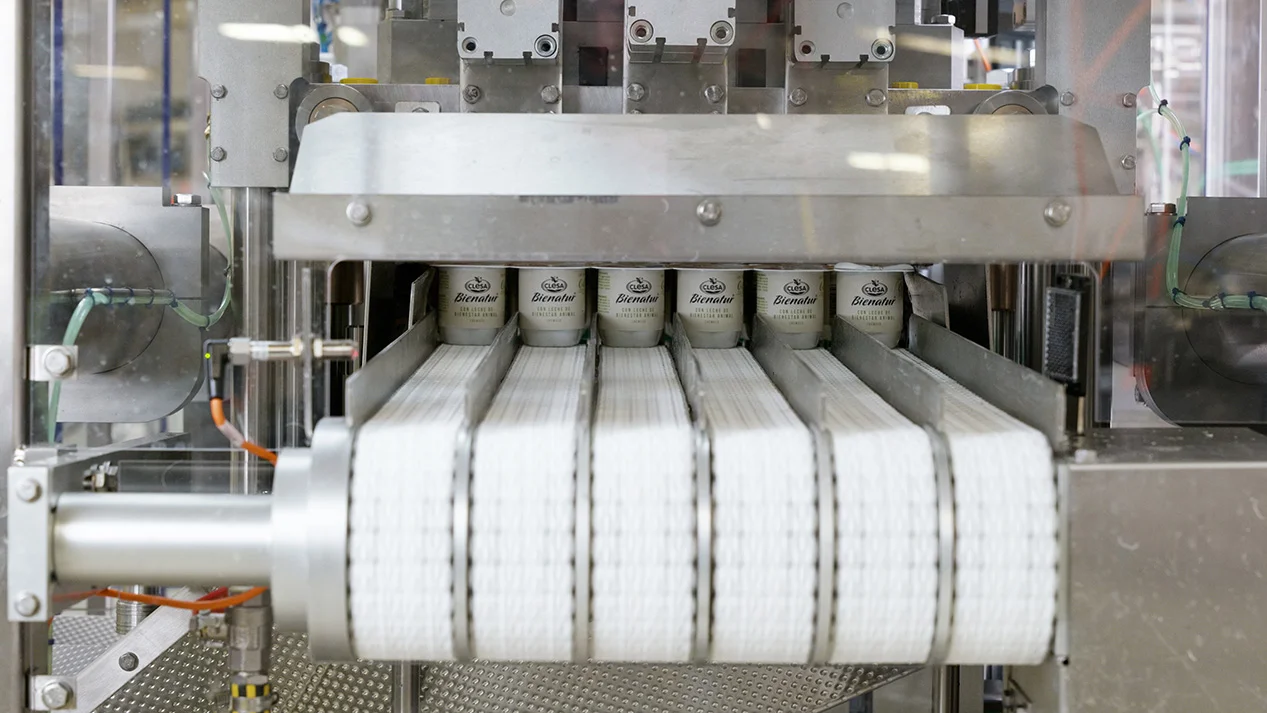

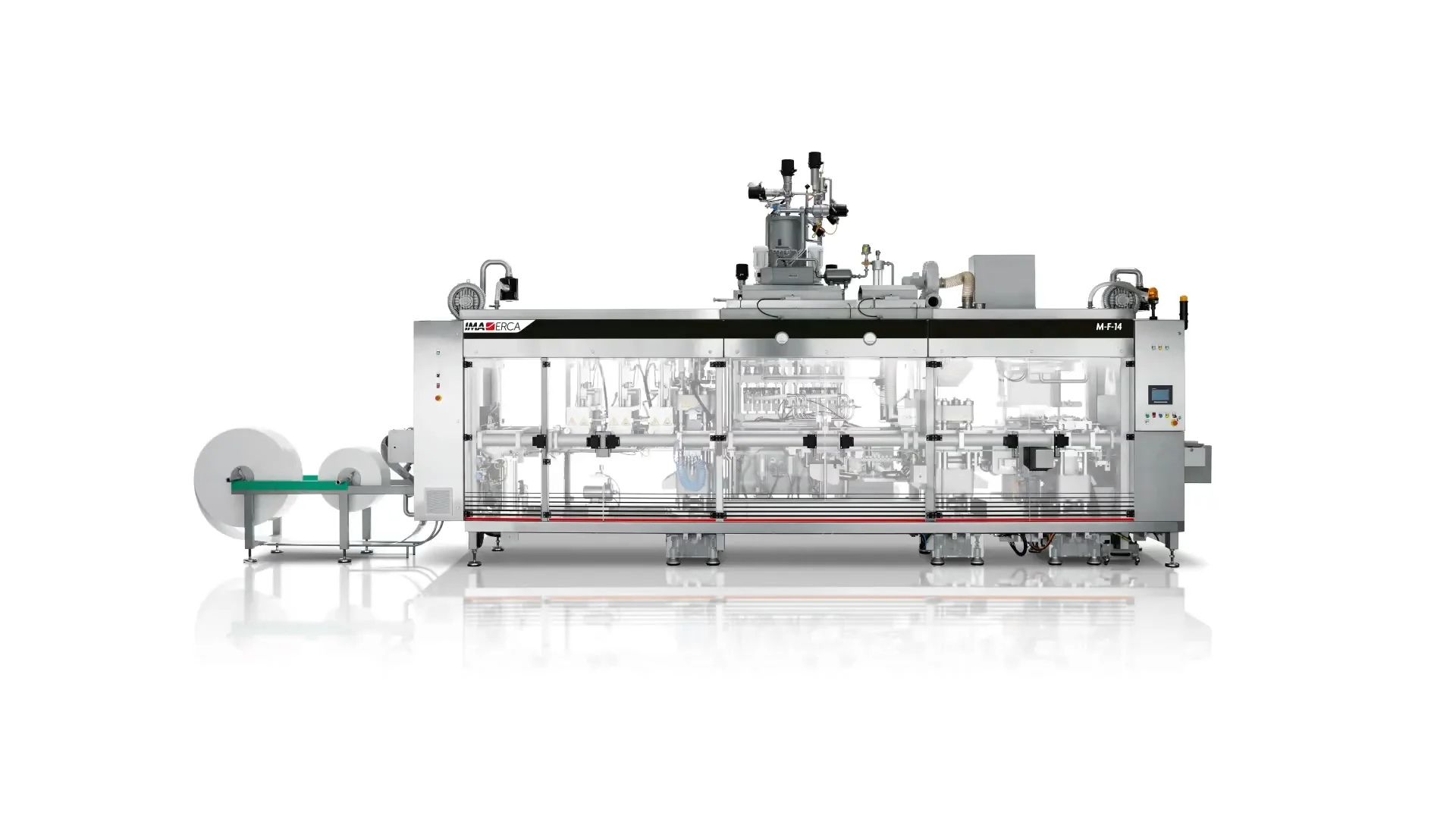

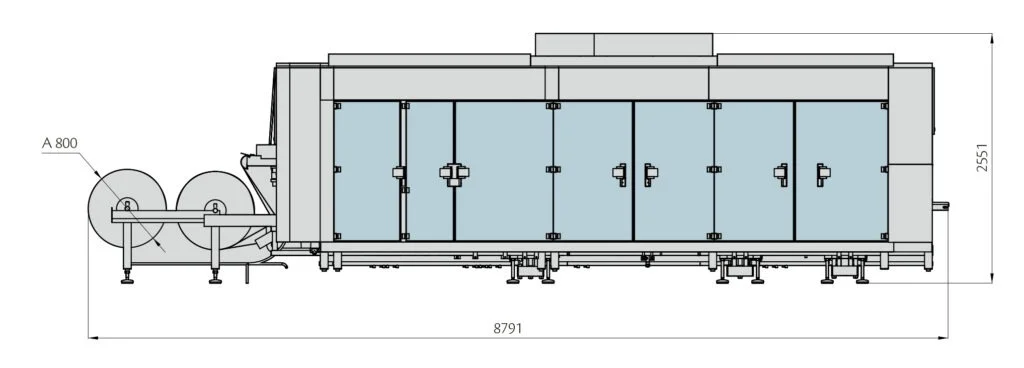

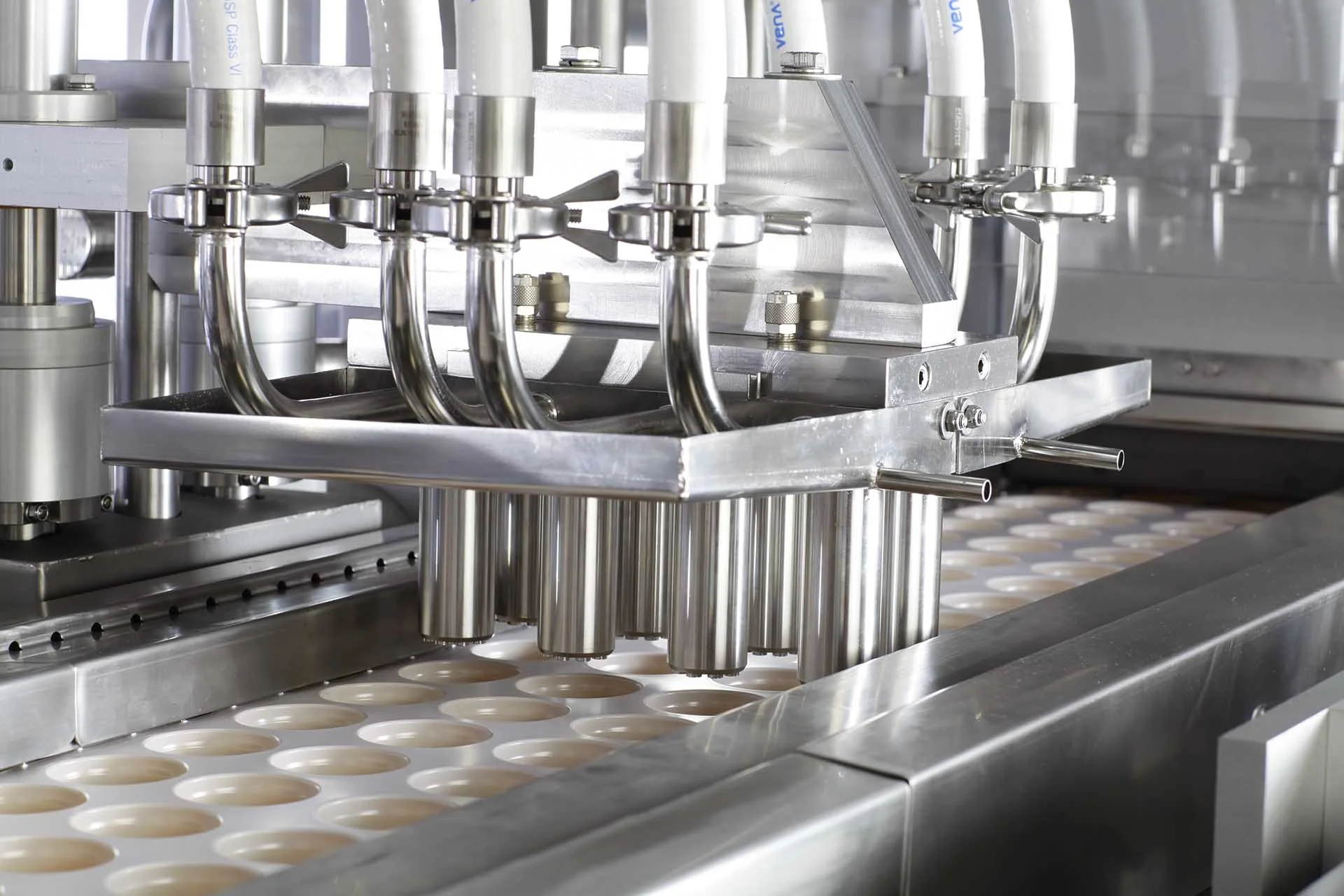

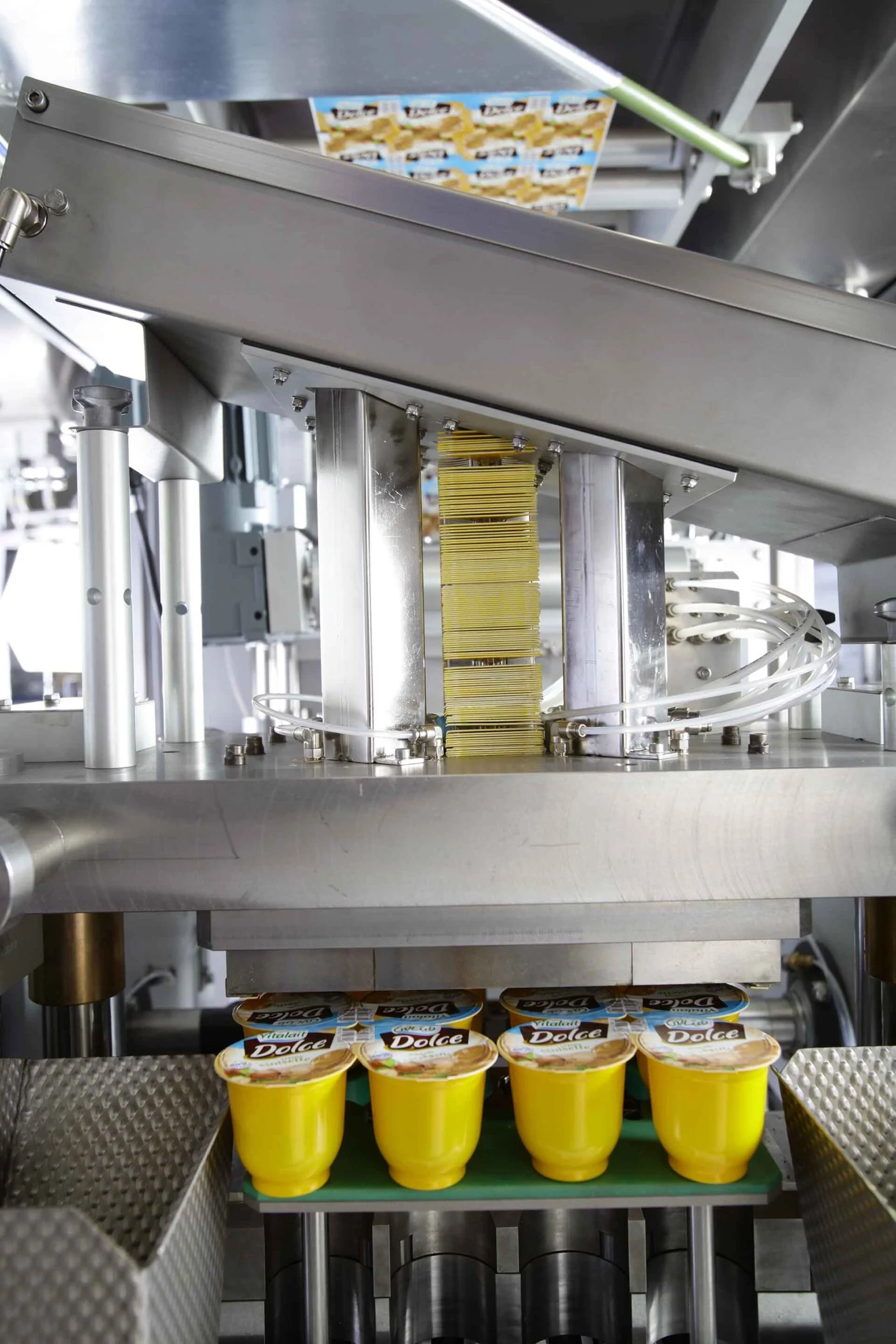

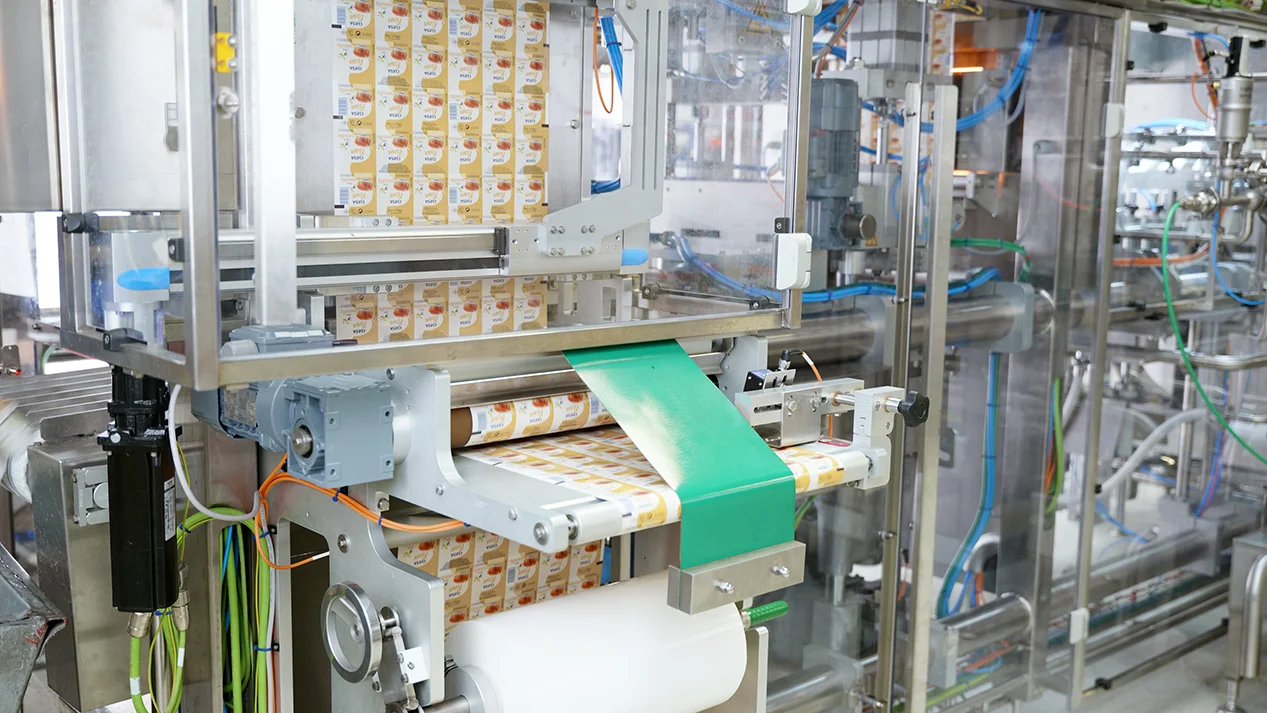

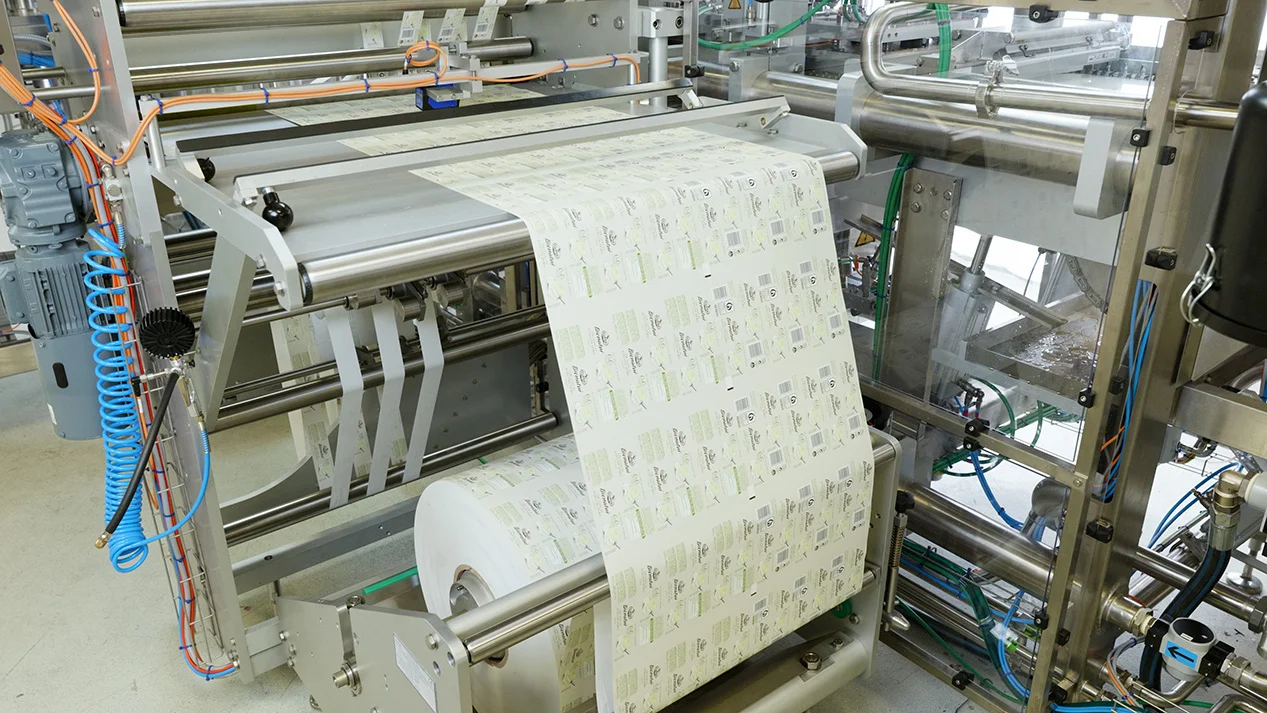

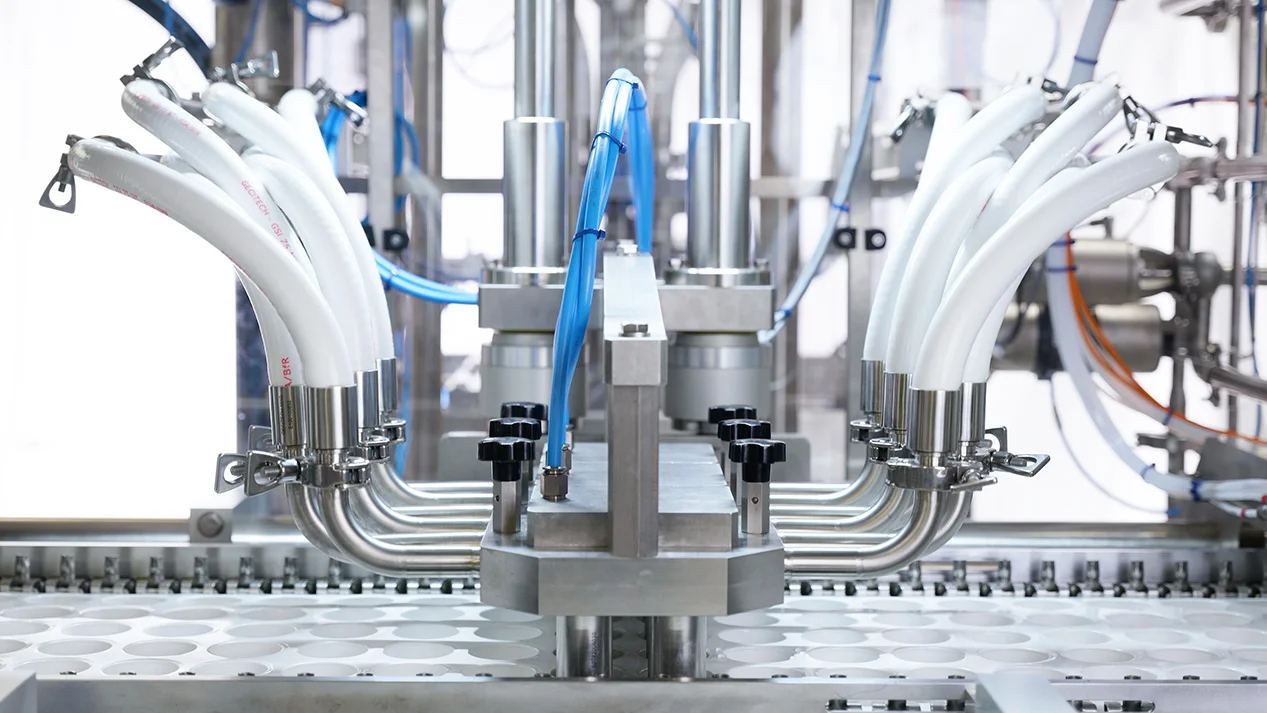

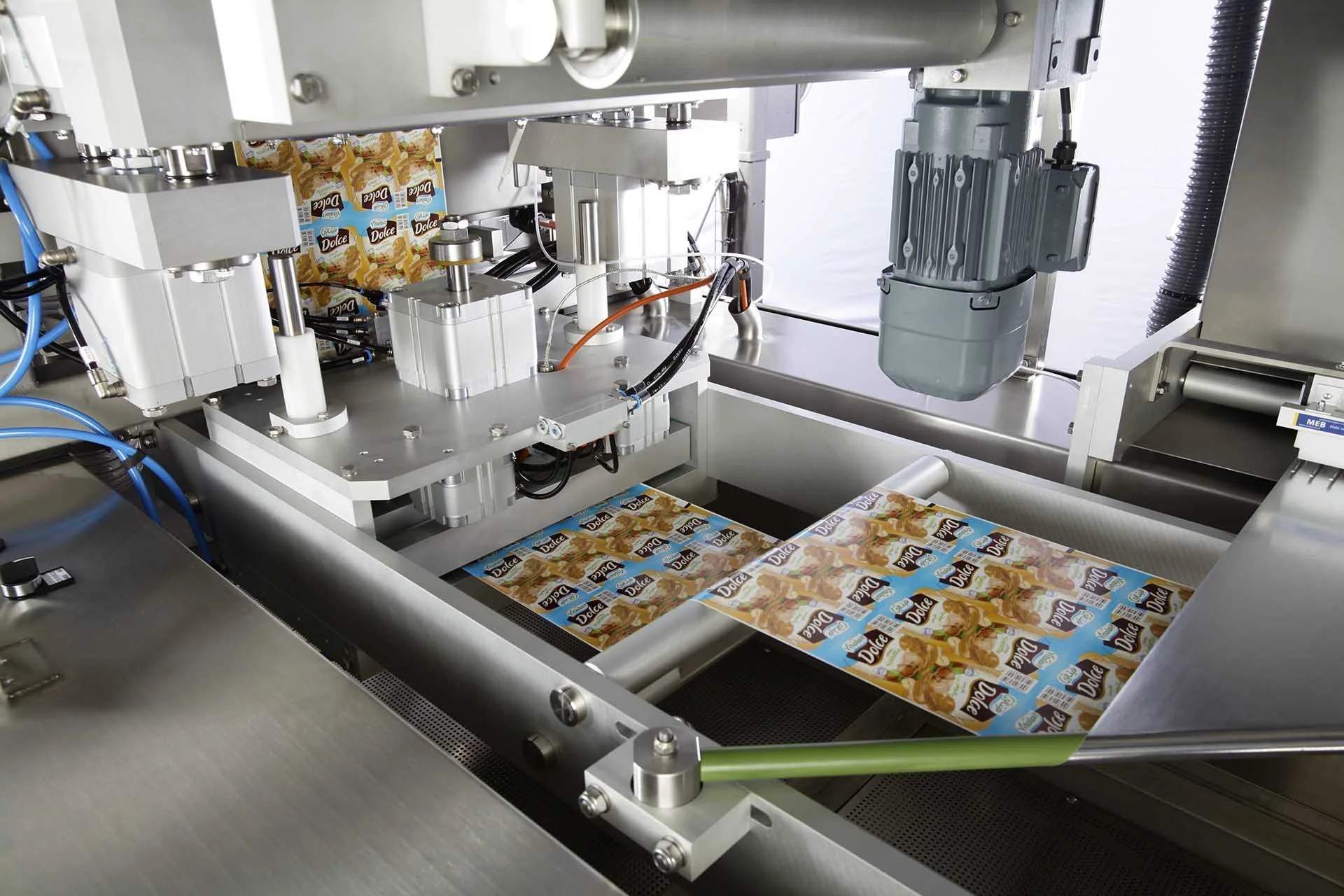

The MF Series Cup Forming, Filling and Sealing (M‑F series) thermoforms cups, fills product, hermetically seals with a film or foil and cuts into singles or multi-packs. It is described to handle yoghurt, fresh cheese, tomato sauce, fruit puree, water and more. The label application can strengthen the cup sidewall and enable a thinner bottom web to reduce material costs. The M‑F series is presented as one of the market’s most compact solutions and can reduce footprint saving up to 30% on floor space. The machine integrates electro-pneumatic cabinets and the filler in the machine base and supports cups from 20 to 500 ml. Technical data includes Cup material width: 400 mm; Usable width: 240 mm; Draw off length: 150 mm; Forming depth: 90 mm; Output: up to 21.600 cups/h. Standard components listed are Controller and Servo motors ELAU, Pneum. FESTO, HMI 15″ touchscreen. Standard configuration details: Bottom web reel Ø 1200 mm, Lid reel Ø 400 mm, Label reel Ø 600 mm, labelling with tilting mold, drive heating section on 6 pitches and exit conveyor with Intralox chains. Options include Hygiene class Clean and Ultra-clean, labelling for conical cups and 2 label heights, ERCA chains with grippers and magnetic drive, and up to 3 fillers. The machine is used to produce filled and sealed cups for products such as yoghurt, fresh cheese, tomato sauce, fruit puree and water. It forms, fills, hermetically seals and cuts into singles or multi-packs. The equipment accommodates cups from 20 to 500 ml and supports labelling (including conical cups and 2 label heights) and up to 3 fillers as configured.
