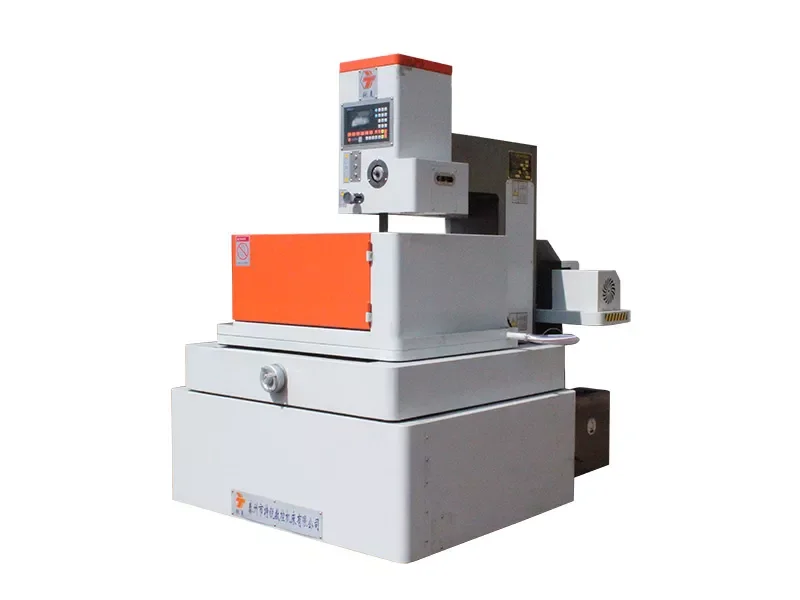

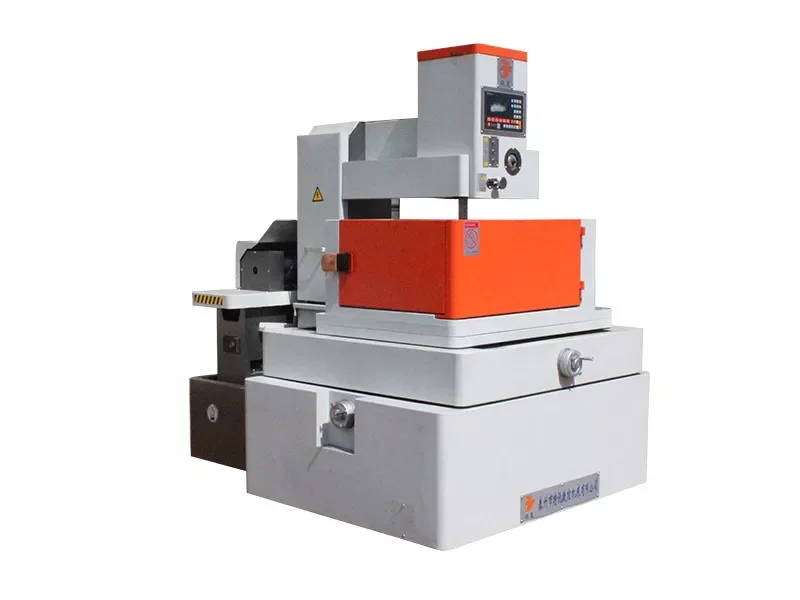

TRS32 middle speed wire edm

Overview

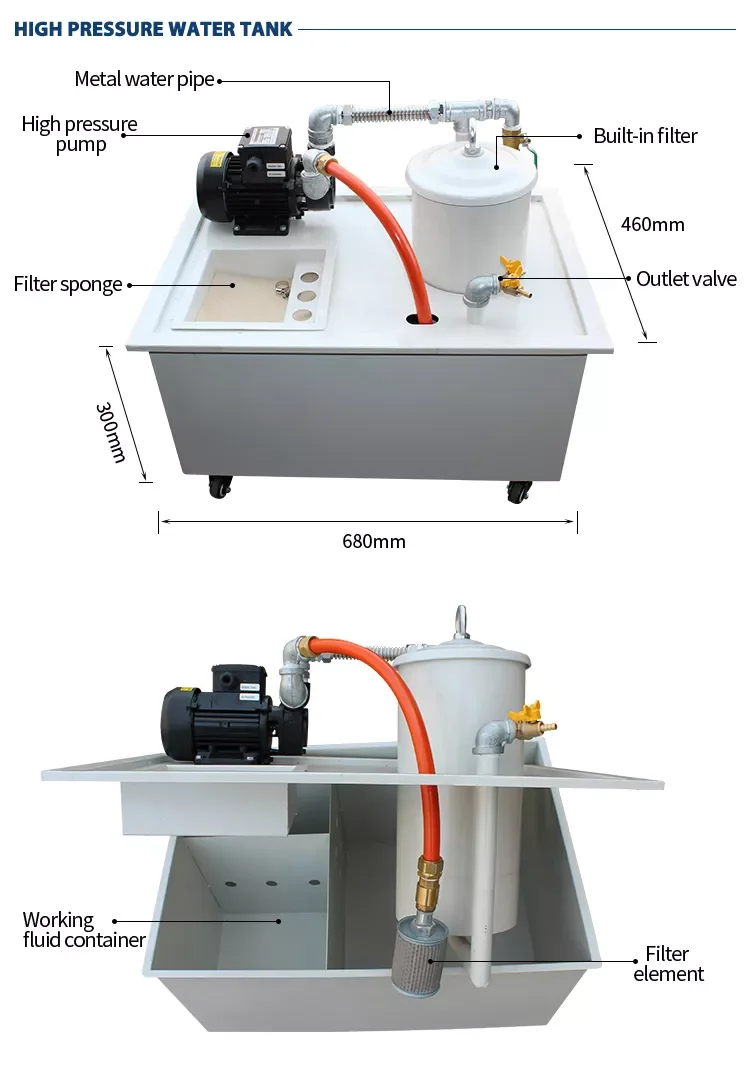

Model TRS32 middle speed wire edm is manufactured in Jiangsu, China and sold under the brand Sharp CNC. Worktable travel is 320*400 mm and Dimension(L*W*H) is 1650*1200*1900; a separate entry lists machine tool dimensions as 1240╳1170╳1400. Working weight (kg) is 300 with bearing capacity 300, and machine weight/Weight (KG) is 1400. Max. cutting thickness (mm) is listed as 300 in one field and as 380 in another; Processing taper is 6°/80mm while Maximum cutting taper is listed as 6°-12°/80. Processing speed (mm^2/min) is ≤160, machined surface roughness is ≤Ra1.2, machining accuracy/Precision is ≤0.01mm, and workbench moving pulse equivalent (mm) is 0.001. Wire diameter is 0.10-0.20 mm, working fluid is Wire cutting professional water cutting liquid, Power (kW) is 1.5, Voltage is 50hz.380v, Core Components are Motor and Pump, and Certification is ISO CE. The product description lists HIWIN linear guide rail, Japan NSK bearings, Military grade P3 double nut ball screw, and Japan Panasonic servo system among the machine parts. The TRS32 is described for wire cutting operations using reusable molybdenum wire instead of disposable brass wire to reduce consumable costs while providing cutting precision and surface finish. It is presented with features that support stable wire transport and taper machining, including a two-way tight wire constant tension structure, stabilizing wire device and nozzle, timing automatic refueling, automatic spindle raise/lower, well-known brand guide wheels, and an optional large taper swinging device to guarantee taper accuracy and straightness.
