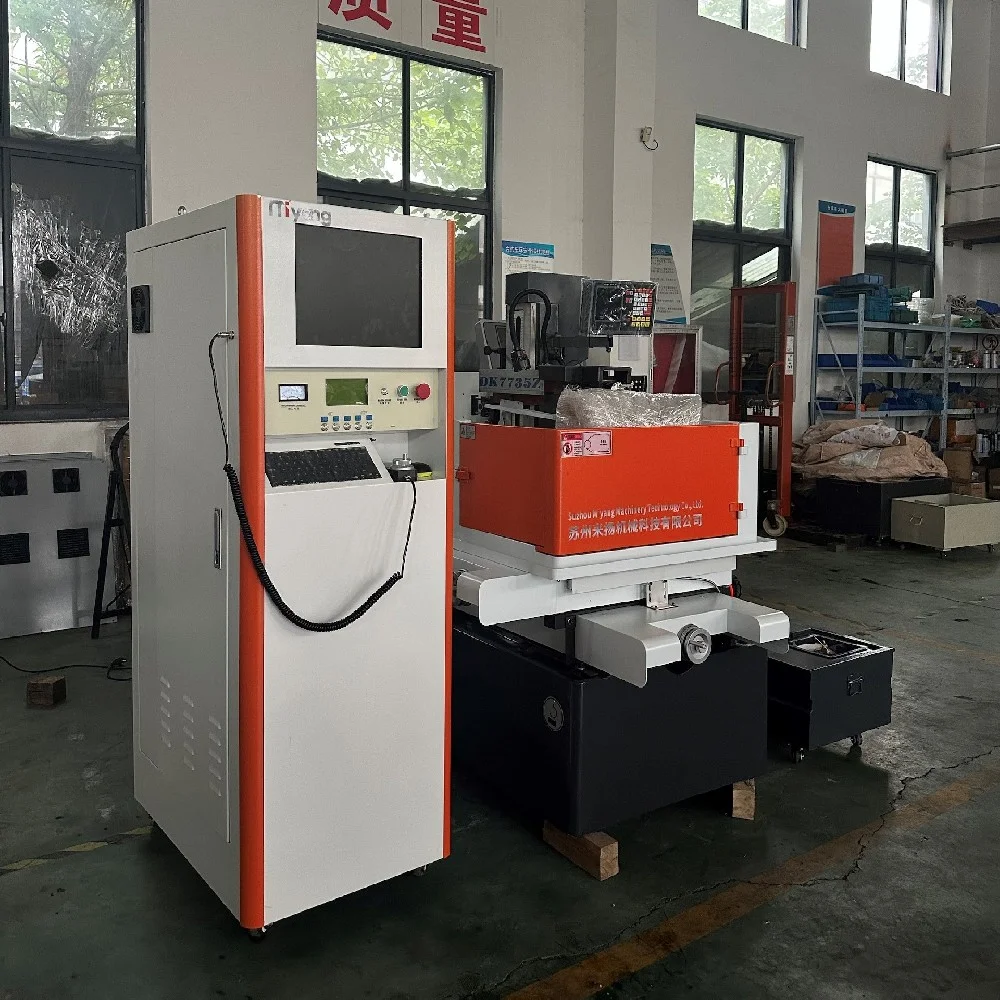

DK7745 Economical 5 Axis Fast Cnc Wire Cut Edm Machine

Overview

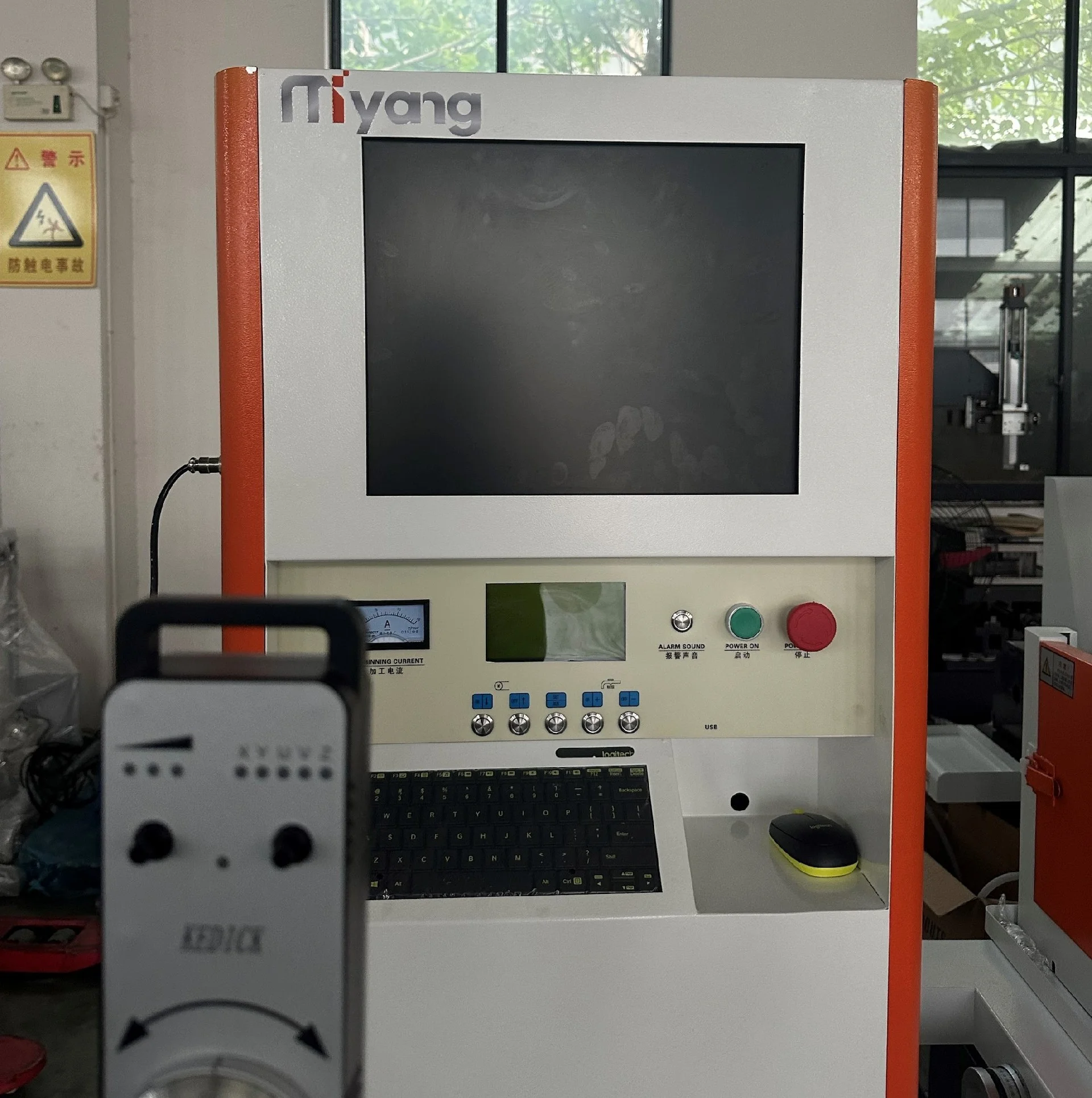

DK7745 Economical 5 Axis Fast Cnc Wire Cut Edm Machine uses X8 control software; the operator transfers the graphics file to the system and the system automatically generates the code. Miyang Machinery’s intelligent wire cutting EDM machine database matches cutting parameters automatically after the user sets the thickness of the cutting material. The machine uses advanced pulse power supply and electroless power supply technology to ensure cutting roughness and improve cutting efficiency. The machine has an F-shaped structure with fuselage castings cast with resin sand and two high-temperature heat treatments to remove internal stress and prevent deformation, and it is equipped with C3 and P-grade precision ball screws and linear guides. For the DK7745 model specifically: worktable size 710*570 mm; CNC axis travel (X×Y) 550*450 mm; U/V travel 30 mm; Max. cutting workpiece thickness 450 mm; Max cutting taper ±6°/80mm; Max workpiece weight 500 kg; Molybdenum wire diameter φ0.18 mm; Cutting accuracy ≤40.01(φ20mm,H=40mm); Surface roughness Ra≤1.2-2.0 μm (multiple cutting); Cutting efficiency 8000-15000 mm2/hr; Power consumption ≤2Kw AC 2-phase 220V; Machine dimension 1800*1480*1700 mm; Machine weight ≤1400 kg. Motor controller options are Stepper motor/ Servo motor, Z axis lift type is Auto-lift, and controlled axis is listed as 4-axises. The DK7745 is used in a workflow where the operator transfers a graphics file to the X8 control system and the system automatically generates machining code for wire EDM operations. By setting the cutting material thickness, the machine’s intelligent database automatically selects the most suitable cutting parameters to control roughness and efficiency. The product comes standard with multiple cutting functions and is supported by detailed teaching videos from the manufacturer to guide operation; the manufacturer provides warranty-period replacement of damaged parts and post-warranty replacement at cost price as described in the product FAQ.
