Side-entry agitator ES-V

Overview

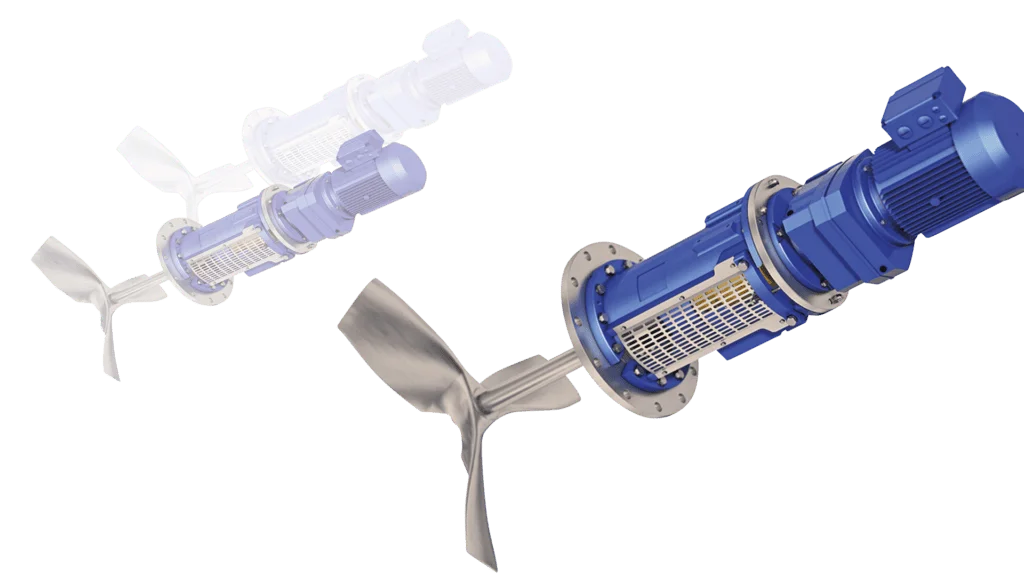

The EKATO ES-V is a side-entry agitator for storage tanks of any size. The shaft is sealed by a single-action mechanical seal lubricated by the product. The agitator is equipped with a device that guarantees rapid and simple maintenance or replacement of the seal even with the vessel full. A new coupling design enables maintenance of the seal without lifting equipment, and the drive unit does not need to be disassembled during seal maintenance. - Motor power: 1,1 6 15 kW - Shaft diameter: 40 - 60 mm - Operating pressure: Atmospheric - 3 bar - Impeller systems: EKATO propeller - Materials in contact with the product: steels resistant to rust and acids, duplex steels - Homologation: Homologation GOST TR-ZU 010/2011 Designed for side-entry installation in storage tanks of any size. The single-action mechanical seal is lubricated by the product, and the agitator provides features for rapid seal maintenance or replacement even with the vessel full. Seal maintenance can be performed without lifting equipment and without disassembling the drive unit, and the agitator is specified for operating pressures from Atmospheric - 3 bar.
