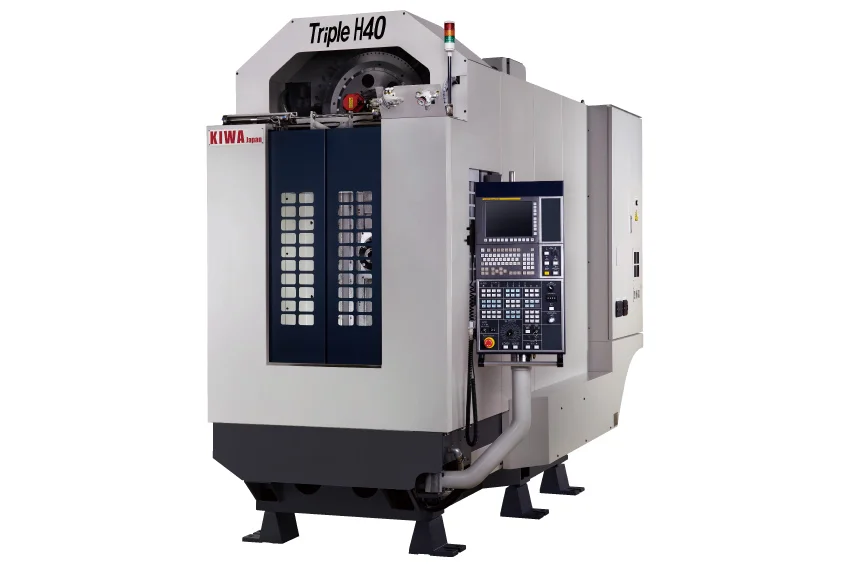

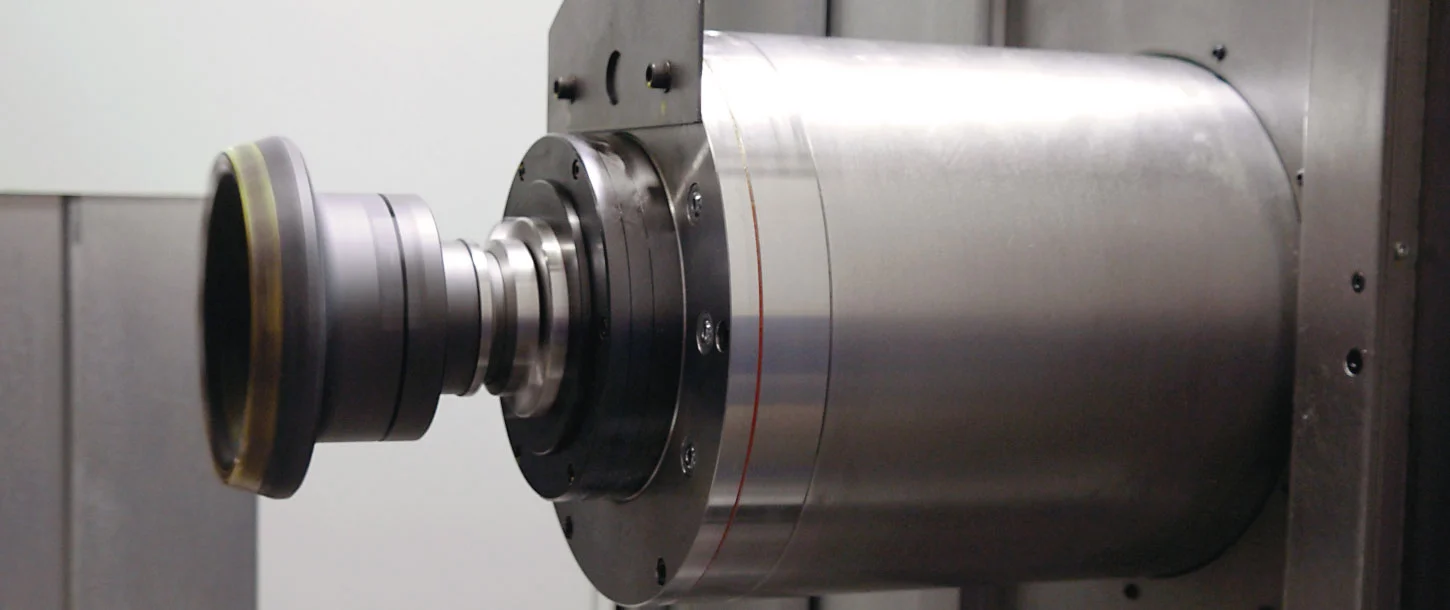

Triple H40

Overview

NC control: FANUC 0i-MF Plus. Standard tool magazine: 20 tools (optional 40/60/80). Tool shank: BT40 standard with optional CAT40 or HSK-A63. Number of pallets: Single-pallet configuration. Spindle speed: 8,000 min-1 standard (optional 12,000 min-1). Rapid feed (X/Y/Z): 60,000 mm/min. Work envelope and handling: Standard travel X/Y/Z = 510 x 510 x 400 mm [20.1 x 20.1 x 15.7]. Optional travel configurations available: 700 x 510 x 400 [27.6 x 20.1 x 15.7]; 1000 x 510 x 400 [39.4 x 20.1 x 15.7]; 1500 x 510 x 400 [59.1 x 20.1 x 15.7]; 1500 x 1500 x 400 [59.1 x 59.1 x 15.7]. Maximum workpiece height: 790 mm [31.1] (with Standard stroke). Pallet size (with Standard stroke): 820 x 450 mm [32.3 x 17.7]. Footprint and utilities note: Floor space for single-pallet machine (including coolant tank, excluding chip conveyor): 1,637 x 3,855 mm [64.1 x 151.8] (with Standard stroke). Factory and machining-shop use: Intended for industrial CNC milling with single-pallet production or job‑shop setups that require a compact footprint with palletized workholding. Standard 20-tool capacity supports mixed operations and short automated cycles; optional 40/60/80-tool magazines extend unattended runtime for higher-mix or longer-run production. Configuration-dependent capacity: Selectable travel lengths up to 1500 mm in X and up to 1500 mm in Y enable processing of larger workpieces when fitted with the corresponding option packages. The standard 8,000 min-1 spindle covers general-purpose roughing and finishing; the 12,000 min-1 option is useful where higher spindle speed is needed for finishing or light‑cut materials. FANUC 0i-MF Plus control facilitates integration into existing CNC program workflows and automation cells. Operational considerations: Single-pallet design and the specified floor space (including coolant tank, excluding chip conveyor) should be planned into cell layout. Tool shank options (BT40, optional CAT40 or HSK-A63) allow compatibility with common tooling systems used across manufacturing environments.
