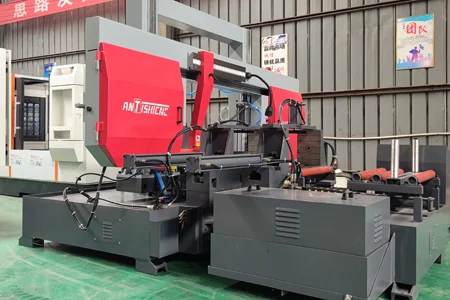

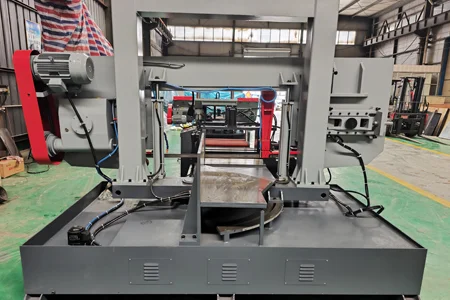

CNC Horizontal Rotary Band Saw GHSZ4260

Overview

Горизонтальный поворотный ленточнопильный станок с ЧПУ GHSZ4260 is a fully automatic band saw for cutting metal of the GHS series controlled by a PLC. Control switches are grouped on a touch screen and a control panel, and the PLC can regulate the feed of the saw frame, smoothly adjust the blade speed, and hydraulically process the workpiece. The description states a powerful automatic feed provides high repeatability and dimensional accuracy and does not require the use of electronics and programming. Technical characteristics list Model: GHS Z 42 60. Maximum cutting cross-section: 600*600(45°:600*450) (30°:600*500) mm. Blade speed: 27/45/69 m/min. Blade dimensions: 7150*54*1.6 mm. Feed speed type: CVT. Main motor power: 7.5 kW. Hydraulic motor power: 2.2 kW. Water pump motor power: 0.125 kW. Clamping method: Fully automatic. Feed method: turbine shaft. Packing dimensions: 3800*3000*2300 mm. Weight: 4.0 Т. Commercial and logistics details provided: Warranty: 1 год на гарантию на оборудование. Availability: На складе. Delivery: По РФ и странам СНГ. Working hours statement: Работаем для вас 24/7. The machine series is intended for straight-line cutting of large billets made of steel, cast iron and other metals. The product description also presents it as a shop saw for precise cuts of medium-diameter metal workpieces.
