Abel Closed Cup Flash Point Tester

Overview

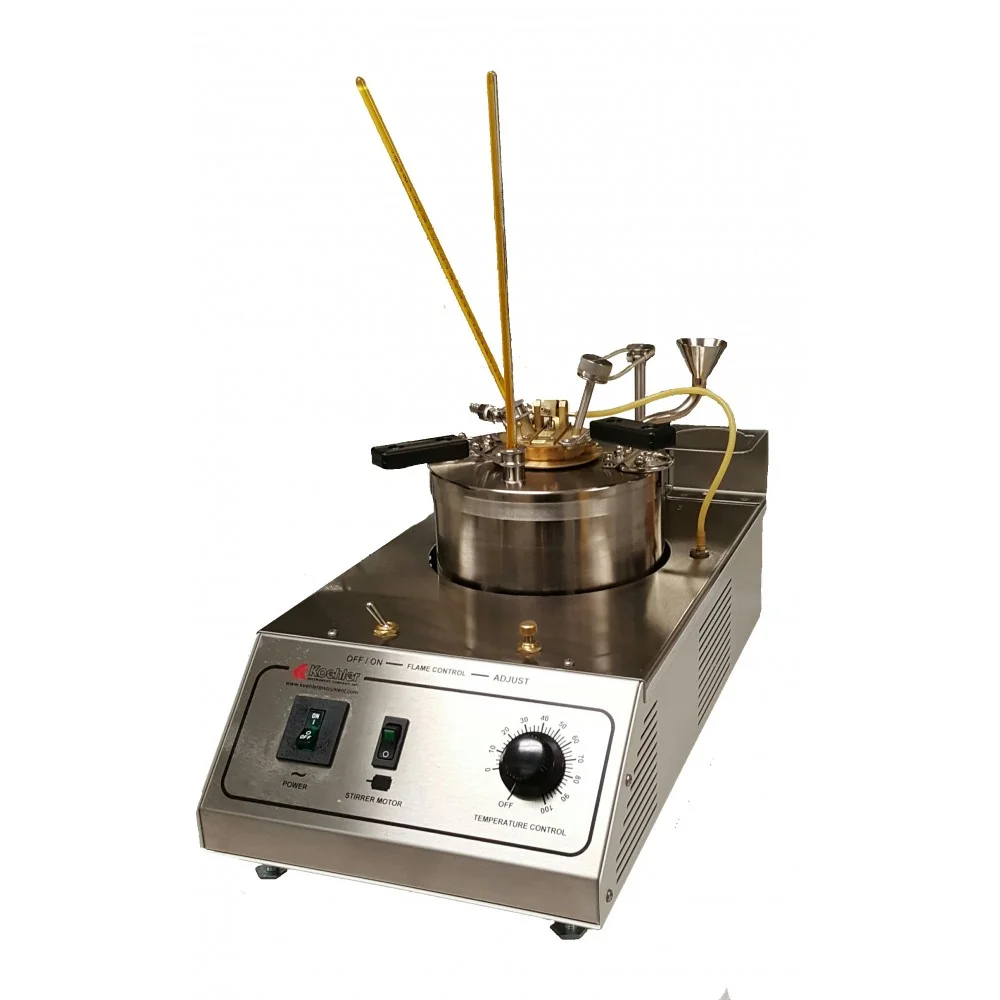

Models: K17400 Abel Closed Cup Flash Point Tester, 115V 60Hz; K17490 Abel Closed Cup Flash Point Tester, 220-240V 50/60Hz. Designed for the determination of the closed cup flash point of petroleum products and other liquids having flash points below -30°C and 70°C inclusive. Conforms to IP 170 and ISO 13736. The instrument consists of a test flame applicator, brass test cup with handle, thermometer support, heating plate and electric heater, and an integrated stirrer motor with two thermometer holders. The applicator is precisely aligned and pivots for flame application at specified temperature intervals, and the hinged thermometer support raises to facilitate placement and removal of the test cup. Flame size is adjusted using a built-in needle valve and comparison bead. Equipped with a 400W nickel-chromium heater with stepless variable heat control for accurate repeat setting of temperature rate of rise per specifications. Dimensions (wxdxh in.(cm)): 10 x 17.5 x 11.5 (25.4 x 44.5 x 29.2). Net Weight: 25 lbs (11.34 kg). Used primarily to test flammable and combustible materials for shipping and safety regulations. The instrument is intended for determination of the closed cup flash point of petroleum products and other liquids with flash points between -30°C and 70°C inclusive.
