RL-HLW-1500Ⅱ/ PLUSE

Overview

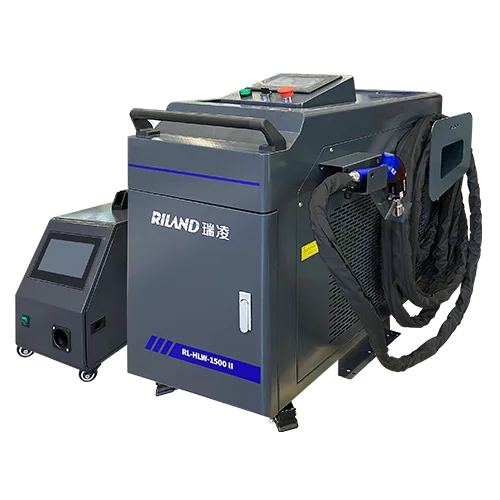

Model RL-HLW-1500Ⅱ/ PLUSE is a water-cooled handheld laser welding unit, second generation, with 1500W. Laser wavelength is 1080±10NM and optical fiber length is 10m. The welding torch weighs 630g and welding speed range is 0-120mm/s. Cooling is provided by an industrial constant-temperature water tank. Operating environment temperature range is -10-40℃ and humidity <70% without condensation. Recommended welding thickness is 0.3-4mm/0.5-4mm; seam requirements are ≤80% of plate thickness and the single-wire weld seam gap must be smaller than the welding wire diameter. Working voltage is AC220V. Machine dimensions are 950*428*824mm; laser welding machine weight 100kg, wire feeder weight 8kg. Documentation and certification listed include product datasheet, operation manual, CCC certification, and product comparison. The product is a water-cooled handheld laser welding system, intended for handheld laser welding. It is specified for welding thicknesses of 0.3-4mm/0.5-4mm and supports welding speeds of 0-120mm/s while meeting the stated seam and gap requirements (≤80% of plate thickness; single-wire weld seam gap smaller than the welding wire diameter).
