Slurry Wet Blast Cabinets, Benchtop Models (FM-WJ Mini)

Overview

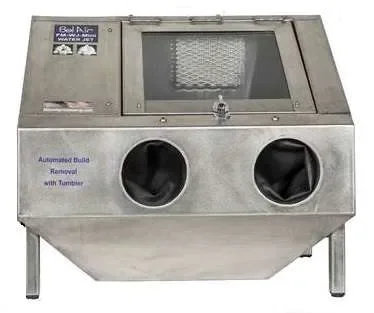

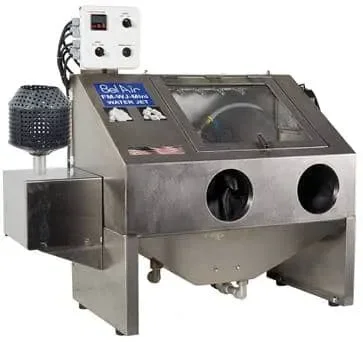

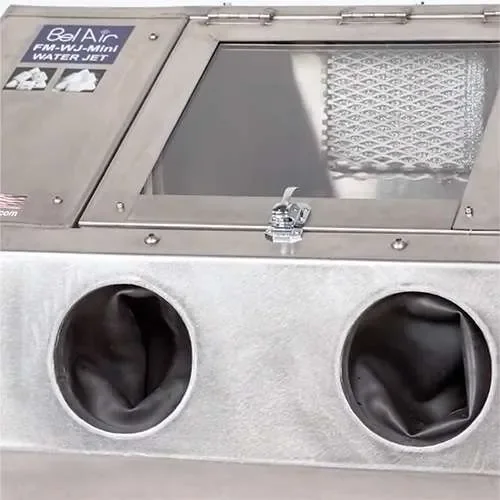

The FM-WJ Mini is a high-performance, industrial-grade slurry wet blast cabinet benchtop model designed for 24/7 continual operations and compact benchtop integration into space-constrained production lines. Built with heavy-duty, all-welded stainless steel, the system uses a slurry process (vapor blasting, wet abrasive blasting, or liquid honing) that combines water, abrasive media, and compressed air to deliver a gentle, dust-FREE finish. The system includes a 2x pressurized blast system, recycles media and water, is self-contained to meet EHS and cleanroom standards, and is made in the USA. Standard features include a safety interlock blast system, filtered cabinet exhaust system, regulator with gauge, available low-pressure suction gun and high-pressure pump gun, ceramic and boron carbide nozzles, dual-doored cabinet, large view window with automated and foot-activated washing, fluorescent interior lighting, a coated interior work table, and an included water rinse and air blow off nozzle. Two variants are listed: FM-WJ Mini — Dimensions (D x W x H): 24" X 20" X 24", Door Opening: 10 X 12, Total Air Consumption: 40-60 cfm @ 80 psi, Electrical: 115v, Suction: ✓, Pressure: N/A, Basket: N/A; FM-WJ Mini-T — Dimensions (D x W x H): 30" X 20" X 24", Door Opening: 10 X 12, Total Air Consumption: 40-60 cfm @ 80 psi, Electrical: 115v, Suction: ✓, Pressure: N/A, Basket: ✓. Optional equipment and accessories include turntables (single, dual, multi-station), automated tumble basket, rinse stand, rollo-table with load end & rinse stand, tumble-barrel & rinse stand, slurry changeover cart, slurry density gage, closed circuit filtration & recirculating rinse system, hydroclone, vertical sliding door options, water heater, long-wear boron carbide nozzles, rubber lining and curtains, gun mount rods, and semi-automatic and automatic machine designs by request. The FM-WJ Mini Series is described as providing precise surface treatment for metal, plastic, and composite parts across industries such as aerospace, plating, electronics, medical, cutting tools, and 3D printing & additive manufacturing (AM). The slurry wet blasting process is presented for gentle finishing of delicate parts, components with internal passages, complex geometries, and hard-to-reach areas while maintaining tight tolerances and producing smooth, even finishes. Explicit process applications listed include corrosion removal, surface preparation, removal of rust, coatings, and contaminants, and sample work shown includes MJF 3D Printed Medical Components, Color Print Powder Removal & Polishing, Stainless Steel 3D Trigger, Nylon Composite Test Degrees of Finish Keychain, Build Removal Samples from HP Color Printer, Colored Dyed Display Tags Key Chain, Twisted Wire Cuff Bracelet, Bracket, Aircraft, Nylon SLS Printed Consumer Art, and Flat, Stamped Stainless Steel Springs.
