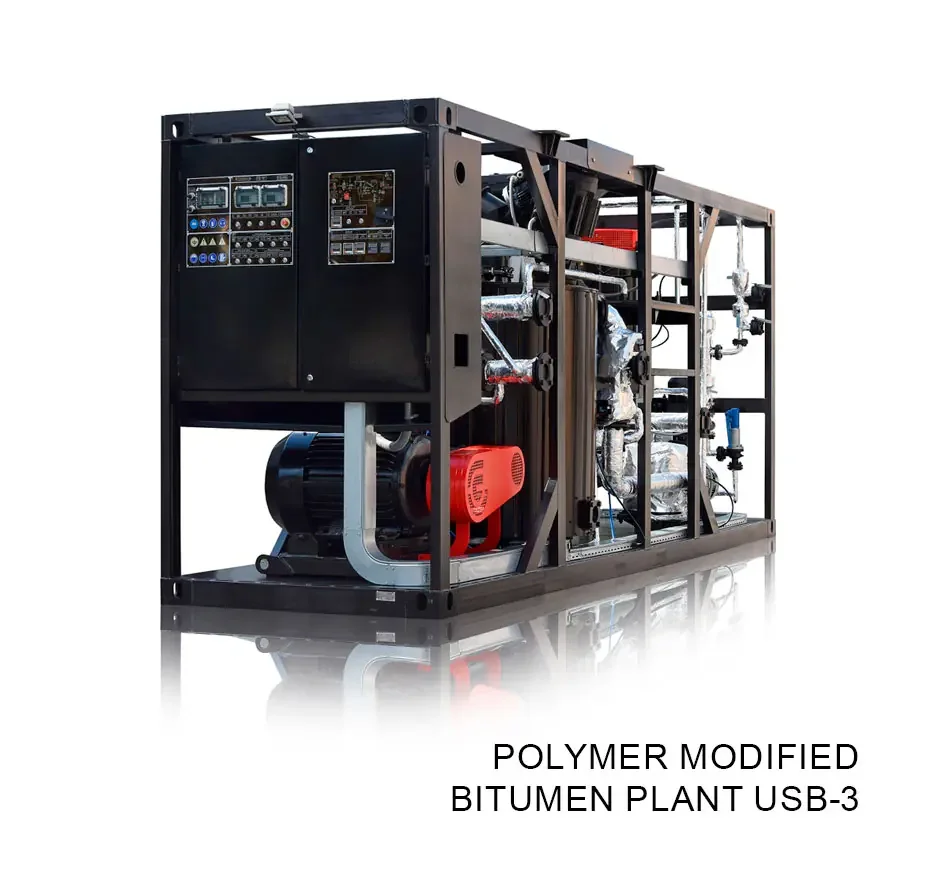

Polymer modified bitumen plant USB-3

Overview

The USB-3 polymer modified bitumen plant manufactured by Globecore is designed to produce bitumen with polymer modifications. USB-3 operation includes heating bitumen to the required temperature, adding polymer modifiers and thorough mixing of components. The unit is equipped with powerful mixers and a precise temperature control system that ensures homogeneity and stable quality of the finished product, and the process is fully automated; the design is compact and mobile, and the unit is characterized by energy efficiency and minimal maintenance requirements. - Capacity: 8… 12 m3/h - Amount of polymer: 1… 5 % - Amount of plasticizer per 1m³ of bitumen: 0…100 kg - Amount of adhesion additive per 1 m³ of bitumen: 0…10 kg - Operation mode: continuous - Required power -mill, kW: 75 kW - Required power -overall, kW: 110 kW - Electric current -voltage, V: customizable - Electric current -alternating current (AC) frequency, Hz: customizable - Dimensions, not more than -length, mm: 5,400 mm - Dimensions, not more than -width, mm: 1,620 mm - Dimensions, not more than – height (operating position), mm: 2,650 mm - Weight, not more than, kg: 3,500 kg The polymer-modified bitumen produced by the USB-3 is described as being used in the construction of roads, bridges and waterproofing systems. The unit's compact and mobile design allows its use both in large factories and on construction sites, and it can be integrated into existing production lines.
