Advanced Technology Reflectance Unit

Overview

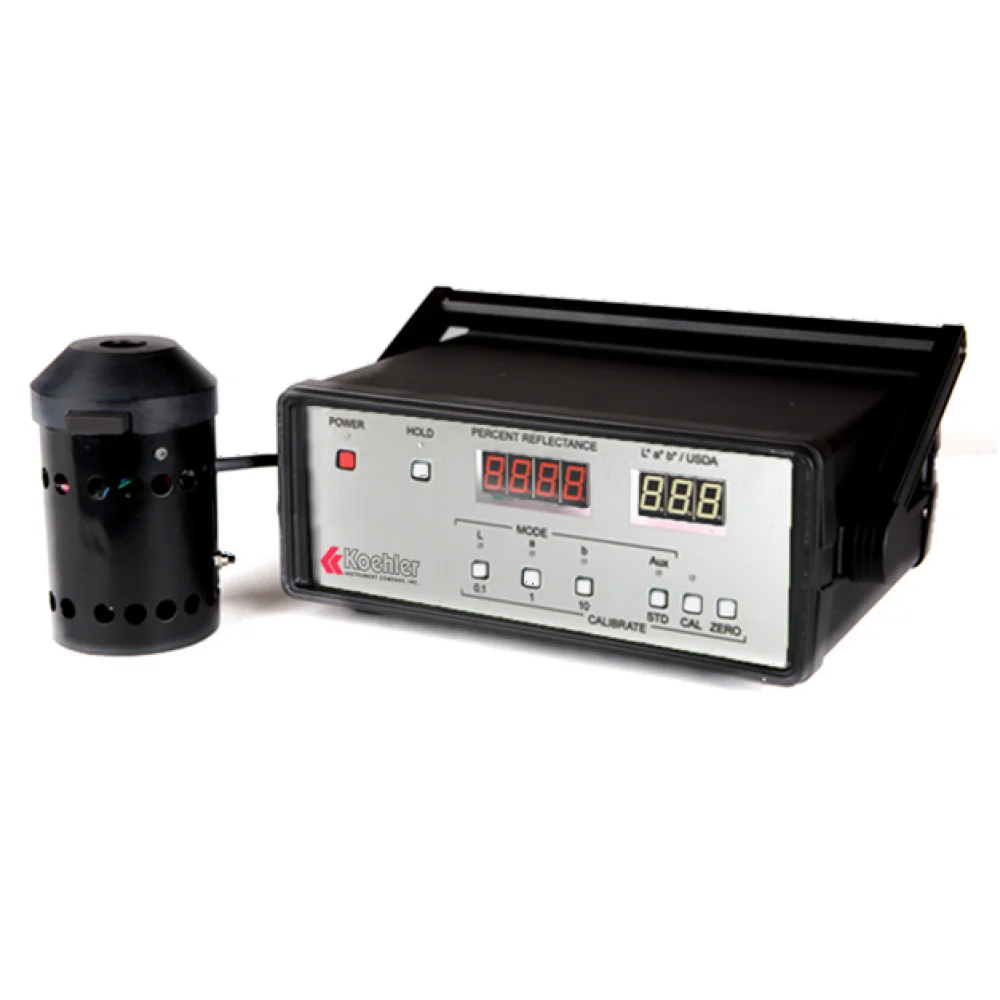

Model: Please Select --- K30700 Advanced Technology Reflectance Unit US Model K30701 Advanced Technology Reflectance Unit UK Model K30702 Advanced Technology Reflectance Unit EU Model. The K30700 contains state-of-the-art electronics and performs ratiometric measurement of reflectance using two calibration points: a black cavity standard designed to have nearly zero reflectance and a calibrated standard plaque traceable to a national standard. The first calibration point is the "dark" or "zero" offset; when a plaque of known diffuse reflectance is placed on the search unit it produces a voltage in the photosensor array proportional to the light reflected, providing the reference point. Test method example: after aging and cooling, fuel samples are filtered and the average amount of filterable insolubles is estimated by measuring the light reflectance of the filter pads, with the 100% and 0% extremes of the reflectance rating range defined by an unused filter pad and a commercial black standard. Conforms to the specifications of: ASTM D6468, ASTM D1455, ASTM D3052, ASTM D523, ASTM D2457, ASTM E97, ASTM C347, ASTM C346, ASTM C584, FTM 141. Electrical Requirements: 110-240V 50/60Hz. Dimensions (H x W x D): 10x8x4.5 in (25.4x20.3x11.4 cm). Additional Accessories: K30700-1 Y Search Unit for K30700 Reflectance Meter; K30700-2 Green Tristimulus for Y Search Unit; K30700-3 Reflectance Standard 76-80%; K30700-4 Polished Black Glass Standard (2" x 2"); K30700-5 PC Interface; K30700-6 Data Save. Applications explicitly listed for the unit include color and reflectance measurements across multiple materials and products such as distillate fuels (high temperature fuel stability test per ASTM D6468), ceramics (color classification, opacity, contrast ratio per ASTM E97, ASTM C347, ASTM C346, ASTM C584), and paint & varnish (color, hiding power, and contrast ratio per ASTM D523). The unit is also described for use with food and agricultural products for color comparison (examples: coffee, potato chips, peanut butter, coco, catsup, tuna, sugar, browning of baked goods or potatoes), cosmetics (sun tan lotion by skin color, lipstick, face powders), detergents (reflectance before and after cleaning), plastics (color), pulp & paper (brightness, opacity, color), textiles (rapid and convenient color matching), pharmaceuticals (powdered brightness, product color, packaging), and general industrial products such as waxes, powders, flat solids, tiles, and finished-product color comparison.
