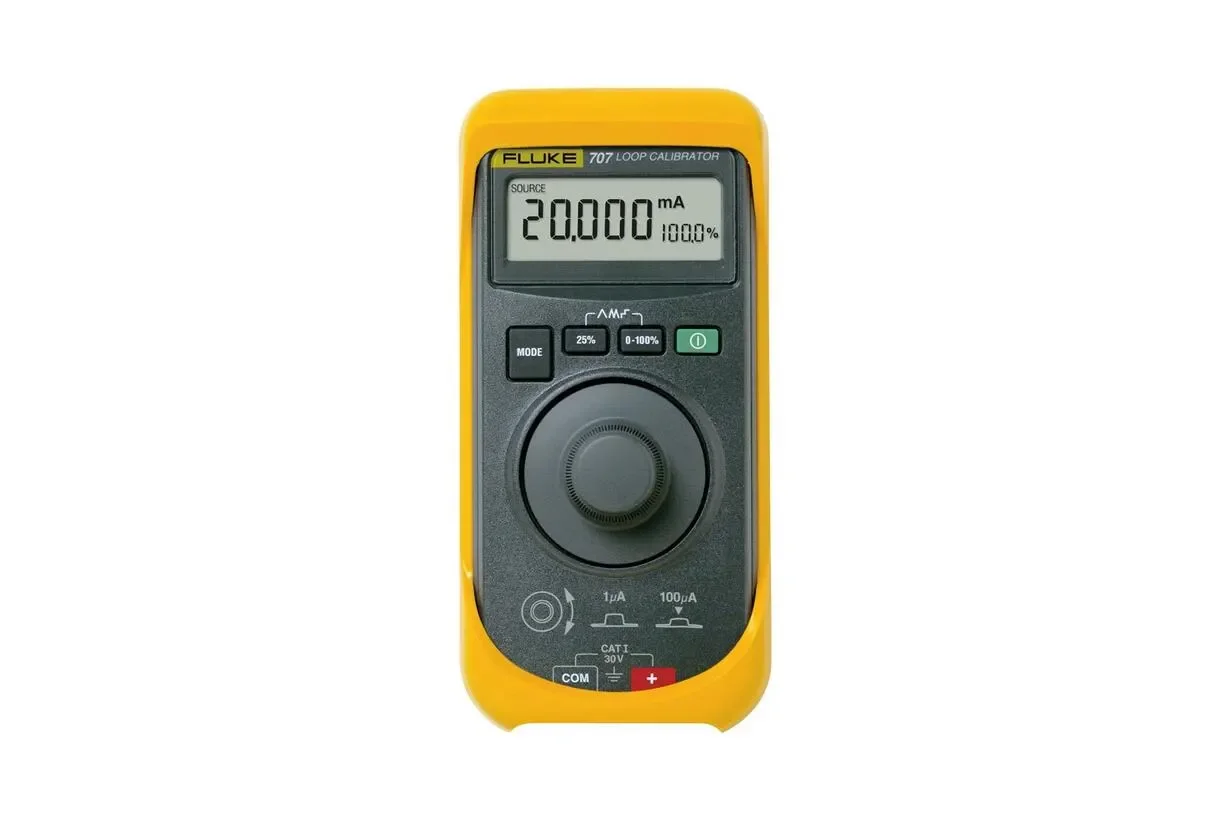

Fluke 707 Current Loop Calibrator with Quick Click Knob

Overview

Handheld current loop calibrator that can source, simulate and measure industrial 4–20 mA and 0–20 mA loops. Current sourcing and simulation ranges: 0 to 20 mA or 4 to 20 mA; current measurement range: 0 to 24 mA. Voltage measurement range: 0 to 28 V DC; maximum voltage: 30 V. Accuracy for current sourcing, current simulation, current measurement and voltage measurement: 0.015% Rdg + 2 LSD. Resolution: current 0.001 mA, voltage 1 mV. The unit displays both current and % of span and provides span check plus auto step and auto ramp functions for stepped or swept loop tests. Intended for calibration, verification and troubleshooting of industrial current loops and field transmitters in production or maintenance settings: sourcing or simulating transmitter signals, measuring loop currents, checking transmitter span and performing stepped or ramped response tests. Auto step/auto ramp and span check simplify functional checks during commissioning or routine calibration. Battery-powered, compact and rugged for field use: Size 152 x 70 x 41 mm; Weight 224 g (340 g including holster); powered by One 9 V battery Alkaline. Loop power and drive details include: While measuring mA, 24 V loop power; ext. loop voltage requirement 12-30 V; drive capability stated as 1200 Ω 950 Ω at 20 mA in HART mode. Environmental and compliance ratings support industrial deployments: operating temperature -10°C to 55°C, storage temperature -30°C to 60°C, humidity 0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C); shock and vibration per MIL-T-28800 for a Class 2 Instrument; EMC EN50082-1:1992 and EN55022:1994 Class B; Safety CSA C22.2 No. 1010.1:1992. Warranty: Three years.
