Vergason Technology, Inc.VTI® HC3036 PVD Coating System

VTI® HC3036 PVD Coating System

Vergason Technology, Inc.

Categories:
Cathodic Arc Systems
Equipment main view
Equipment view 2

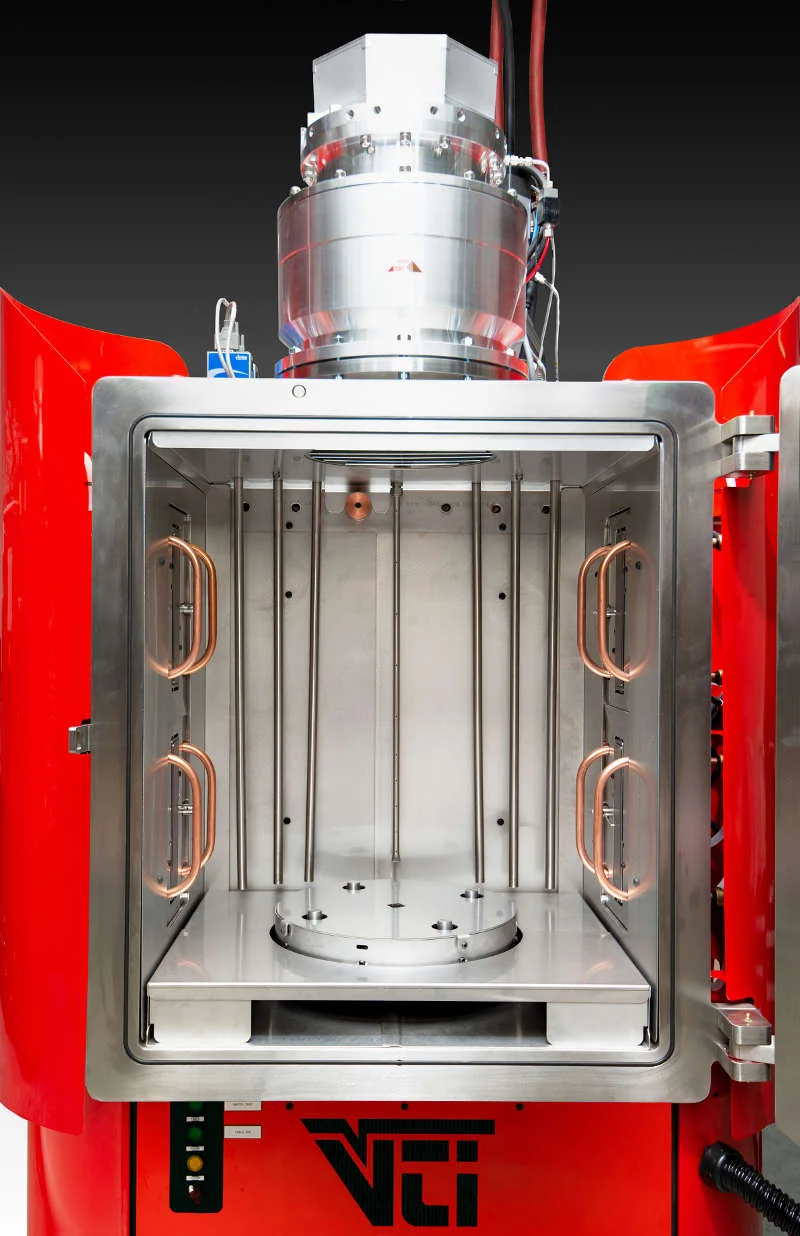

Equipment view 3
Equipment placeholder
Equipment placeholder

Model Overview

The VTI® HC3036 PVD Coating System (CatArc® 3036) is a small-footprint, high-throughput PVD coating system that uses patented switched-arc deposition technology and a stainless steel chamber with fast-change removable liners. A robust Arc-Enhanced Glow Discharge (AEGD) device provides plasma cleanin...

Technical Specifications

Electrical480VAC, 150 Amp, 3 Phase, 60Hz, 400V options available
Coating Zone20” (508mm) diameter table x 25” (635mm) Height
Cooling Water60-70 F (15-21C) non-condensing; 25 gpm (95L/min); 45 psi (3.1 bar) inlet, maximum; Minimum pressure differential inlet-outlet of 20 psi (1.38 bar)
Ethernet Portfor remote diagnostics and support
Compressed Air87 psi (6 bar) 5 cfm (0.14 m3/min)
