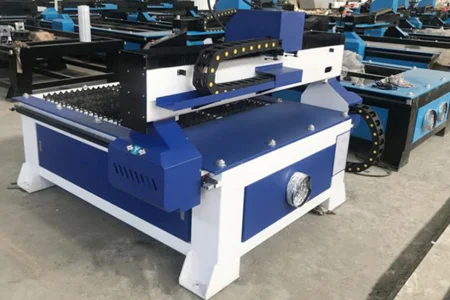

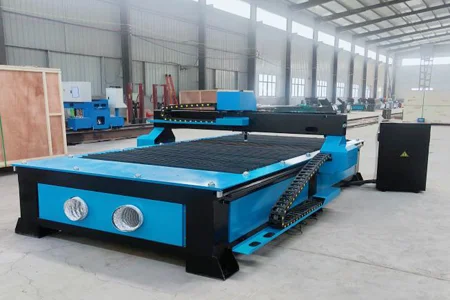

Plasma Cutting Machine 1530 120A

Overview

Model: Установка плазменной резки 1530 120A (high configuration). Working area X,Y: 1500*3000mm; working area Z: 150mm. Overall dimensions: 3950mm*2280mm*1850mm. Frame is a very thick steel construction. Rated power: 8.5 kW. Power supply: 380V, three phase, 60Hz. Positioning accuracy: 0.02mm; processing accuracy: 0.1mm; maximum cutting speed: 12000mm/min. Torch height control mode: Automatic. Maximum cutting thickness: Max. 25mm carbon steel plate. Plasma source: LGK120A. Control system: STARfire. Motors: Chinese high-precision stepper motors. CAM software: Starcam. Weight: 1600 kg. Plasma pressure: Max.0.8 MPa. Operating temperature: -10°C-60°C at atmospheric pressure, 0-95% humidity. LCD display size: 7 inches. All housings of the machines have undergone professional anti-corrosion treatment with two applications of anti-corrosion coating followed by spray painting, and all machines pass a three-stage inspection before shipment. Each delivery includes one 8GB flash disk. The machine is provided with Australian professional metal cutting software and a 2G design option (USD 320) for use in metal cutting operations. It includes automatic torch height control and cutting parameters such as Maximum cutting thickness: Max. 25mm carbon steel plate and maximum cutting speed: 12000mm/min. To remove smoke from the workspace the unit is equipped with two fans: a front fan that blows toward the rear panel and a rear fan that expels smoke from the machine. Each delivery includes one 8GB flash disk with videos, and a data platform is available to provide post-sale service via the Internet.
