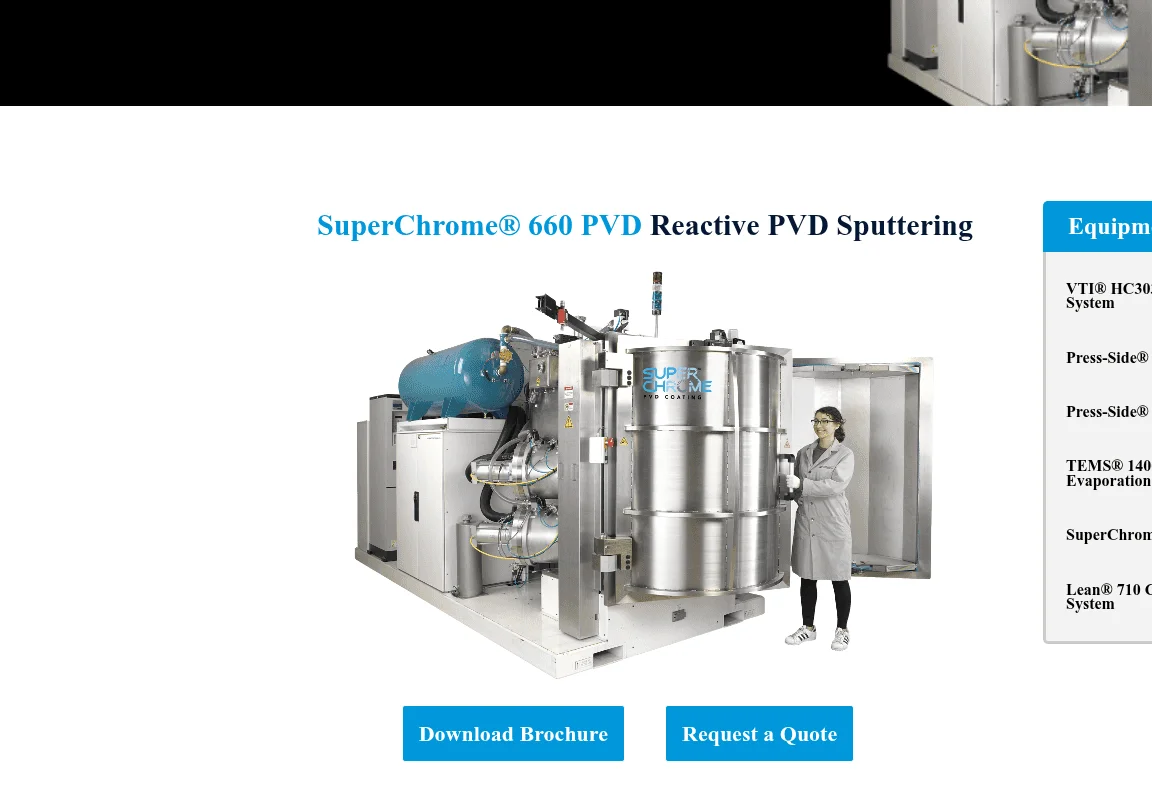

Vergason Technology, Inc.SuperChrome® 660 PVD Reactive PVD Sputtering

SuperChrome® 660 PVD Reactive PVD Sputtering

Vergason Technology, Inc.

Categories:
High Power Impulse Magnetron Sputtering Systems (HiPIMS)
Equipment view 1Equipment view 2

Model Overview

The SuperChrome® 660 PVD system is optimized for reactive sputtering of VTI’s proprietary SuperChrome PVD coating and is also capable of sputter deposition of chromium, aluminum, brass, copper, stainless steel, nickel-chrome alloys. SuperChrome PVD is a chromium based coating that provides a rich ch...

Technical Specifications

Electrical480V 350A 60Hz or 400V 450A 50Hz; 3 phase AC
Chamber Size1067mm diameter x 1575mm height
Coating ZoneApproximately 660mm diameter x 1220mm height
Cooling Water16-24 deg C Inlet 2.75bar (40psi) minimum pressure 208 lpm (55gpm) minimum
Compressed Air6 bar minimum (87psi); 9.4liters/second (20cfm) minimum
