5-axis CNC Grinding Machine – TG560 and TG580

Overview

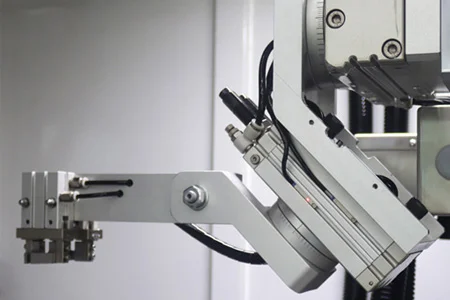

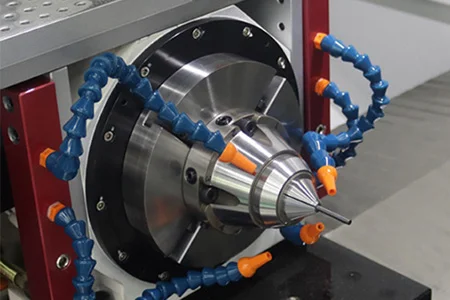

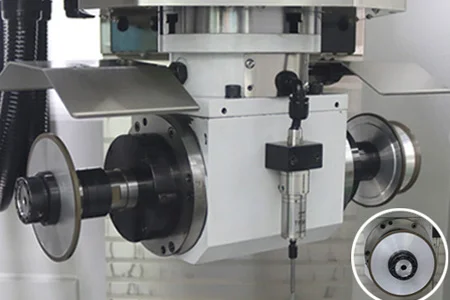

Model: 5-axis CNC grinding machine TG560 and TG580 developed by Ants Machine. Both models use SYNTEC 210MA-5E CNC control and ANTISHI programmed control interface. The machine structure includes components made from natural marble and a user-friendly human-machine interface is provided. Delivery covers Russia and CIS countries and the seller indicates 1 year warranty on equipment and 24/7 service availability. Both models employ a high-precision electric spindle and a grinding-wheel flange that accepts grinding wheels with diameters Ø50~Ø200 mm. The workpiece spindle uses a direct-drive (DD) system with NSK precision spindle bearings and Swiss SCHAUBLIN W25 chucks and pneumatic clamping components are available. Key motion and feedback components listed include YASKAWA servomotors, RENISHAW LPDD probe, HIWIN linear guides, and HEIDENHAIN encoders; the rotary A-axis is equipped with dual direct-drive DD and closed-loop control for high positional accuracy. Selected technical values (as provided): spindle power (electric spindle) TG560: 11 kW; TG580: 18 kW. Grinding wheel head rotational speed: 1000-8000 rev./min. Wheel head vertical travel (Z): TG560: 360(-100-220) mm; TG580: 350(-100-250) mm. Working travel X/Y/Z: TG560: X:460 / Y:400 / Z:360 mm; TG580: X:520 / Y:540 / Z:350 mm. Linear axis feed resolution: 0.001 mm. Power supply: AC 380V 50HZ 3 phase. Machine footprint TG560: 1700×1520×2100 mm, TG580: 2200×1600×2400 mm. Machine weight TG560: 4T; TG580: 5T. TG580 is described specifically as a five-axis CNC grinding machine designed for tool sharpening and is stated to be suitable for production or grinding of milling, drilling, forming and other tools. The machine’s grinding-wheel flange can be equipped with 2–4 grinding wheels simultaneously to support pre-grinding, finishing and sharpening operations. The machines can handle tool clamping and diameters given in the specifications: pneumatic collet range 3~20 mm and SCHUNK chuck range 3~32 mm, and achieve surface roughness of processed parts ≤Ra0,2 and radial runout of ground parts ≤0.005 mm, indicating use for high-precision tool grinding and finishing tasks.
