R5 KD 0025 A

Overview

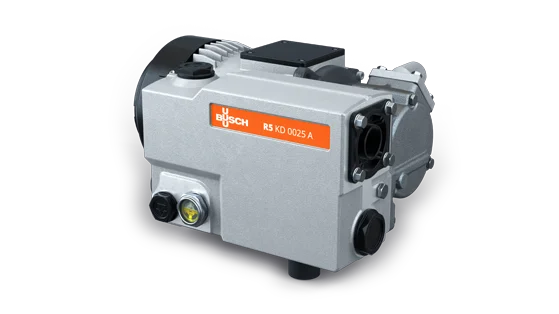

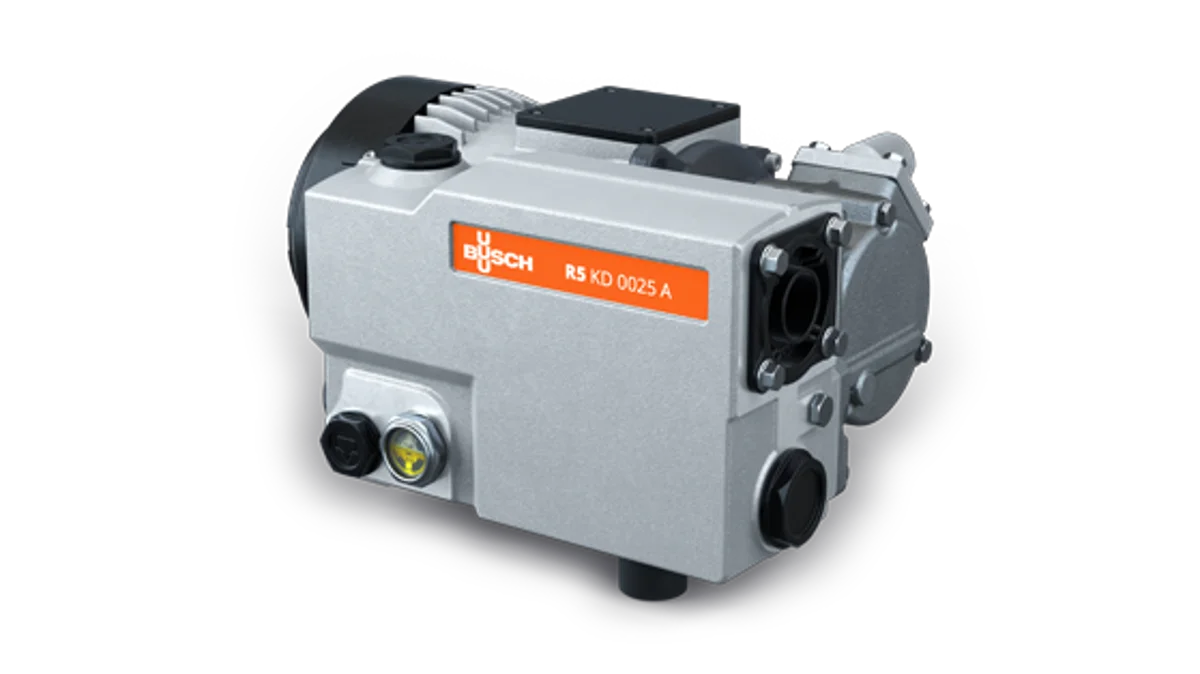

R5 KD 0025 A is an oil-lubricated rotary vane vacuum pump with a compact direct-drive construction, reduced height and weight, and is specially designed for table top packaging machines. The pump offers fast pump-down times, high vapor tolerance, excellent condensation protection and optimum temperature management; it features a fast service routine, long service intervals and a smooth surface design for easy cleaning. Technical specifications are provided for ISO 50 Hz, ISO 60 Hz and US 60 Hz for two separator variants named 'R5 KD 0025 A short separator' and 'KD 0025 A long separator'. - ISO 50 Hz — R5 KD 0025 A short separator: Nominal pumping speed: 22 m9/h; Ultimate pressure: 2.0 hPa (mbar); Nominal motor rating: 0.75 kW; Nominal motor speed: 3000 min; Sound pressure level (ISO 2151), KpA = 3 dB: 62 dB(A); Oil capacity: 0.3 l; Weight approx.: 21 kg; Dimensions (L x W x H): 339 x 235 x 180 mm; Gas inlet: G ½"; Gas outlet: G ½". - ISO 50 Hz — KD 0025 A long separator: Nominal pumping speed: 22 m9/h; Ultimate pressure: 2.0 hPa (mbar); Nominal motor rating: 0.75 kW; Nominal motor speed: 3000 min; Sound pressure level (ISO 2151), KpA = 3 dB: 64 dB(A); Oil capacity: 0.45 l; Weight approx.: 21 kg; Dimensions (L x W x H): 338 x 232 x 172 mm; Gas inlet: G ½"; Gas outlet: G ½". - ISO 60 Hz — R5 KD 0025 A short separator: Nominal pumping speed: 25 m9/h; Ultimate pressure: 2.0 hPa (mbar); Nominal motor rating: 0.9 kW; Nominal motor speed: 3600 min; Sound pressure level (ISO 2151), KpA = 3 dB: 67 dB(A); Oil capacity: 0.3 l; Weight approx.: 21 kg; Dimensions (L x W x H): 339 x 235 x 180 mm; Gas inlet: G ½"; Gas outlet: G ½". - ISO 60 Hz — KD 0025 A long separator: Nominal pumping speed: 25 m9/h; Ultimate pressure: 2.0 hPa (mbar); Nominal motor rating: 0.9 kW; Nominal motor speed: 3600 min; Sound pressure level (ISO 2151), KpA = 3 dB: 68 dB(A); Oil capacity: 0.45 l; Weight approx.: 21 kg; Dimensions (L x W x H): 338 x 232 x 172 mm; Gas inlet: G ½"; Gas outlet: G ½". - US 60 Hz — R5 KD 0025 A short separator: Nominal pumping speed: 14.7 ACFM; Ultimate pressure: 1.5 Torr; Nominal motor rating: 1.2 hp; Nominal motor speed: 3600 rpm; Sound pressure level (ISO 2151), KpA = 3 dB: 67 dB(A); Oil capacity: 0.32 qts.; Weight approx.: 46.2 Lbs. - US 60 Hz — KD 0025 A long separator: Nominal pumping speed: 14.7 ACFM; Ultimate pressure: 1.5 Torr; Nominal motor rating: 1.2 hp; Nominal motor speed: 3600 rpm; Sound pressure level (ISO 2151), KpA = 3 dB: 68 dB(A); Oil capacity: 0.48 qts.; Weight approx.: 46.2 Lbs. Declared markets and applications include Dairy for cheese production vacuum packaging. Fish farming applications listed are vacuum for transportation, vacuum packaging, pneumatic suction conveying of ice for cooling, extraction of slaughter waste, sorting of fish eggs, carton packaging and MAP packaging. Food Processing application listed is meat fillers, and Packaging applications listed are chamber machines table top, chamber packaging machines table top and cartoning machines.
