ESVM-AUTO
EBS S.r.l. (Elettrorava Balance Systems S.r.l.)
Model Overview & Specs
Overview

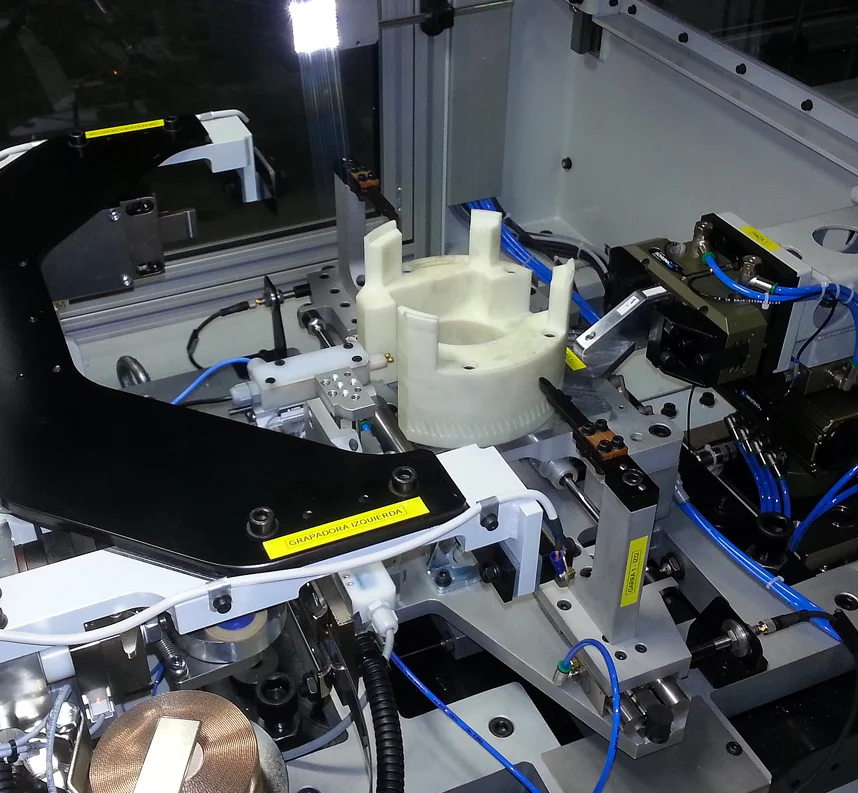

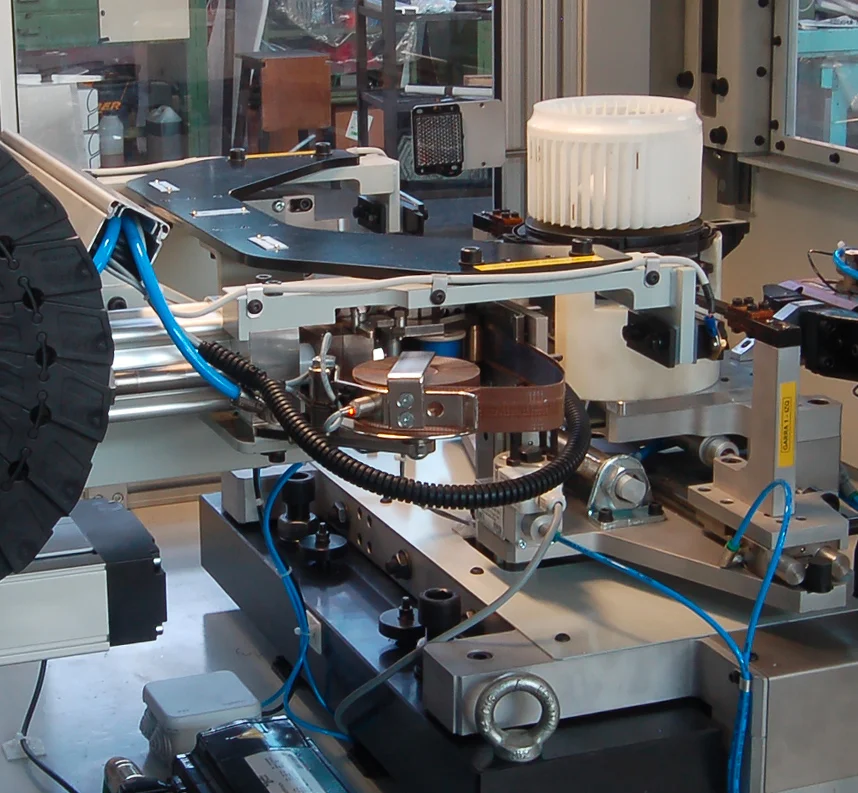

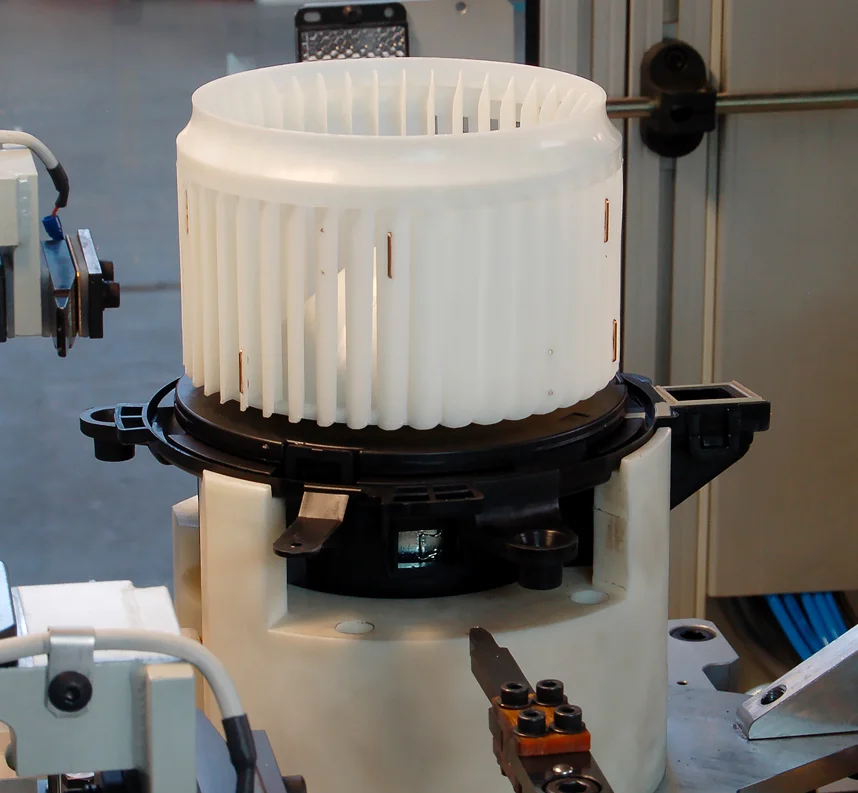

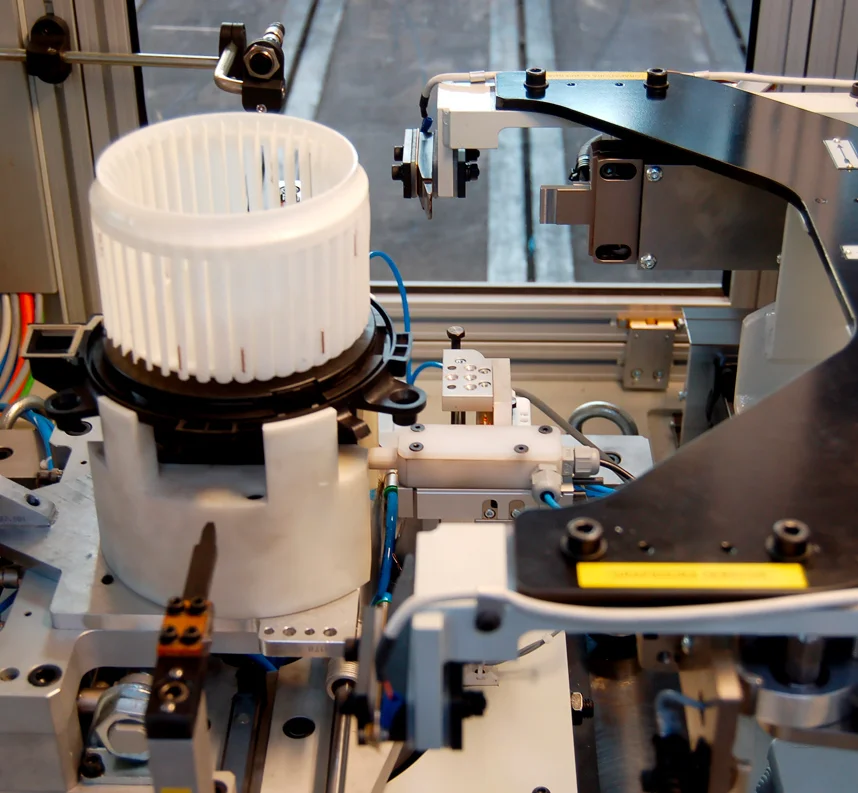

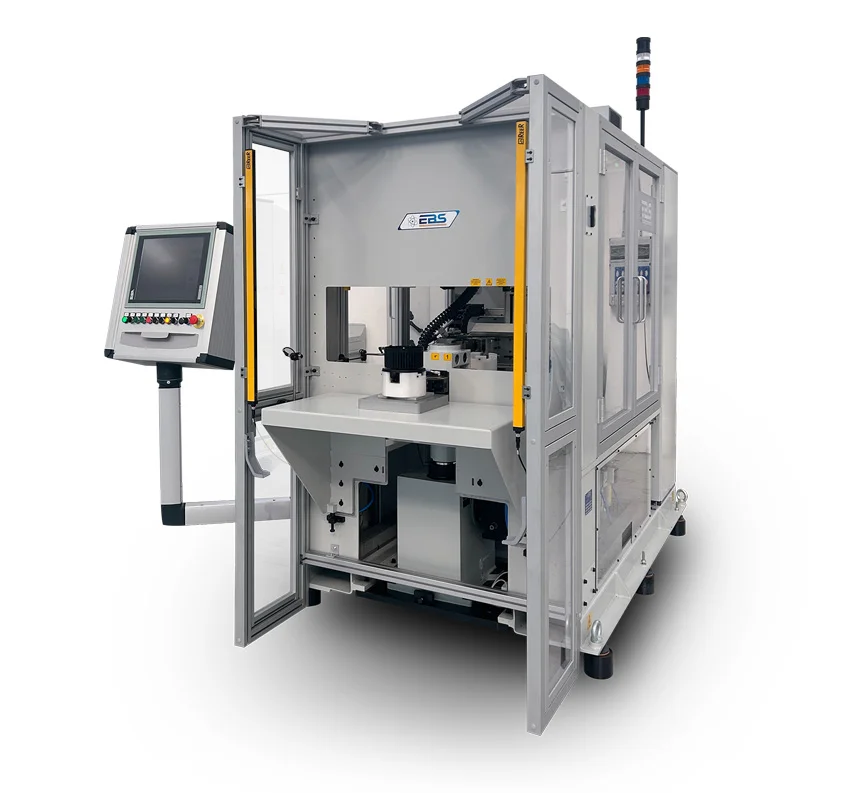

ESVM-AUTO is an automatic balancing machine for two-plane balancing of fans with their own drive. The machine provides automatic angular positioning and two weight-insertion units mounted on three controlled axes to place balancing weights on the blades. The system is built with two stations—one for balancing and one for loading/unloading—and an automatic manipulator transfers parts between the stations. Instrumentation includes the EQ21S-TS Touch-Monitor for operation, and the machine is equipped with protective guards for operator safety. Maximum rotor weight: From 0,5 to 5 kg; Maximum diameter: 160 mm; Balancing speed: 1000-3000 RPM. Explicitly described use case is two-plane balancing of fans that have their own drive. The product is categorized for electric fans, small rotors, and the automotive area, and it is a vertical-axis, fully automatic balancing solution. The two-station layout permits an operator to load and unload at one station while another part is being processed at the other, with an automatic manipulator handling transfers.
