VU Display

Overview

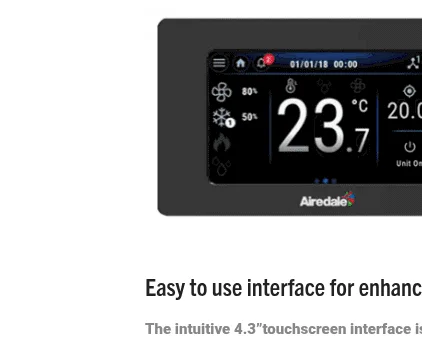

VU Display features an intuitive 4.3” touchscreen interface tuned to the needs of end users with familiar iconography described as clear, modern and bright. It includes gesture control that enables page navigation with a swipe, setpoint adjustments via a rotating control wheel, and scrollable data tables for displaying large amounts of system information efficiently. Visualization of dynamic and historical system information enables long term trend analysis; a user can overlay up to four trends using any combination of pre-set system variables and the entire trend and alarm log can be exported to USB media for archiving purposes. A colour coded LED bar provides an at-a-glance indication of operating status, and a built-in service terminal emulates the traditional LCD display found on other Airedale by Modine products to provide a separation between user and engineer environments and a responsive, aesthetic interface for day-to-day use. Provides an end-user interface more akin to a smartphone app through a 4.3” touchscreen and familiar iconography for enhanced usability during routine interaction. Gesture controls support intuitive page navigation, setpoint adjustments and browsing of large system information tables, while trend visualization and the ability to overlay up to four trends support long term trend analysis and system optimization; trend and alarm logs can be exported to USB for archiving. A colour coded LED bar supplies an at-a-glance unit status indication and the built-in service terminal provides a separate engineer environment for service-related activities.
